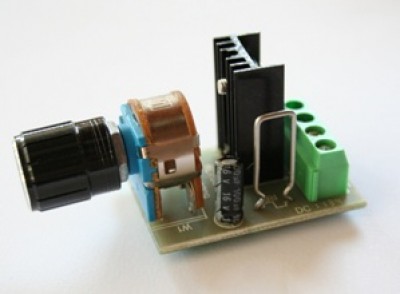

- Photo may represent series and not specific product
- SHARE
Single Channel PWM Dimmer Non-FAA PMA
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
Single Channel PWM (pulse wave modulation) dimmers are ideal for operating LED Light Strips and other interior incandescent or LED lighting, such as map lights, convenience, footwell or baggage compartment lighting. Features include reverse-polarity protection and over-voltage protection as well as an integrated on/off switch (in the fully counterclockwise position).
12 Volt DC (14VDC systems) version has 7 Amps of capacity (97W) 24 Volt DC (28VDC systems) version has 4 Amps of capacity (112W) Just 1.25” x 1.6”. Shaft diameter is 17/64” (6.75mm) Screw-down terminals for easy connection of input and output wires Powerful enough to operate a wide range of lighting products High-quality push-on knob. Shaft length accommodates panel widths to 5mm. |
Reviews
Will install it soon.
Verified Purchase
Single Channel Pwm Dimmer 24V
Exactly what I hoped it would be from the description. Works much better than the previous rheostat dimmer
Verified Purchase
Single Channel Pwm Dimmer 24V
Frequency is too slow. Lights flicker. I would not recommend this product. I am very disatissfied
Verified Purchase
Single Channel Pwm Dimmer 12V
I have had very good luck with this dimmer controlling a vertical compass and a MGL V6 radio and a Garmin GMA240 audio panel. It does what it is suppose to. Installed in a Vans RV7 2 years ago.
Small, easy to instal but seems not as progressive as wanted. But efficient
For instruments and night lights Should work well
I gave this product two stars because I purchased two of them and only one worked. I would not purchase this product again, nor would I recommend it.
Thus dimmer was a disappointment. Leds flicker when in use. Led brightness is poor until your at mid range the full brightness happens quickly so very poor control of illumination. Due to the flicker Ill be pulling this unit out and tossing it in the garbage. Very poor quality.
Installed on Airplane, never taught that could interfere with WAAS GPS, when transmitting with coms around 121 Mhz, no power to led (knob close), I was loosing GPS signal, disconnected device and problem solved.... Be aware
Not working properly with LEDs. It will not give light until mid range, then give full intensity and will turn on and off by it self.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier: Yes, usually - it depends on the radios and the type of circuit controlling the back lighting.
1.25 x 1.6. Shaft diameter is 17/64 (6.75mm)
This unit does not have an OFF detent. When the dimmer is turned off, the power is not cut off completely, a separate switch would be required.
No, these dimmers are not FAA approved. Intended for use in experimental aircraft only.
There is no distinct switch that is separate from the knob, although turning it all the way will go past the "switch" and turn it off. A gently turn past the notch the other way turns it back on.
1/4 inch.
