Start Pac Mini Portable Power Supply Model 53025 - 24V
MFR Model# 53025/24V MINI
Overview
|
This Start PacŪ Portable Power Supply is a 24 Volt output unit and is ideal for powering up aircraft cockpits. GPS programing and other aircraft systems can be easily powered up by bypassing the aircraft battery to save it for engine starting.

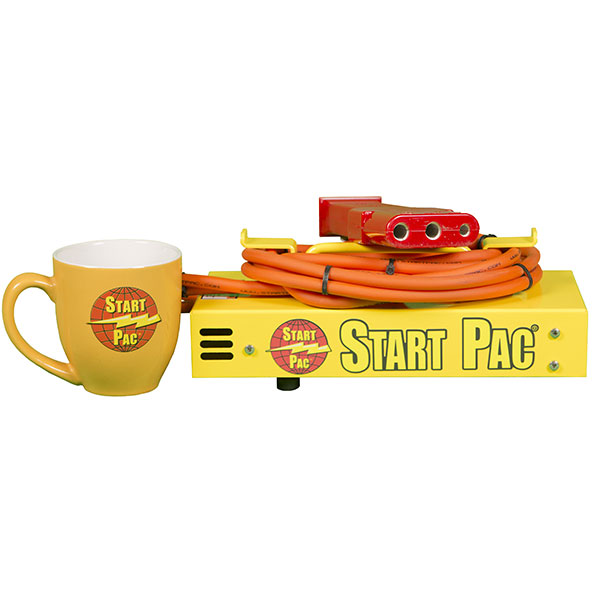

The Start PacŪ Portable Power Supply model 53025/24 is designed to power up 24 Volt aircraft systems. The voltage output is set to 28.5 Volts to simulate the same voltage as when the aircraft is running under power. Maximum amperage output is 25 amps which is adequate for most light aircraft. If overloaded, the 53025/24 will trip off and reset itself after a short period of time. This unit is ideal for powering up new and old aircraft with glass cockpits. Note: This unit is NOT designed for engine starting or battery charging. Note: Cup pictured as scale reference only. Cup not included with product. |
Features
- When utilizing the 53025/24, the entire aircraft electrical system can be powered up for GPS programming and electrical maintenance. Thus the on board aircraft battery can be saved for starting.
Specifications
| Maximum Continuous Current output | 25 A |
|---|---|
| DC voltage output | 28.5 VDC |
| AC voltage input | 90 - 240 VAC |
| AC current input at maximum DC power output | 7 A @110VAC 3.5 A @220VAC |
| Phase | Single |
| Forced air-cooling | Yes |
| Over current protection | Yes |
| Over voltage protection | Yes |
| Over temperature protection | Yes |
| Complete weight with aircraft cables | 7lbs / 3kg |
| Dimensions Length x Width x Height | 113/4″ x 5″ x 4″ (30 x 13 x 10 cm) |
Benefits
- Do not use for starting as starter motors require far more amperage than is available from the Start PacŪ Portable Power Supply. This unit will operate on 110/220Volt AC input.
- Not for battery charging.
- Do not cover or enclose this Start PacŪ when using, as this will inhibit airflow needed for cooling purposes.
- Use a minimum of 12# wire size for the AC extension cord.
- This Start PacŪ Portable Power Supply is a 24 Volt output unit.
Reviews
Product exactly as described, no issues whatsoever.
Verified Purchase
Start Pac 53025-24 Mini Power Supply 24V 25Amp
Verified Purchase
Start Pac 53025-24 Mini Power Supply 24V 25Amp
While I have only had the opportunity to use the power supply once, it worked splendidly! Sadly, mine did not come with a coffee cup :(
Verified Purchase
Start Pac 53025-24 Mini Power Supply 24V 25Amp
Verified Purchase
Start Pac 53025-24 Mini Power Supply 24V 25Amp
Easy to use and works has expected.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier: Yes, the 53025 (24V) is the correct unit for the SR22 and the aircraft connector will fit.
This is a power supply that is not made for starting the aircraft. This Start Pac 53025 is used to power up the avionics while the aircraft is off.
This unit must be plugged into AC power 100-240 VAC, 11 amps.
