Christen 802 Oil Drain Valve

$577.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 08-06745
MFR Model# 802

Overview

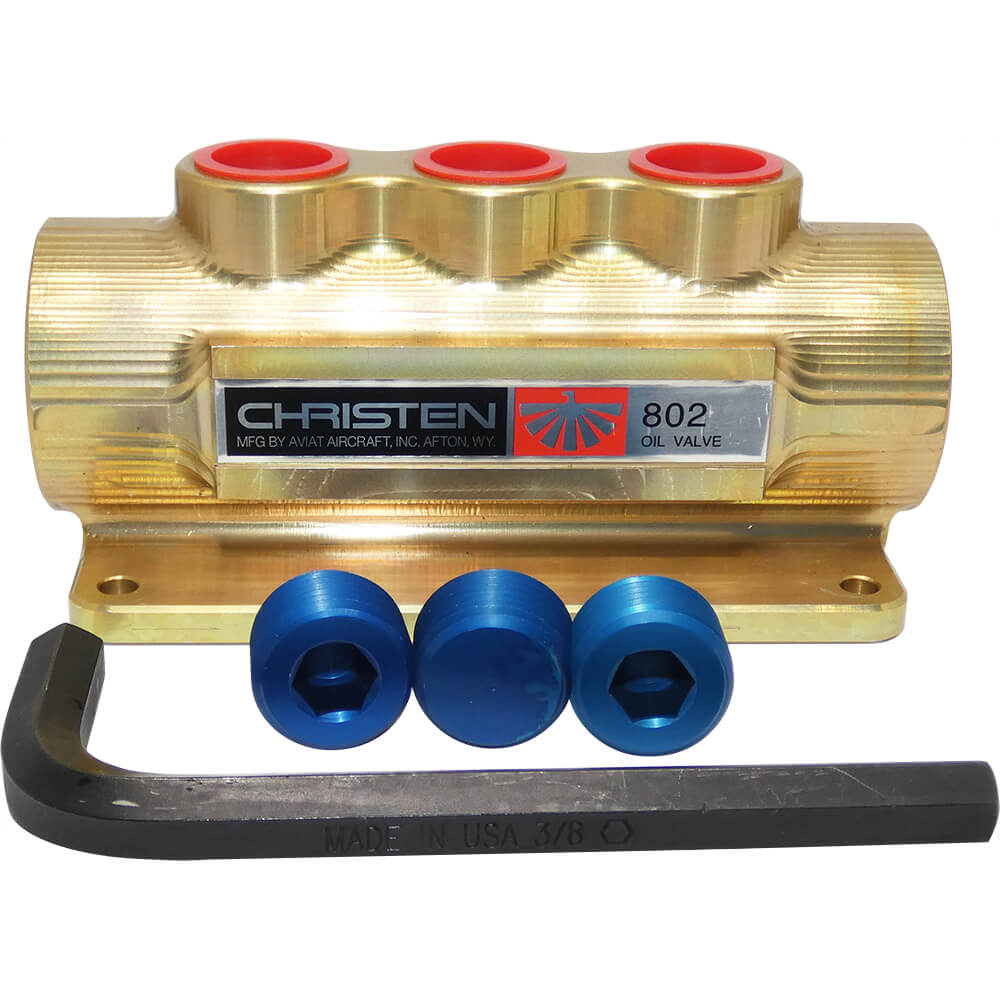

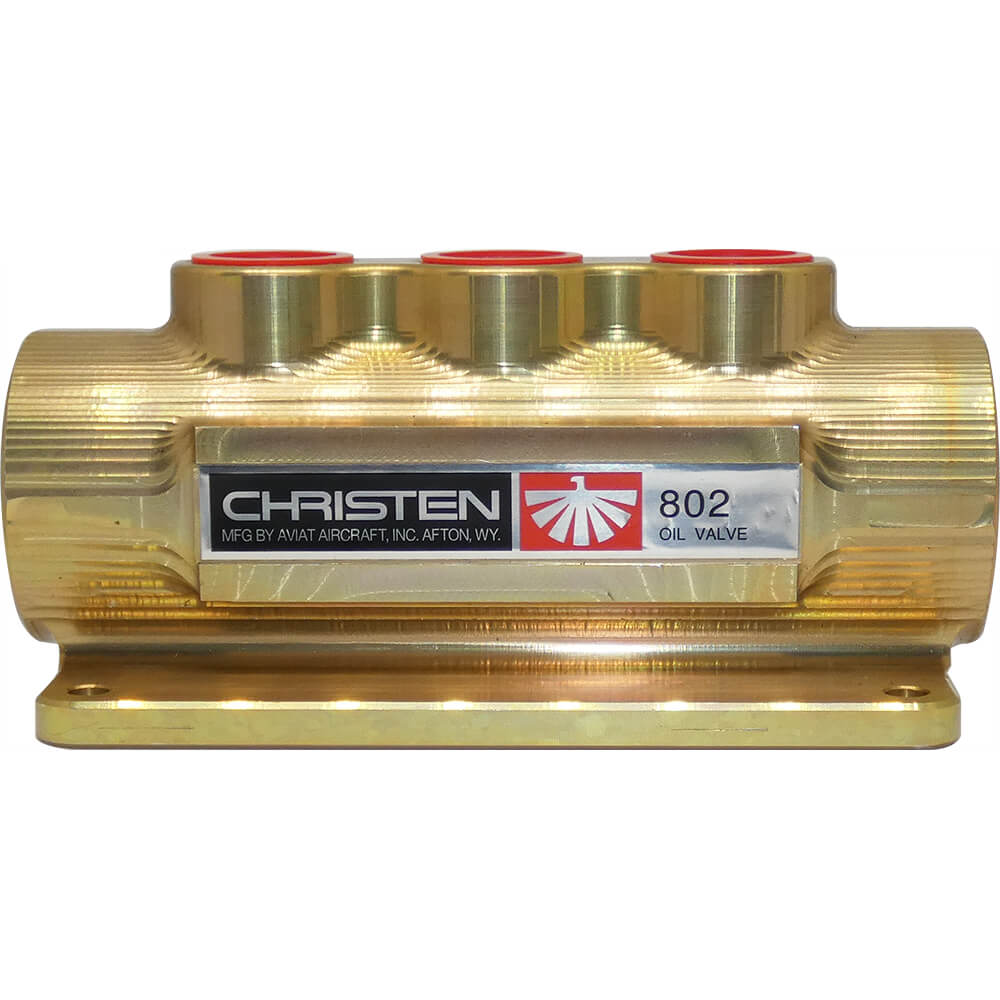

Note: Unit now comes in a gold cast finish, not in the epoxy white shown in the picture

Christen 802 oil valve is a multiple port gravity operated ball valve. Cast aluminum w/textured white epoxy enamel finish & all internal steel parts are cadmium plated. Normally installed on firewall or engine mount. Designed for fittings to be installed at side, front or both. Req. 3 AN816-10D nipples for hose connection. Wt.1.75 lbs. installed.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you tell me the reference for the O-RING included in this part?

There is an o-ring in the body of the assembled unit. The Aviat part number is 50004-027.
