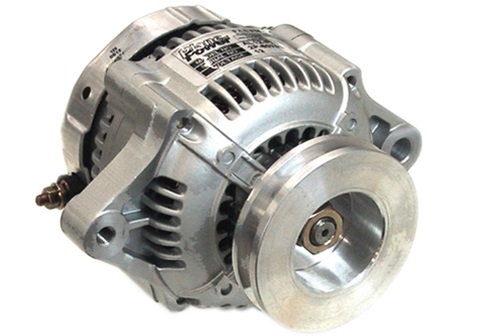

Plane Power Alternators Only - Without Mounting Kit
| Alternator Only Part | Kit Reference | PN | Price | Buy |
|---|---|---|---|---|
| 10-1050-1 | AL12-70, AL12-P70 | 07-18054 | $1303.50 | |
| 10-1051 | AL12-C60, SAL12-70, TAL12-70 | 07-17756 | $1204.50 | |
| 10-1050A | AL12-F60 | 07-17757 | $1254.00 | |
| 10-1050C | AL12-F60C, SAL12-70C | 07-17758 | $1204.50 | |
| 10-5050A | AL24-F60 | 07-17760 | $1292.50 | |
| 10-5050B | AL24-FS60 | 07-17761 | $1292.50 | |
| 10-5050C | AL24-F60C, TAL24-70C | 07-17762 | $1273.80 | |
| 99-1012 | AL12-EI60-L, AL12-EI60/B, AL12-EI60/C | 07-18016 | $1721.50 | |
| 15-1014 | ER14-50 | 07-19404 | $2194.50 |
Overview
|
Note: Plane-Power alternator only products do not include the required mounting hardware. First time installers must purchase Plane-Power alternator kit.
An alternative to high-priced, marginally-performing, rebuilt used replacement aircraft alternators. Plane-Power alternators are the product of years of research, development and intensive testing. Each component has been engineered, developed, tested and re-tested exclusively for use in general aviation aircraft. As a result of these efforts, Plane Power alternators offer significant improvements over legacy aircraft alternator offerings including:
• Generate significantly less heat while producing rated power • Generate rated power at typical aircraft cruise RPMS • Vastly improved balancing drastically reduces bracket failure • Greater reliability for significantly increased service life • Weigh up to four pounds less |
Core Return Policy
Any unit being returned for core or warranty core credit shall be, as removed from the engine, complete and not disassembled. No core or warranty core credit will be allowed for automotive units. Units that are rusty or cannot be overhauled for any reason will be classified as scrap, having no value. Units which have been weld repaired, as well as units which have been disassembled and then reassembled with old parts, will also be classified as scrap, having no value. A percentage of the core value will be charged for all missing or damaged parts. At no time will the damaged or missing parts charge on any unit exceed the core value of that unit.
1. Core will only be accepted for credit 12 months from date of invoice.
2. Cores returned in excess of cores invoiced will not be accepted.
3. Cores must be of like purchase, a directly superseded unit or replaced unit when installing an STC'd product.
4. Competitive product cores are acceptable returns.
5. Cores must have a legible data tag for part and serial number verification.Note: Customer will need to provide core for overhaul in the event our supplier does not have cores available to overhaul.
Documents
Reviews
Good unit and per the description.
Verified Purchase
Plane-Power Hartzell Alternator 99-1012
5 star
Verified Purchase
Plane-Power Hartzell Alternator 99-1012
Expensive. Seems to work. Hope it lasts longer than the 343 hours of its predecessor.
Verified Purchase
Plane-Power Hartzell Alternator 99-1012
Never seen anything so over priced
Verified Purchase
Plane-Power Hartzell Alternator 99-1012
Verified Purchase
Hartzell Plane Power Alternator Only 10-5050C
The alternator works great but be advised that you probably need the entire kit if you are retrofitting this for an OEM alternator. I called Hartzell for clarification and they said this would be a direct replacement for my Cardinal. It is not! I had to order the bracket and hardware that come in the kit and ended up spending more money in the end.
Verified Purchase
10-1050A Hartzell Plane Power Alternator Only
We have replaced all of the old generators and alternators in our fleet, 15 planes, with this alternator. It has been over three years since we have had to replace one.
Verified Purchase
Hartzell Plane Power Alternator Only 10-5050B
Time will tell but hopefully this will permanently end the all too frequent occurrence of alternator failure! Have installed a couple of these and in each case some mods had to be made to the bracket. Example is my plane had a 3/8 pivot bolt and the PP alternator is configured for a 7/16 bolt. We had to get a bushing and also several bushings were required to space it properly for belt alignment. Not sure if all of that is in the optional install kit or not. Also in one case the standard drive belt was too short by about one inch. otherwise alternator seems well-built.
Verified Purchase
10-1050A Hartzell Plane Power Alternator Only
Good product I hope! Previous one burned out after 400 hours. Hope this one last longer!
Verified Purchase
10-1050C Hartzell Plane Power Alternator Only
Direct replacement for alternator that came in Van’s firewall forward kit. Van’s did not have any in stock, Spruce did and it works great.
Verified Purchase
Plane-Power Hartzell Alternator 99-1012
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
For example, the 10-1050 (07-17755) alternator is externally regulated. You can use the P/P R1224 or R1224B regulators, both of which are 12 or 24 volt depending on how you have them configured.
No. This alternator does have a built in noise filter.
Yes, it is.
No these require a regulator.
