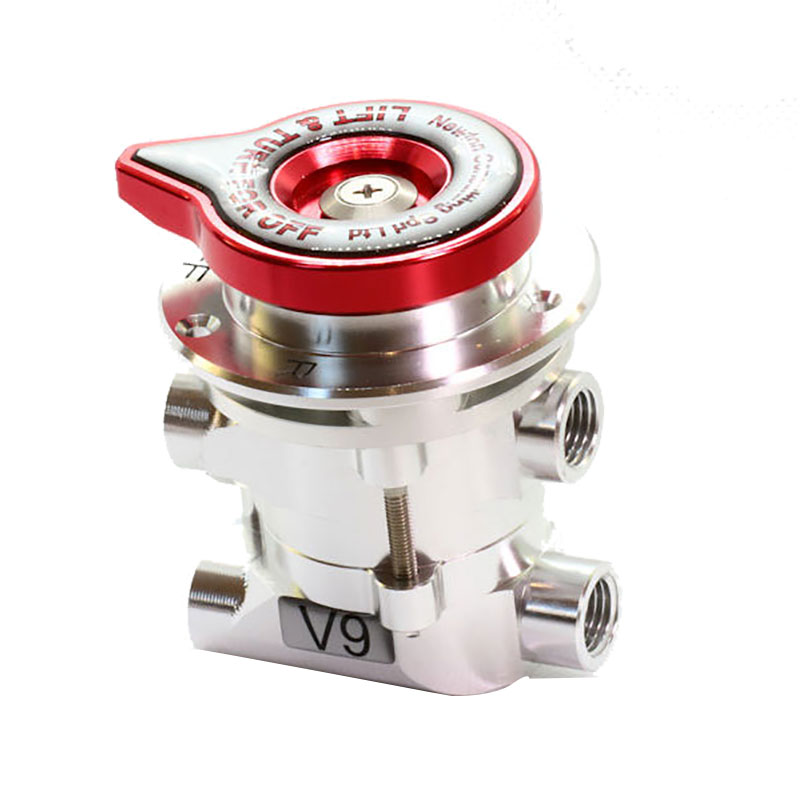

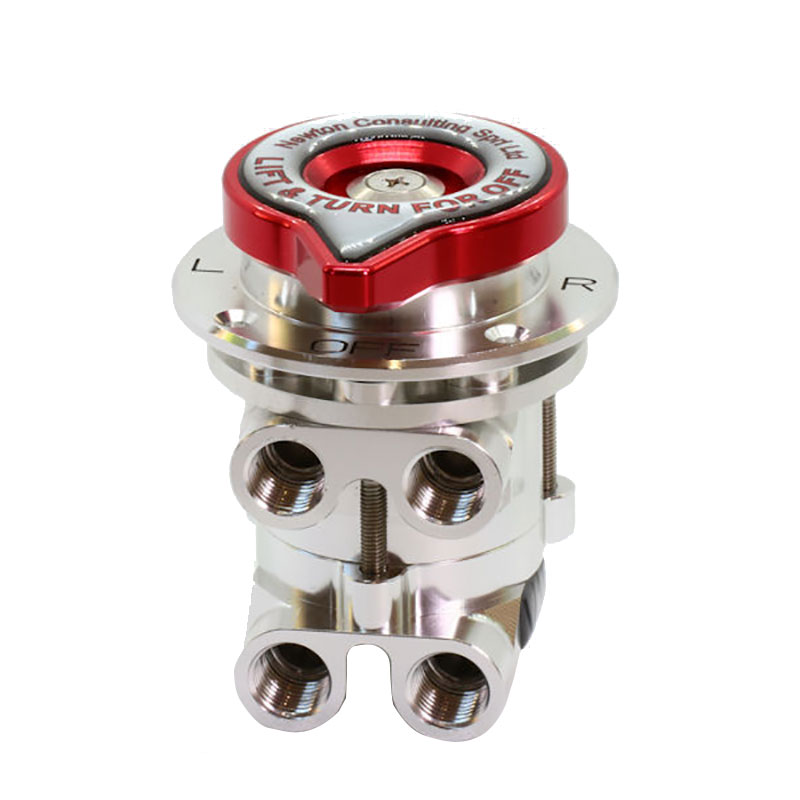

Newton V9-4P Four Way Duplex Valve
MFR Model# V9-4
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
|
SPRL V9-4-P duplex valve with ceramic disc valves for feed and return.
It is tapped 1/4″nps feed and return and will take standard npt fittings and our -6 banjos. V9-4-P can carry the small selector plate 54mm in diameter or the standard plate @70mm interchangeable with other valves and other types. V9-4-P is perfect for any low pressure return system. The SPRL Valves, as designed, have a very nice 'feel' and are logical in use, however, there is a requirement in FAR 23 whereby the fuel valve must be turned from OFF to an ON selection simply by turning it, i.e. it should not have to be lifted up, pushed down etc, and it should also not be possible to turn it from an ON position to OFF without a dent. |
Documents
- V9 & V10 Introduction (PDF)
- V9 Fuel Comparison (PDF)
- V9 Duplex A5 Installation Sheet (PDF)
- V9 Duplex External (PDF)
- V9/V10 Installation Sheet (PDF)
Reviews
Appears to be a very well built valve. Haven’t run it yet but it feels smooth and will work well with my EFII system.
Verified Purchase
Newton V9-4 Four Way Valve Inclues Off
The V9 and V10 are designed to fit in a narrow space with in line lines using AN-6 nipples part 05- 06926. For supply from the sides or underneath we suggest a banjo fitting, 05- 06474 as there is not room for two elbows.
Two inlet holes are designed with too short distance. The shape of the fittings are very limited. This valve is not so practical as as the price.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes. It does have a both option.
No fittings are included with the valve, ports are tapped 1/4 nps and will accept 1/4 npt.
