Tanis Heli Preheat Kit R44 With Adhesive - 115V

$2911.70/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 05-14813-1
MFR Model# TA2778-1

Overview

Heli-Preheat Kit – Robinson R44 – 115V Standard (CHT wells not required).

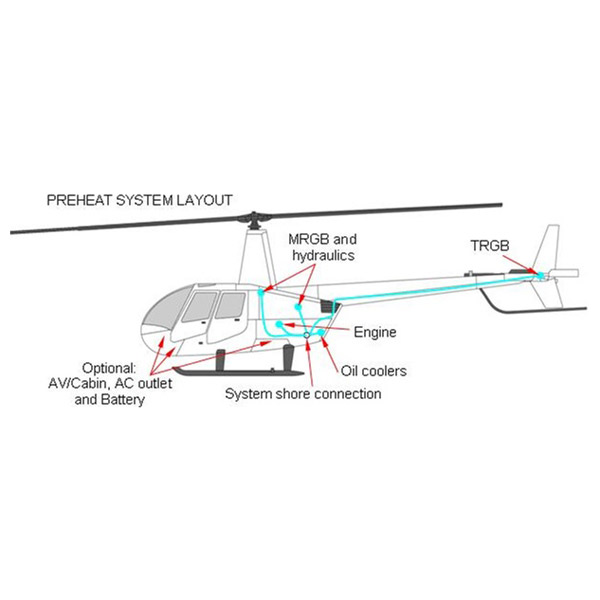

Preheat is applied through electrical resistance heat elements located in each cylinder assembly, on engine crankcase and oil sump/tank, main and tail rotor gearboxes, and hydraulic reservoir, preheat critical components, oil, and attached accessories. Power is routed to the elements through a dedicated wiring assembly with circuit overload protection and power indicator light. System is self-regulating through design. Heated components reach an average state of thermal equilibrium in approximately six hours.

Known Engines: O-540-F1B5 , IO-540-AE1A5

This preheat kit when installed will supply 633 watts with a 5.5 amp draw at 115 volts.

Specifications

  • Heli Manufacturer: Robinson
  • Cylinder Piston/Radial: 6
  • Helicopter Cylinders: 6
  • Engine Manufacture: Lycoming
  • Voltage: 115V
  • USA-Cert (8130-3 available) PMA Kit (Yes)

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
