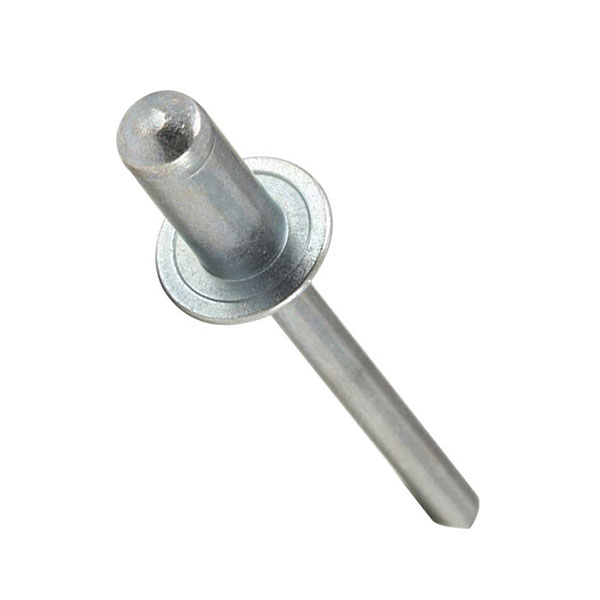

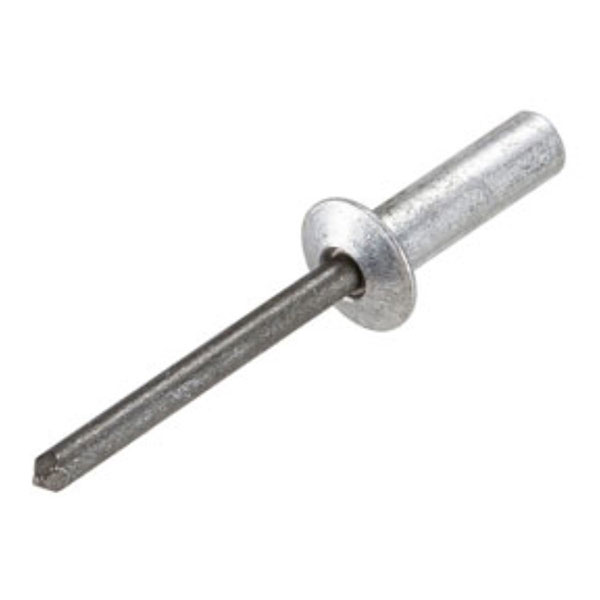

Ad42H Closed End Dome Head Rivet
MFR Model# AD42H
Overview
| Closed End AD42H Blind Rivet; 1/8 Inch (0.125 Inch), (0.063 - 0.125 Inch Grip), Dome Head, Aluminum/Steel, Plain |
Features
- Unit of Measure: Inch, 1/8 Inch Diameter, 0.125 Inch Decimal Equivalent, 0.063 Inch (1.60mm)
- Minimum Grip, 0.125 Inch (3.18mm)
- Maximum Grip, 0.063 - 0.125 Inch (1.60 - 3.17mm) Grip Range, Dome Head, Aluminum Body Material,
Specifications
- Drill Size: #30
- RoHS 3 Compliant: RoHS 3
- OEM Unit Of Measure: Unified
- Body Material: Aluminum
- Style: Closed End
- Manufacturer Part#: AD42H
- RoHS Compliant: Yes
- Body Finish: Plain
- Material Detail: Aluminum 5056
- Finish Detail: Plain
- Fractional Diameter Size [Unified]: [1/8]
- Head Height [Unified]: [.041]
- Grip Range [Unified]: .063-.125
- Head Height [Metric]: [1.04]
- Tensile Strength Lbf. [kN.]: 385 [1.71]
- Grip Range [Metric]: 1.60-1.60mm
- Mandrel Finish: Coated
- Head Type: Dome
- Mandrel Material: Steel
- Shear Strength Lbf. [kN.]: 305 [1.36]
- Fastener Diameter (Nom) [Metric]: [3.17]
- Mandrel Diameter (Nom) [Unified] mm: [0.064] 1.63mm
- Minimum Grip [Unified] mm: [.063 ] 1.60mm
- Maximum Hole Size [Unified] mm: [.133] 3.38mm
- Maximum Grip [Unified] mm: [.125 ] 3.17mm
- Minimum Hole Size [Unified] mm: [.129] 3.28mm
- Head Diameter [Unified]: [.236]
- Head Diameter [Metric]: [6.00]
- Body Length (Nom) [Unified] mm: [.301]7.645mm
- Fastener Diameter (Nom) [Unified]: [.125]
- Type: Blind Rivets
Reviews
Verified Purchase
Closed End Dome Head Rivet AD42H
Perfect, just what I ordered
Verified Purchase
Closed End Dome Head Rivet AD42H
Good service, good product, good price
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, these are not supposed to allow water to pass through.
