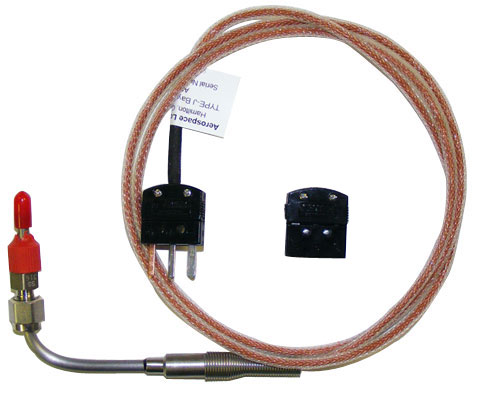

Bayonet Probe CHT Kit A200-TCB
MFR Model# A200-TCB
Overview
|
The A200-TCB thermocouples are Type-J ungrounded, fast response CHT thermocouple probe kits.
Using a 316 stainless steel sheath these probes have been designed and tested for continuous operation exceeding 1150ºF! The insulation shield is a non-vitrified high purity magnesium oxide (MgO). Superior resistance to oxidation attack results from a tenacious and protective high temperature film that does not affect the stability of the thermocouple alloys. This film permits the sensor to be used at ultra-high temperatures for prolonged periods with improved accuracy over other available sheath materials. The probes are supplied with a 90º insertion bend but this can be reformed in the field based upon the specific installation. It is then fused to the thermocouple conductor in a precision transition junction that protects the connection under all environmental conditions. Finally the measured potential is carried to the instrument using high temperature Teflon™ insulated thermocouple wire that can endure temperatures up to 500ºF. The thermocouple wire is encased in a FAR 25 approved Flexo Teflon™ expandable sleeving which used in electronic and mechanical applications when chemical resistance and very high temperature resistance are significant factors. The properties of Teflon™ make it the ideal choice for applications where high temperature, low outgassing, flame and chemical resistance are critical. The connectors have a simple snap connection mechanism that allows easy removal and reattachment while retaining complete junction integrity. When installed in accordance with the approved instructions and as part of a qualified instrument system, this thermocouple is STC'd as a primary replacement. For use with all Aerospace Logic cylinder head instruments. |
Kit Includes:
- CHT probe with 4' twisted shielded leads and male shielded thermocouple connector
- 3/8" - 24 bayonet compression fitting (fits all Lycoming and Continental)(excluding 0-200 and 0-300) engines
- Female polarized and shielded connector for connection to instrument harness
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This has the weight of 0.4 lbs approx.
