Davtron Engine Cooling Gauge Model 307CD & FD

From $448.00 to $448.00
Prices below incude GST
Description PN Price Buy

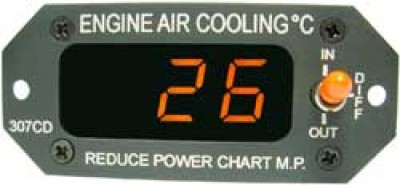

MODEL 307CD CELSIUS DIFFERENTIAL INTERCOOLER GAUGE WITH MINI TEMP. PROBE INCLUDED
10-03318
$492.80
Quantity

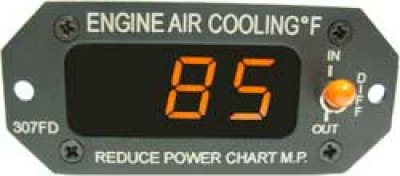

MODEL 307FD FAHRENHEIT DIFFERENTIAL INTERCOOLER GAUGE W/ MINI TEMP. PROBE INCLUDED
11-05882
$492.80
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Davtron M307FD-CD Features:

  • Minimum panel space
  • Light weight
  • Automatic dimming
  • Miniature remote probe
  • LED display
  • Engraved Faceplate
  • Centigrade
  • Fahrenheit
  • FAA - PMA


Download M307FD-CD Brochure

Davtron FAA PMA # PQ1062NM

Installation

  • Davtron Inc. recommends that you purchase our products through your local avionics shop and have them do your installation. They know how to handle all the log book entries you need for FAA approval.
  • FAA/PMA Approvals
  • Piper Aircraft Models PA-28-201-T, PA-28R-201T, and PA-28RT-201T
  • Download FAA 337 Form

Specifications

  • Temp. Range: 307CD -65°C to +150°C Accuracy ±1% of full scale
  • Temp. Range: 307FD -70°F to +290°F Accuracy ±1% of full scale
  • Input Voltage: 12 and 30 Volts
  • Input Current: 150 mA max.
  • Operating Temp.: -25°C to +60°C
  • Weight: 4 ounces
  • Warranty: 1 year

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
