Falcon 3-1/8 Altimeter AltN10Mbf-3
MFR Model# ALTN10MBF-3
| Gauge Size | Model No. | Part No. | Range |
|---|---|---|---|
| 3-1/8" | ALTN10MBF-3 | 10-02252 | 10,000 ft, Millibars |
Overview
|

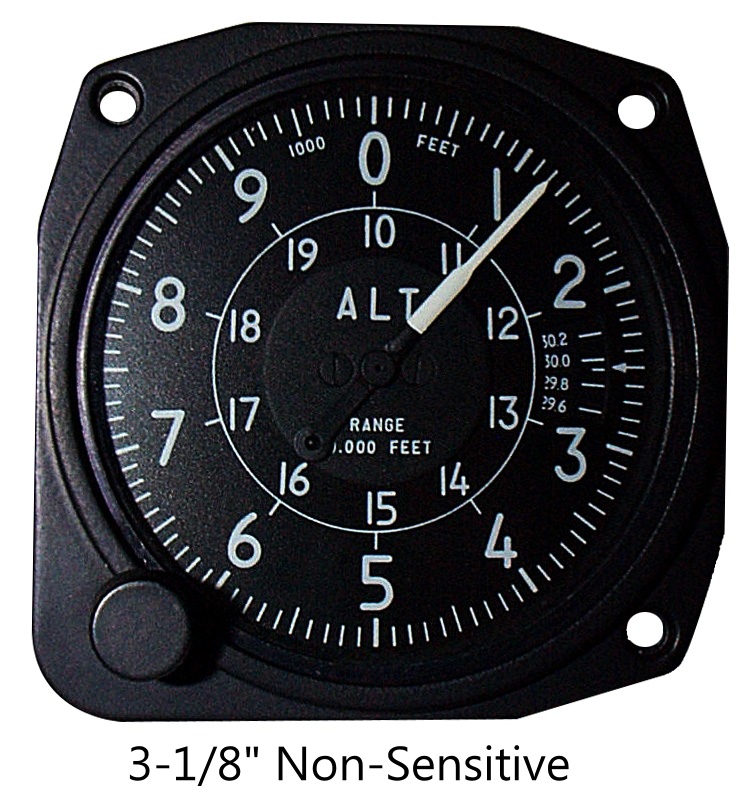

Falcon light weight altimeters feature a non-sensitive altimeter on a 3-1/8", single pointer, and a barometric window. A setting knob allows the pilot to set the barometric reading to the correct field elevation or barometric pressure setting. They are weight conservative, economical, yet very precision and accurate instruments that provide excellent altitude measuring capabilities; designed for ultra-light airplanes. 3-1/8" is non-sensitive. Standard Types are either feet reading with barometric window inches of mercury or millibars reading; or meters reading with barometric window millibars reading. Length: 2-3/8". Weight: 10.7 oz Made in China |
Additional Images
Part No. 10-05100
Part No. 12-03422
Part No. 12-02251
Part No. 12-02252
Reviews
👍👍👍
Verified Purchase
Falcon 3-1/8 Altimeter AltN10Mbf-3
👍👍👍
Verified Purchase
Falcon 3-1/8 Altimeter AltN10Mbf-3
I purchased this altimeter from Aircraft Spruce. The order was executed in a timely manner by retailer, and I give 5 stars rating to Aircraft Spruce. However the instrument came with no instructions. It has a hard plastic connector at the back, with no instructions on how the static tube is to be connected. And the connection is not even intuitive. It requires a special adapter which was not supplied. I dont even know what adapter to order. Many home-builders are not professional mechanics. A one page instruction sheet giving some basics of how to set up the instrument is an absolute minimum for any unit for which I pay $ 215.00. So The manufacturer gets 1 star rating.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, this gauge does not have built in lighting. To add this you will have to buy a lighting ring for this like the UMA or Nulite.
Yes, these mechanical altimeters require a static source. This can be built into a pitot tube or onto the fuselage of the aircraft but varies from airplane to airplane.
It is pressure sensitive instrument and cannot leak.
