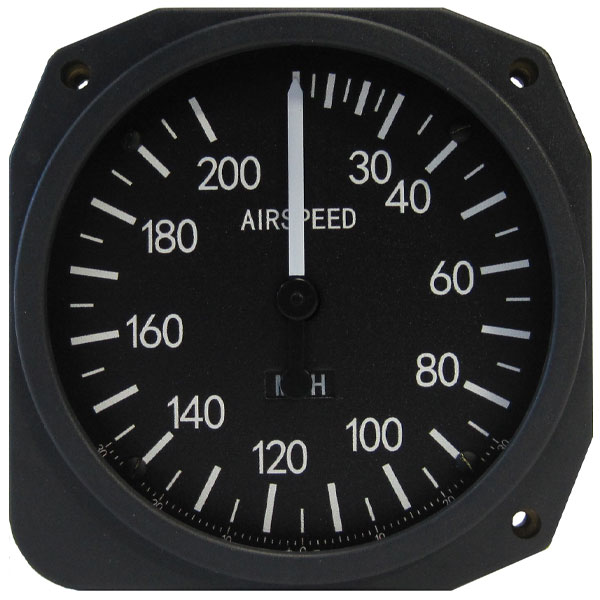

Swift Airspeed Indicators 3 1/8 Inch mph /Kph/Knots

0 Reviews 0 Answered Questions
From $281.95 to $576.00
Prices below incude GST
Main Image
Main Image
Model Number Description Remarks Part Number Price Buy
ASI3-800-80 MPH/KPH/KnotsUnit Switchable
10-06310
$350.90
Quantity
ASI3-1000-100 MPH/KPH/KnotsUnit Switchable
10-06298
$310.15
Quantity
ASI3-1200-120 MPH/KPH/KnotsUnit Switchable
10-06299
$463.10
Quantity
ASI3-1400-140 MPH/KPH/KnotsUnit Switchable
10-06300
$460.90
Quantity
ASI3-1500-150 MPH/KPH/KnotsUnit Switchable
10-06301
$424.60
Quantity
ASI3-1600-160 MPH/KPH/KnotsUnit Switchable
10-06302
$310.15
Quantity
ASI3-1800-180 MPH/KPH/KnotsUnit Switchable
10-06303
$458.70
Quantity
ASI3-2000-200 MPH/KPH/KnotsUnit Switchable
10-06304
$633.60
Quantity
ASI3-2200-220 MPH/KPH/KnotsUnit Switchable
10-06305
$462.00
Quantity
ASI3-2400-240 MPH/KPH/KnotsUnit Switchable
10-06306
$310.15
Quantity
ASI3-2600-260 MPH/KPH/KnotsUnit Switchable
10-06307
$462.00
Quantity
ASI3-3000-300 MPH/KPH/KnotsUnit Switchable
10-06308
$310.15
Quantity
ASI3-4000-400 MPH/KPH/KnotsUnit Switchable
10-06309
$487.30
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Patent product, Integrates the highly reliable MEMS sensor Precise, Durable, Accurate (reading), free from frequent regular calibration
  • Launched a unit (MPH/KPH/KNOTS) switchable airspeed indicator, in order to simplify manufacturing specification and stocking range;
  • Accurate reading within low airspeed range, evenly allocated scale on the rest of the scale;
  • Zero adjustable: just one button, the zero error introduced by weather and dynamic-static system pressure difference can be eliminated ;
  • Error correctable: the airspeed adjustment function can eliminate errors introduced by the location, aging or limited efficiency of pilot tube. The adjustment is within ± 30% of the reading, from 0.7 to 1.3. The errors from airspeed system of plane are then removed. Apart from airspeed scale, the scale for correction coefficient can be found on the dial, at the bottom edge.

Specifications

  • Size: 3 1/8"
  • Install Depth: 96mm
  • Wide voltage supply range: 9-30 VDC
  • Weight: ≤380g
