Vertical Speed Indicators 3 1/8 Inch

From $192.75 to $419.00
Prices below incude GST
Model Number Description Remarks/Depth Part Number Price Buy

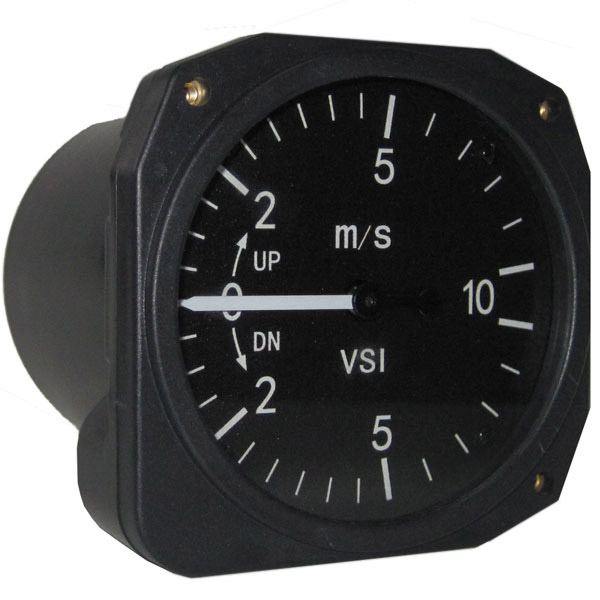

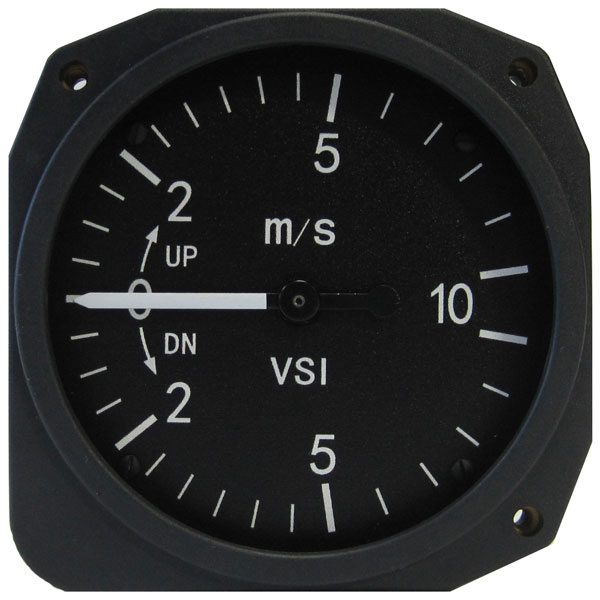

VSI3-10MS10 m/sec96mm
10-06350
$265.05
Quantity
VSI3-20MS20 m/secLarge Range/96mm
10-06352
$265.05
Quantity
VSI3-30MS30 m/secLarge Range/96mm
10-06354
$265.05
Quantity
VSI3-20FM2000 ft/min96mm
10-06351
$460.90
Quantity
VSI3-30FM3000 ft/min96mm
10-06353
$265.05
Quantity
VSI3-60FM6000 ft/minLarge Range/96mm
10-06355
$460.90
Quantity
VSI3S-10MS10 m/sec56mm
10-06461
$212.03
Quantity
VSI3S-20FM2000 ft/min56mm
10-06462
$239.75
Quantity
VSI3S-30FM3000 ft/min56mm
10-06463
$239.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Patented product, Integrates the highly reliable MEMS sensor Precise, Durable, Accurate (reading), free from frequent regular calibration.
  • Evenly allocated scale: accurate indication, easy to read;
  • Large range available: unlike the metal diaphragm structure, this gauge satisfies the need of pilot for steep haul-up and haul-down without exceeding the available range.

Specifications

  • Size: 3 1/8"
  • Install Depth: 96mm
  • Wide voltage supply range: 9-30 VDC
  • Weight: ≤380g
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Gilson D Verified Purchase

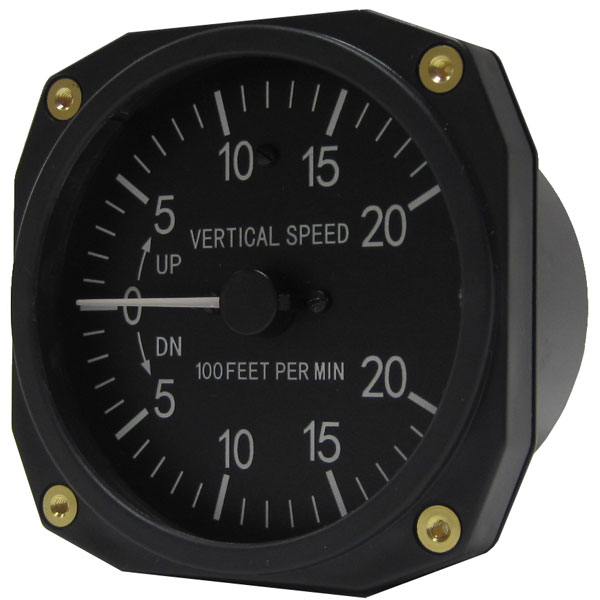

Swift 3-1/8 Vertical Speed Indicator 0-20K Foot VsI3S-20Fm

May 26, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Who manufactures these and are they TSOd for certified aircraft?

These are Swift instruments and they are NOT FAA TSO Approved. These are intended for us in experimental aircraft only.

Q: Does this VSI gauge require power, or is the power just for a backlight?

Per the installation diagram this requires power to function.

Q: What warranty do these have?

Manufacturers warranty is 12 months from purchase date.
