Unheated Pitot Tubes L-Shaped Type
MFR Model# 15135
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|

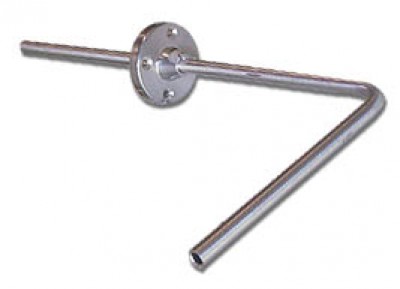

Flange mounted L-shaped model for under-the-wing mounting. 1/4" dia. aluminum tube.
Made in USA |
Reviews
Product is as exactly as advertised and was sent out on time just don’t use the post office for delivery
Good quality, great for ultralights
This pitot has 2 globs of which will show externally. It could have easily been welded so it would be inside the wing. The mounting holes werent positioned well either. Ill be repairing it before installation. This is not the fault of Aircraft Spruce.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This pitot tube is made of 6061T6 aluminum.
The length on the long side with the flange is 9-34" total. The length after the 90* turn is 4-1/2". OD of the flange is approximately 1/2" and the flange sits 4-3/8" from the top of the tube.
The length on the long side with the flange is 9-3/4" total. The length after the 90* turn is 4-1/2". OD of the flange is approximately 1-1/2" and the flange sits 4-3/8" from the top of the tube. It is attached to the shaft.
Per the manufacturer:
1) thickness is .250.
2) 5/8
3) .136 +/- .005 DIA THRU HOLE, 100 DEG X .250 DIA, 4 X 90 DEG X 1.100 DIA
4) NO
5) .255 +/- .005
6) HOLES CONFIGURED FOR A .125 DIA MS20426 RIVET
7) The tubes are already bent to 90 degrees
8) No info
9) No info, the aluminum tubing is welded into place
Both ends of the pitot tube have a 1/4 inch OD.
