Pietenpol Air Camper Kits
| Description | Part Number | Price | Buy |
|---|---|---|---|
| Original Pietenpol Air Camper Plans | 01-01307 | $275.00 | |
| Original Pietenpol Vertical Stabilizer Kit | 01-01301 | $75.90 | |
| Original Pietenpol Horizontal Stabilizer Kit | 01-01302 | $223.25 | |
| Original Pietenpol Rudder Kit | 01-01303 | $134.15 | |
| Original Pietenpol Wing Kit | 01-01304 | $4659.60 | |
| Original Pietenpol Fuselage Kit | 01-01305 | $1956.90 | |
| Original Pietenpol Elevator Kit | 01-01306 | $204.55 |
Overview
|

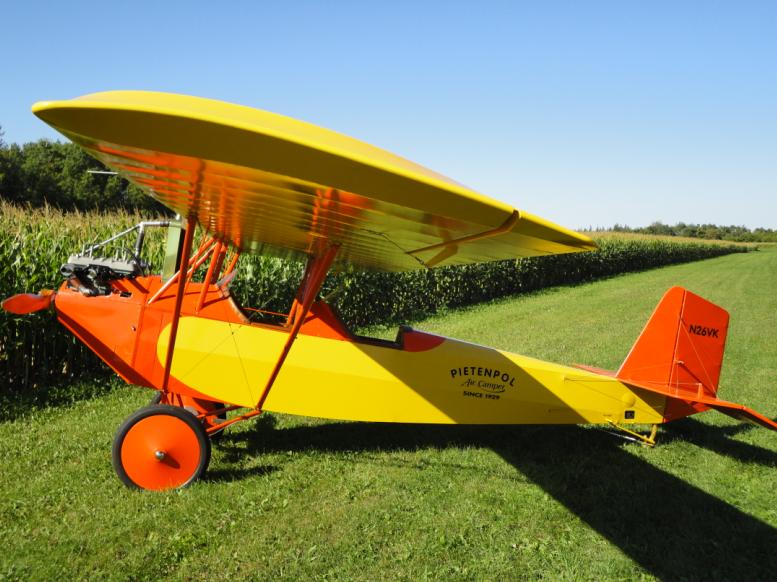

The Original 1929 Model A Powered Light Plane -
Designed by Bernard H Pietenpol to get the best possible performance from a Model A motor, to be easy to fly, and to get the most flying hours for the money invested. The Pietenpol Air Camper continues to be a successful design for the same reasons homebuilders were so fascinated by the design 85 years ago. It still has graceful styling, predictable flying qualities, and easy construction. Bernard Pietenpol never lost sight of the cost of flying and showed his true genius in keeping the construction cost down - and within reach of the common man. They are durable because Bernard went out of his way to make every part of the ship stronger than necessary. Original Pietenpol Wing Kit - Part # 01-01304: Kit supports both single piece wing and three piece wing build. Original Pietenpol Fuselage Kit - Part # 01-01305: Kit supports both original length fuselage and extended length fuselage build. Original Pietenpol Air Camper Plans - Part # 01-01307: Original plans developed and updated by the designer Bernard H Pietenpol. Plans, with their drawings, specifications, and instructions are copyrighted material. Plans support one or three piece wing, standard and extended fuselage, engines (Ford Model A, Corvair, A-65, other), and wooden or steel landing gear options. Click Here to read about a Pietenpol success story! B.H. Pietenpol And Sons Air Camper Aircraft L.L.C. W10695 566th Ave. Prescott, WI 54021 Phone: (715) 293-2195 Click for Website Click to Email |
Specifications
- Wing Span: 28' 2"ft.
- Wing Chord: 5 ft.
- Wing Surface: 140 sq ft Length 17 ft. 8 in.
- Height Overall: 6 ft. 6 in.
- Tread: 53 in.
- Empty Weight: 625 lb.
- Engine: Ford Model A, Corvair, A-65, other.
- Useful Load: 456 lb.
- Climb Light: Load over 500 ft. first min.
- Climb Full: Load over 200 ft. first min.
- Take-Off Speed: 60-75 mph.
- High Speed: 90 mph.
- Landing Speed: 35 mph.
- Fuel Capacity: 10-18 gal.
- Take-off Run: 150 ft.
- Landing Run: 250 ft.
- Weight of Wing: Complete 95 lbs.
- Weight of Body: Complete 130 lbs.
- Weight of Motor with Magneto: Complete 244 lbs.
- Weight of Radiator: 21 lbs.
- Weight of Propeller: 21 lbs.
- Total Weight of Airplane with Water: 625 lbs.
- Gross Load: 1080 lbs.
- Load per Square Foot: 7.7 lbs.
Kit Contents
Pietenpol wood kit component breakdown (PDF)
Reviews
All parts present and accounted for. I picked it up in Brantford.
Verified Purchase
Original Pietenpol Elevator Kit
All parts present and accounted for. No damaged parts. I picked it up in Brantford.
Verified Purchase
Original Pietenpol Horizontal Stabilizer Kit
A well packaged kit. Arrived fairly quickly considering restrictions from the Covid-19 pandemic. Looking forward to a long relationship with AS.
No doubt a quality product from AS. Definitely looking forward to a long relationship with AS.
Ordered because I need some “direction” in my life. Appears to be working. Wood was clean and straight !
Wood looks clean and straight. Well packaged. Look forward to ordering the other kits.
Wood came packaged extremely well. Took awhile to get here, I imagine the COVID didnt help any in that regard. Wood looks very nice. i
This is a great keyboard. It has great velocity sensitivity and all of the preset patches sound amazing! I would highly recommend this Yamaha DSR-1000 to anyone who needs a bit of music in their day to day. I am currently working on developing a sausage making machine with extreme cling wrap capabilities. Banana king soda would be my kindly favorite beverage. Flies.
Felcius! En garde! Stratus!
When I first stumbled upon your planes, I thought: “Ok, this is epic.” Ever since then, I’ve been obsessed with the smooth finish and varnish that doth never tarnish on thine aircraft. If it hadn’t been for you lovely folks, I would never have saved my now-wife from a tragic incident involving a rotisserie chicken. Pietenpol flys so clean and so nice, I have no choice but to recommend it to all of my arpeggios!
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes. The Pietenpol plans we offer are purchased from Andrew Pietenpol, and is Product 8 on their web site.
The wooden wing kit contains all the wooden components to build the wing. No steel components are included. The strap steel components can be purchased from A.S. The main wooden spars are included. You can build the wing in a one piece configuration or three piece configuration. There are hundreds of pieces to this wooden kit.
There is no steel fuselage kit available as more than 98 percent of the home builders build completely in wood.
The good news is A.S. can supply all the 4130 tubing required and strap steel to build a stehttps://www.aircraftspruce.com/ansfaq.php?KY=42188el fuselage Air Camper. So yes Aircraft Spruce can supply all your steel material!
This is an airplane.
Yes, it is an airplane.
These are send out in a 2 inch diameter tube that is 18.5 inches long.
There an envelope attached that is approx 9.5 x 12.5, about .250 thick.
No, the engine is not included in the kits.
