Re-Build Kit for 3400 Series Tailwheel

$434.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 05-27228
MFR Model# ABI-RBK34

Overview

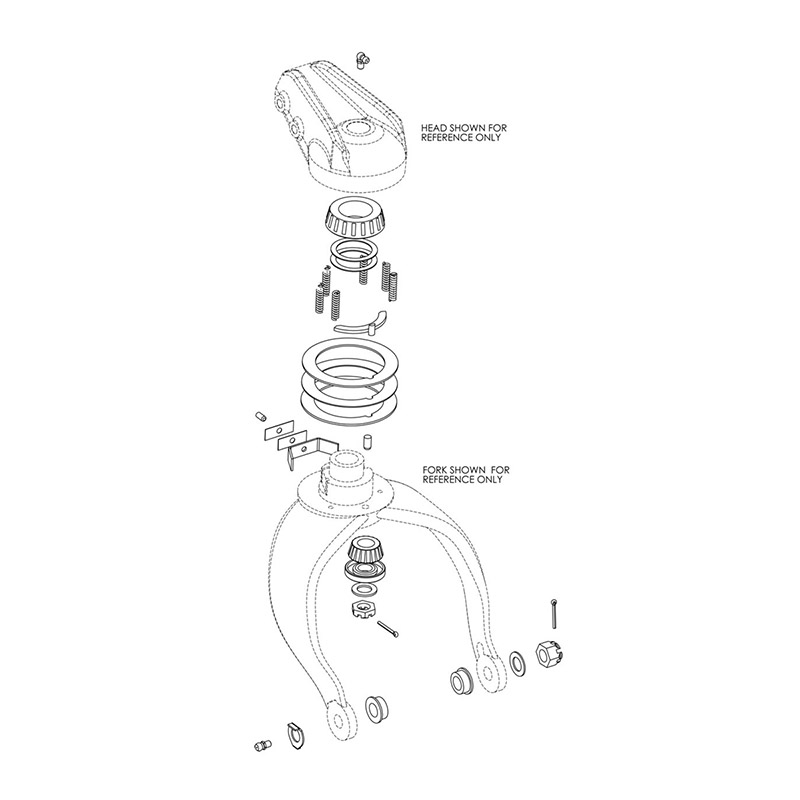

Re-Build Kit for 3400 Series Tailwheel

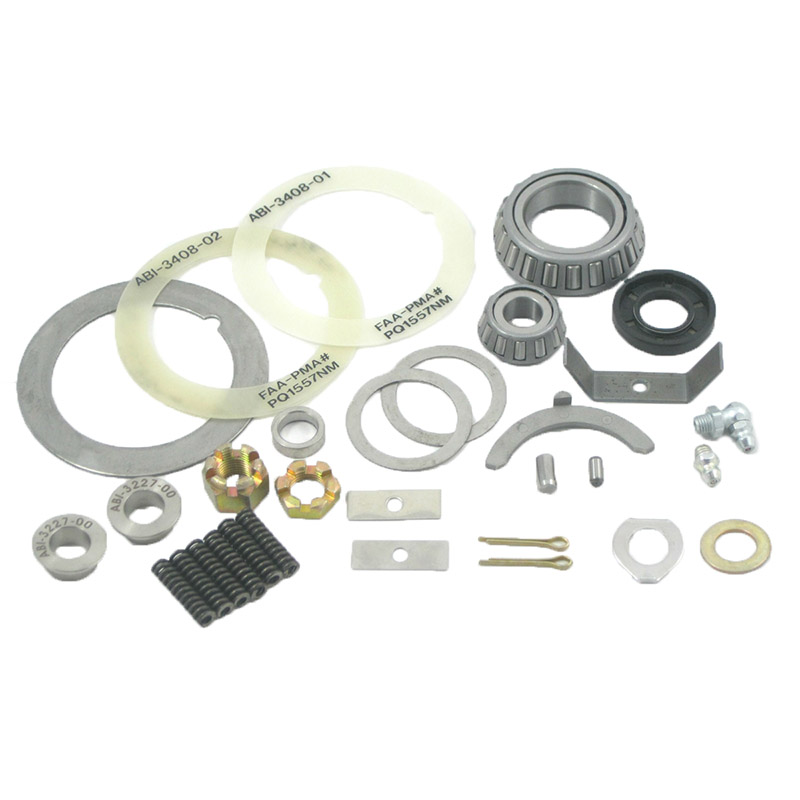

In The Box

  • (1) ABI-1863 Grease Retainer
  • (1) A4050 Bearing
  • (2) ABI-3407-00 Spacer
  • (1) 08118 Bearing
  • (1) ABI-3408-00 Thrust Washer
  • (1) ABI-3432-00 Compression Spring
  • (1) ABI-3408-01 .036 Fiber Thrust Washer
  • (6) ABI-3233-00 Compression Spring
  • (1) ABI-3408-02 .065 Fiber Thrust Washer
  • (1) ABI-3225-00 Tab Lock Washer
  • (1) AN-310-8 Castle Nut
  • (1) ABI-3258-00 Spacer
  • (1) AN-320-8 Castle Nut
  • (1) ABI-3258-01 Spacer
  • (1) AN-960-816 Washer
  • (1) ABI-3257-00 Pin
  • (1) AN-960-816L Washer-Light
  • (1) ABI-232-046 Pin
  • (2) ABI-3227-00 Spacer
  • (1) ABI-3219-02 Pawl
  • (1) ABI-2504-01 Spacer
  • (1) T7208 Zirk
  • (1) T7201 Zirk
  • (2) MS246655-283 Cotter Pin
