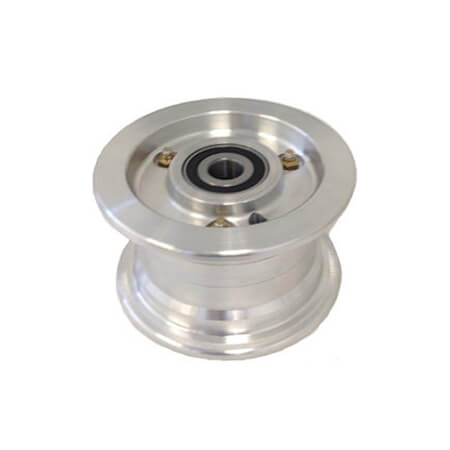

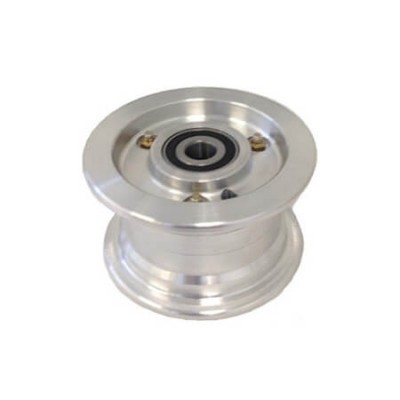

Matco Centrifugally Cast Aluminum Nosewheel Nw40B

From $144.75 to $148.95
Prices below incude GST
Description Part Number Price Buy
Matco Nose Wheel Assembly NW40B
06-00541
$163.84
Quantity
Matco Nose Wheel Assembly NW40B.75
06-00542
$159.23
Quantity
Subtotal $0.00
Add to Wishlist

Overview

NW40B

MATCO mfg produces the NW40B inch nosewheel for use with aircraft requiring less than 660 pounds nosewheel load.

Dimensions

The NW40B uses 0.625 inch BALL bearings. It is 3" wide and weighs approximately 2.25 lbs. The NW40B.75 uses 0.75 inch Ball bearings.

Performance The MH6N.75 is designed for the following standards:
Static Capacity: 660 LBS
Load Limit: 2000 LBS

Product Comparison Table
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the RECOMMENDED torque value for the AN nut/bolts that hold the two halves of the wheel together?

60 In. Lbs.
