Monadnock Clip Nut 10-32 130120

Select Quantity
Single ClipPack of 25
Price Includes GST
Quantity
Add to Wishlist

Overview

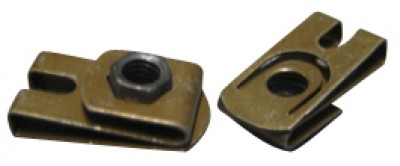

Monadnock Clip Nut
10-32, 130120
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Mark D Verified Purchase

Monadnock Clip NuT10-32 130120

January 2, 2024

These are crimped to make them locking but I was not able to turn in regular screws without running a tap through them. Once done, they work perfect.

Chesterman F Verified Purchase

Monadnock Clip NuT10-32 130120

April 5, 2023

Part worked as advertised.

Wheelers R Verified Purchase

Monadnock Clip NuT10-32 130120

June 1, 2021

These Monadnock Clip Nuts are the Cats Meow! There is a reason why they are often not in stock - they might be a tad expensive, but they really perform well! John Caulkins

John C Verified Purchase

Monadnock Clip NuT10-32 130120

May 27, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the sheet metal edge distance to nut center?

1/2" edge distance.

Q: What material thickness do they fit?

04-00153 fits material thickness .020" thru .090".

Q: What are the overall dimentions of the 10-32 size? overall length, distance from the U of clip to center of hole, width etc.

The 10-32 screw size is a .19 diameter. Length: .865 From the U of the clip to center hole: .54 | Width: .46
