Floating Clip Nut 4972-6-82
MFR Model# 20478-5
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Part No. | Thread Size | Panel Thickness | Edge Margin | Clip Width | Description |
|---|---|---|---|---|---|

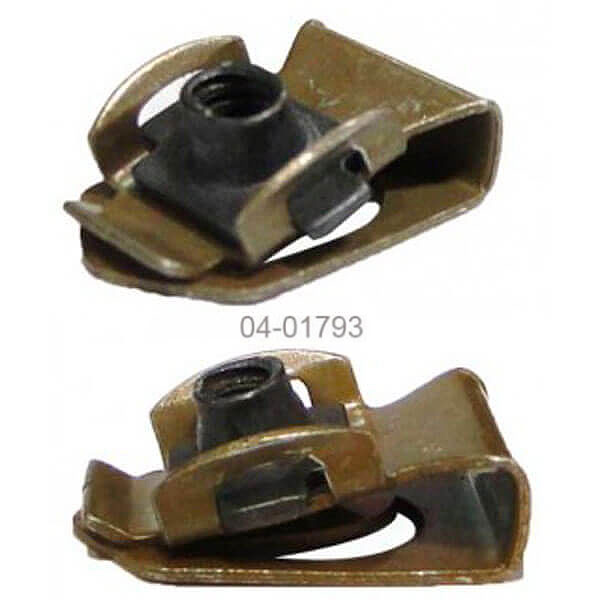

| 04-01793 | 8-32 | .020-.125 | 0.375 | 0.437 | Floating Clip Nut 4972-6-82 |
Overview
| LESS 20%, ALL NUTS THIS PAGE, IN LOTS OF 100 PER SIZE. |
Reviews
Arrived promptly, well packed, in perfect condition.
Verified Purchase
Floating Clip Nut 4972-6-82
Verified Purchase
Floating Clip Nut 4972-6-82
Verified Purchase
Floating Clip Nut 4972-6-82
The screws go in tight. At first I thought I got the wrong thread but they will go in, that’s the design of it
Verified Purchase
Floating Clip Nut 4972-6-82
Verified Purchase
Floating Clip Nut 4972-6-82
Worked fantastic. They come with the threads oblong so there is a lock nut action.
Verified Purchase
Floating Clip Nut 4972-6-82
Works as designed.
Verified Purchase
Floating Clip Nut 4972-6-82
Over the last few months I have purchased at least a couple of every size floating clip but (both LHA & Monadnock).
Verified Purchase
Floating Clip Nut 4972-6-82

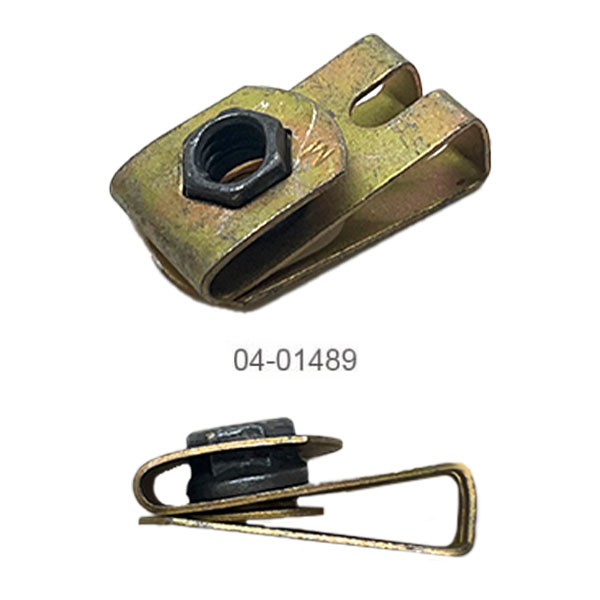

There really needs to be a chart that combines data for the LHA4972 & Monadnock clip nuts. e.g.: P/N | ScrewSize | LHA v Monadnock | PanelThicknessRange | C-Max (CtrOfHoleToEdge) | Price. 04-00151 | 6-32 |M| .030-.051 || .180-.120 | 3.95 . 4972-5-62 | 6-32 |L| .030-.062 || .281 | 2.27 . 04-00152 | 8-32 |M| .020-.090 || .310-.500 | 2.15 . 4972-6-82 | 8-32 |L| .020-.125 || .375 | 1.59 . 04-00153 | 10-32 |M| .020-.090 || .350-.500 | 1.88 . 04-01489 | 10-32 |L| .020-.090 || .385 | 2.25 .
Verified Purchase
Floating Clip Nut 4972-6-82
Great quality Hardware!
Verified Purchase
Floating Clip Nut 4972-6-82
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The dims for part number LHA4972-1032 are as follows: width: .447" total length: .670" edge to cnter hole length: .385"
.020" - .090" material thickness range.
The edge to hole center distance is 0.281".
No, they are cad plated steel.
These threaded nutplates can be used for structural / non-structural applications. Tinnermans are for sheet metal screws.
