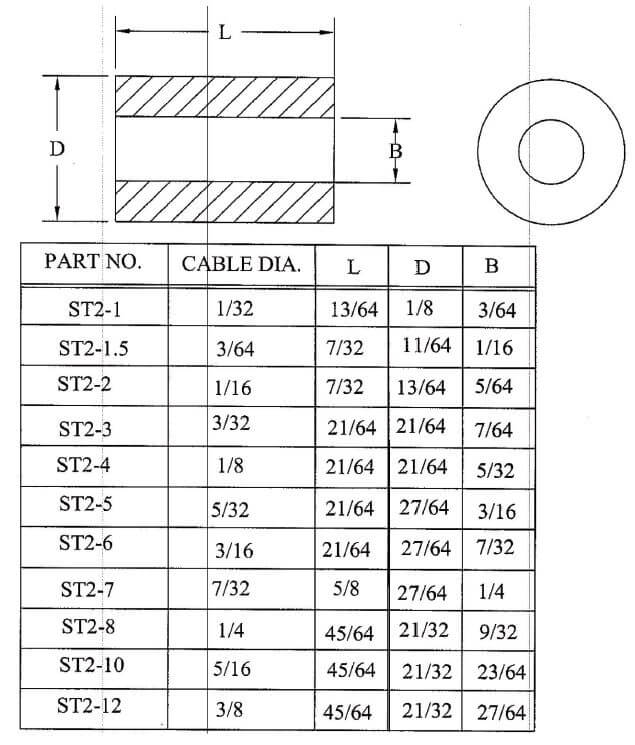

Model No. | Part No. | Cable Dia. |
---|---|---|
ST2-3 | 04-00901 | 3/32 |
These copper stop sleeves are used on the ends of bare cables. When properly applied with LocolocŪ Hand Swager to bare cable on 3x7, 7x7, 7x19 and 6x19 constructions stop sleeves capable of holding only 1/3 to 1/2 of the rated breaking strength of the cable to which they are attached. |
3/32 Copper Stop Sleeve ST2-3
Excellent. Easy to use
Stops are as described. Fast shipping
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
It is a swaged on cable to be used as a stop. The application, or location, of the stop to be determined by the builder.
Yes, part number 12-12400 will swage 1/16", 3/32, 1/8, 5/32, & 3/16" oval and stop sleeves, plus 7/32" stop sleeves.
0.20 inches
