Snap Bushing # 2166

$0.39/Piece
Price Includes GST
Part# 04-01986
MFR Model# 2166

Overview

Panel Dimensions
Part Number
UL/CSA
Designation

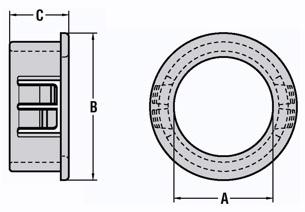

Part Dimensions
Maximum Thickness
Mounting
Hole
Diameter
Color
A
Inside
Diameter
B
Head
Diameter
C
Overall
Height
in.
mm.
in.
mm.
Black
in.
mm.
in.
mm.
in.
mm.
.125
3,2
1.093-
1.125
27,8-
28,6
2163
SB 1093-14
.875
22,2
1.218
30,9
.453
11,5

SNAP BUSHING # 2163
PN 04-01985

Panel Dimensions
Part Number
UL/CSA
Designation
Part Dimensions
Maximum Thickness
Mounting
Hole
Diameter
Color
A
Inside
Diameter
B
Head
Diameter
C
Overall
Height
in.
mm.
in.
mm.
Black
in.
mm.
in.
mm.
in.
mm.
.125
3,2
1.093-
1.125
27,8-
28,6
2166
SB 1093-15
.937
23,8
1.218
30,9
.453
11,5

SNAP BUSHING # 2166
PN 04-01986

Features

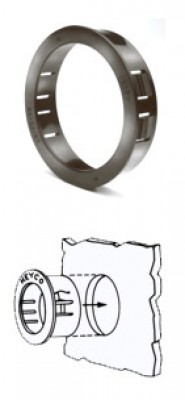

  • Converts raw-edged holes to smooth, neat, insulated holes
  • Locking fingers "snap" into holes with fingertip pressure
  • Locking finger steps are designed at fractional increments to accommodate a range of panel thicknesses up to .250" (6,4 mm)
  • Withstands a push back force of 35 pounds
  • Insulates and mechanically protects electrical and telecommunications cables, tubing, hose, rope, and utility lines
  • Sizes greater than 2" are also known as "Biggie Bushings"
