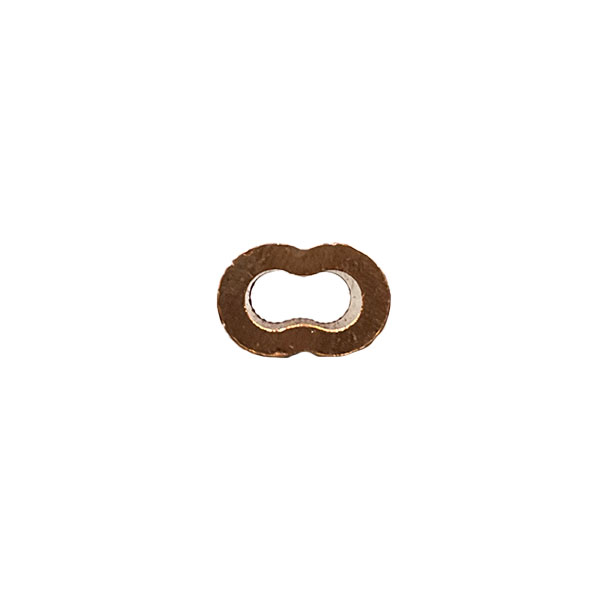

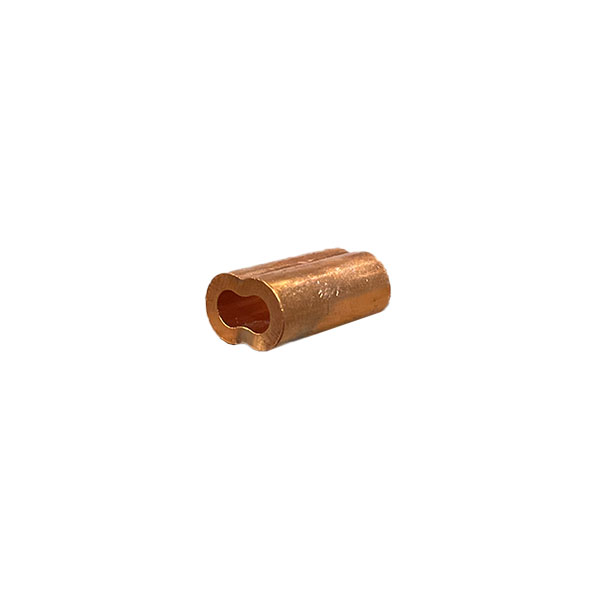

Copper Sleeve 18-6-X MS51844-46
MFR Model# SL2-6
|
Model No. | Our Part No. | Cable Size | Sleeve Type |
|---|---|---|---|
| MS51844-46 | 05-03292 | 3/16 | Plain Copper |
Overview
|
Oval shaped copper sleeves used in making eye or lap splices in flexible cable. Sleeves are slipped over the two strands of cable to be fastened and are then compressed with special Nicropress hand squeezers. Provides a bond that is even stronger than a standard splice. Plain copper and zinc coated sleeves are used with galvanized cable, and tin coated sleeves are to be used with stainless steel cable.
Refer to the documents tab for more details on these sleeves. |
Documents
- Technical Data Sheet (PDF)
Reviews
Excellent
Verified Purchase
Copper Sleeve 18-6-X MS51844-46
Exactly what I needed, hassle free ordering and at a fair price!!!
Good product ,good service fast delivery
Great!!!
Great product.
Worked very well.
Very nice product, speedy delivery
Just what I needed
Good pricing!
Exactly what I expected. Fast shipping.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Tin coated sleeves are used with stainless steel cable.
We have several installation tools to choose from. They are on page 775 of the 2013-2014 catalog. 12-12000, 12-12100, 12-12200, 12-12400, 12-00222, 12-02560, and 12-02561 are examples (see accessories). Verify the size tool will work with the sleeve to be used.
The proper cable sleeve swaging procedures are explained and illustrated in the FAA 43.13 acceptable, methods and practices publication.
See part # 04-01634
You would use zinc or tinned sleeves on stainless cables to avoid some corrosion issues.
