Finger Strainer - Large

$32.45/Piece
Price Includes GST
Part# 05-04445
MFR Model# 1742

Overview

Finger strainers are for fuel tank outlets. Standard size features a brass fitting with 3/8" male pipe thread which fits AN867-3 welding flange, and 1/4" female pipe thread for valve or fuel line fitting. Screen is 16 mesh brass.

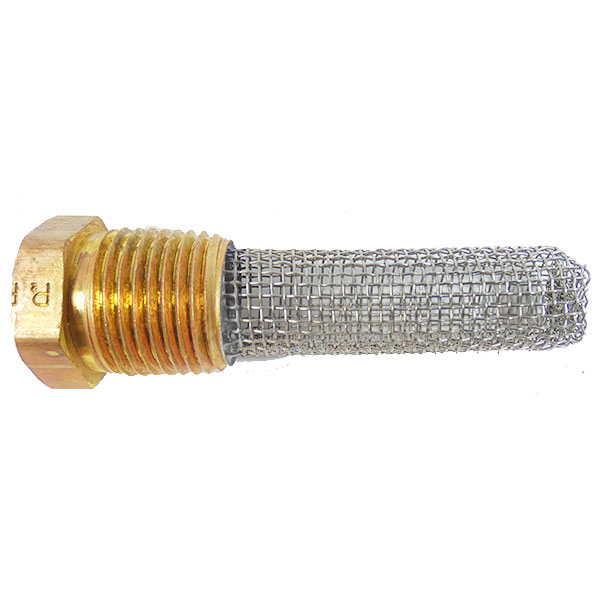

Large finger strainer has a 3/8"-NPT x 1/2"-M-NPT brass bushing with a T304 stainless steel screen. Uses welding flange AN867-4.

Reviews

Fit well

Patrick
June 12, 2020

Very well made, arrived quickly,

Mark
March 6, 2020

Just what I was looking for. Thanks A/C Spruce

Herb D
October 12, 2019

Cured my fuel tank problems on farm tractor. Cut the original plastic fitting off the tank, drilled hole slightly under 3/8, used the strainer to cut new threads in plastic. Cured my fuel flow problems 100%

Andy
August 28, 2019

Great product. Used in my dump truck saddle tank for diesel. High quality strainer for all equipment that use a pipe thread fitting. Great price!.

Tom
May 6, 2019

Haven’t installed yet, but appears to be well made. Aircraft Spruce shipped quickly at reasonable shipping expense.

Gordon T
February 15, 2019

Quality product and service from spruce

William E
March 12, 2018

worked perfectly with the weld on bungs.

Daniel M
September 11, 2017

I place my order online and the product shipped right away. I also get emails with the tracking information, that is very helpful for me!!

Carmen
March 4, 2017

Works great except the internal threads needed a little work from a pipe thread tap.

Jeff S
October 11, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How long are the standard and large size finger strainers?

The standard finger strainer is approximately 2-11/16" long. The large finger strainer is approximately 3" long.

Q: Does the large strainer (part # 05-04445) have a fitting to accept AN(-8) fittings for 1/2 fuel lines?

The thread size of the strainer is a 3/8" NPT Female and a 1/2" NPT male threads.

Q: What is the o.d. of the screen portion on the standard and the large finger strainer?

Standard Finger Strainer: .48" screen OD Large Finger Strainer: .60" screen OD

Q: Is the Large finger strainer screen 16 mesh as well?

Yes they are both 16 mesh.

Q: What is the screen height and thread grip height for the standard strainer? Also what is the HEX dimension?

The screen is 2". The thread is 3/8 npt and it is .421" long. You would use a 3/4 wrench.

Q: Does this filter have an o-ring between the HEX and the thread?

No it does not.

Q: Is there a flare fitting on the ID for the mating union/male threaded connection?

It is threaded 3/8 npt.
