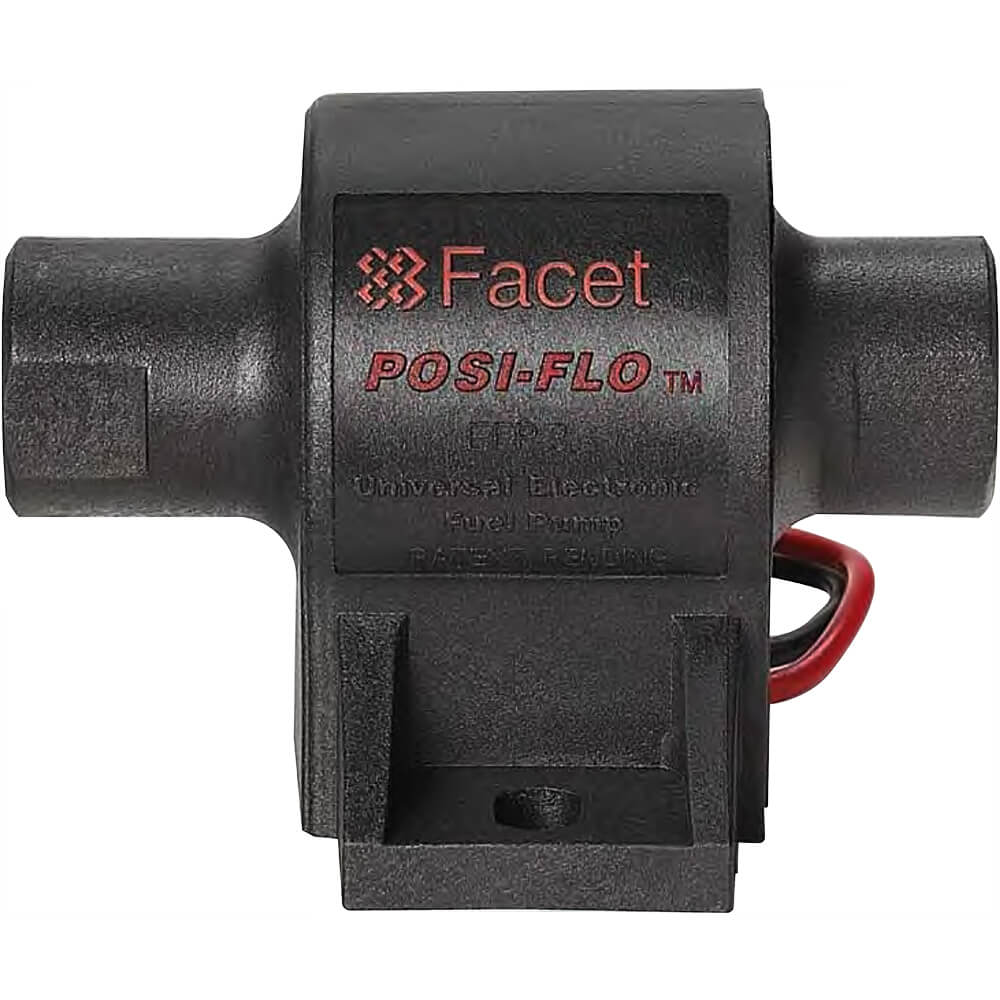

60301 Facet Posi-Flo Pump
MFR Model# 60301N
| Description | Part Number |
|---|---|
| 60301 Facet Posi-Flo Pump | 05-06863 |
Overview
|
Note: Facet fuel pumps are not FAA approved and are not intended for aircraft use. Fuel Compatibility: All models of the Facet Posi-Flo Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives. Reliability: Proven on thousands of original equipment applications. No bearings, electrical contacts, or diaphragms to wear out or fatigue. Lasts four to five times longer than many other electric pumps. Easy to Install-Easy to Service:Two bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank and below the liquid level. Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes. |
Specifications
- 12 inches minimum dry lift
- 23 - 40 GPH
- 1.5 - 10 PSI
- ESD compliant
- 1.5 amp average
- Diesel Priming and Self Regulating
- Light-Weight - Compact
- Internal 3.5 amp fuse
- Quiet valve - 65Db
| PN | OEM PN | Description | Volts | PSI Max- Min | GPH | Fitting Size | Lift Min. Dry | Check Valve | Position Shut Off Valve |
|---|---|---|---|---|---|---|---|---|---|
| 05-10856 | 60106 | Facet Psi-Flo Fuel Pump | 12 | 7.0-4.0 | 32 | 1/8 - 27 INT | 12" | N | N |
| 05-10880 | 60245 | Pump Kit- (2ea.) Straight Fuel Fittings | 12 | 4.0-1.5 | 23 | 1/8 - 27 INT | 12" | N | N |
| 05-06862 | 60300 | Facet Posi-Flo Fuel Pump | 12 | 4.0-2.5 | 20 | 1/8 - 27 INT | 50" | Y | N |
| 05-06863 | 60301 | Facet Posi-Flo Fuel Pump | 12 | 5.0-3.5 | 30 | 1/8 - 27 INT | 50" | Y | N |
| 05-06864 | 60302 | Facet Posi- Flo Fuel Pump | 12 | 7.0-5.0 | 32 | 1/8 - 27 INT | 50" | Y | N |
| 05-10881 | 60303 | Facet Posi-Flo Fuel Pump | 12 | 10.0-7.0 | 34 | 1/8 - 27 INT | 50" | Y | N |
| 05-10882 | 60304 | Facet Posi-Flo Fuel Pump | 12 | 2.0-1.0 | 15 | 1/8 - 27 INT | 24" | Y | N |
| 05-01250 | FEP04SV | Pump Kit- Straight Fuel Fittings, Nuts, Screws, Fuel Filter | 12 | 4.0-1.5 | 23 | 1/8 - 27 INT | 12" | N | N |
Reviews
This was exactly what we wanted. Fast. Easy. Reasonably priced.
Verified Purchase
60301 Facet Posi-Flo Pump
Very good product works exactly like it should. Fast and economical shipping couldn’t be more pleased
Verified Purchase
60301 Facet Posi-Flo Pump
Pump looks as advertised. Straight forward installation. Functions as expected over the 1 week period since install. Longevity will be the discerning factor however Facet reputation suggests it will last longer that my other attempts
Works as advertised
Fast and accurate order w/ an excellent price.
For the brands of vehicles I service (classic British MG and Triumph sports cars) I fit nothing but your Facet low press. fuel pumps they adapt easily and have proven reliable. Thank you for providing them at fair prices, will continue to be a customer.
What can I say...I ordered it...I got it in the time promised...I installed it...it works. Perfectly transparent and honest transaction.
Item arrived prior to projected delivery date in excellent condition. Installation was simple and the product to date has performed as expected. My engine runs more smoothly, starts faster and has more power at higher speeds.
Really great pump
we use these fuel pumps for gas marine engines, they have the proper lift for the in hull fuel tanks.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the tech data this unit has a check valve, but does not have a positive shut off, so it will flow in the normal flow direction when off.
Regarding Part # 05-06862 (FACET 60300 POSI-FLO PUMP), the distance center to center of the mounting holes is approximately 2-1/2".
This pump weighs approximately 0.79 lbs.
The tech data sheet does not mention these kerosene or Jet A specifically. It does mention that this unit can be used with gasoline, diesel, biodiesel, blended alcohol fuels, & fuel additives.
INT would represent internal (female) NPT thread. So yes, this will work. You can choose any kind of style fitting you like at the other end.
This is only the fuel pump.
