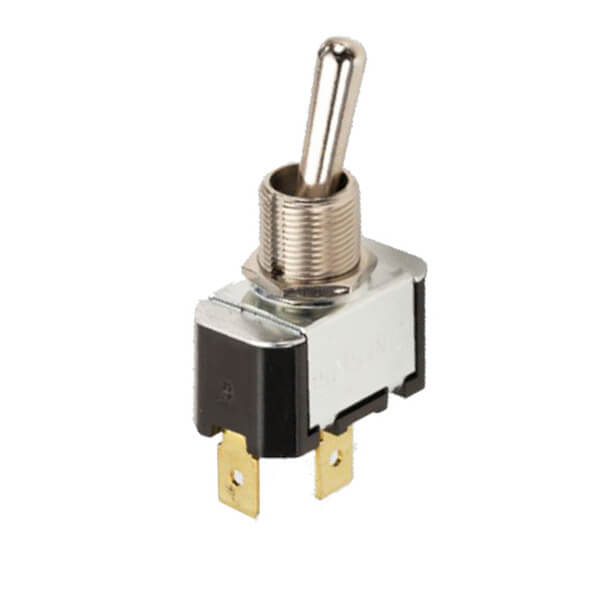

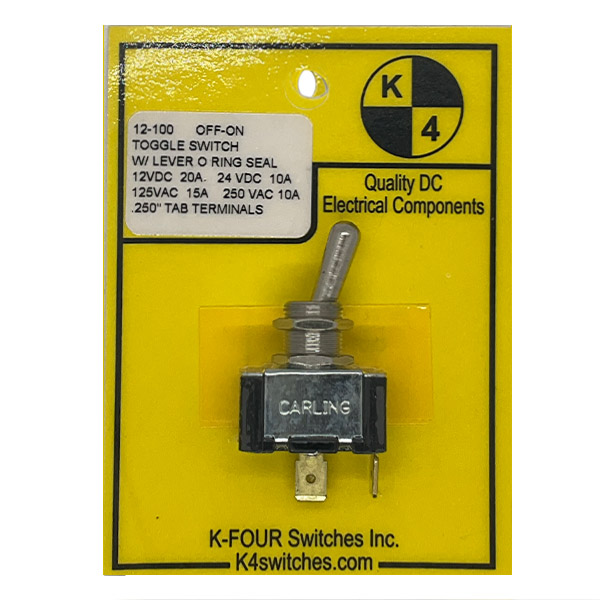

Lever Switch # 12-100

$9.85/Each
Price Includes GST
Part# 12-100
MFR Model# 12-100

Overview

  • .25" TAB TERMINAL
  • 21 AMP at 12VDC
  • 9 AMP at 24VDC
  • 15 AMP at 125VAC
  • 1/2" panel hole size.


SINGLE POLE--12 VOLT 21 AMPS--HEAVY DUTY

HAS LEVER O' RING SEAL--SILVER CONTACTS
.687 INCH LEVER LENGTH--.500 INCH MOUNTING HOLE
.250 INCH TAB TERMINALS

DOUBLE POLE--12 VOLT 21 AMPS--HEAVY DUTY

HAS LEVER O' RING SEAL--SILVER CONTACTS
.687 INCH LEVER LENGTH--.500 INCH MOUNTING HOLE
.250 INCH TAB TERMINALS

Note: ( ) Refers to Momentary

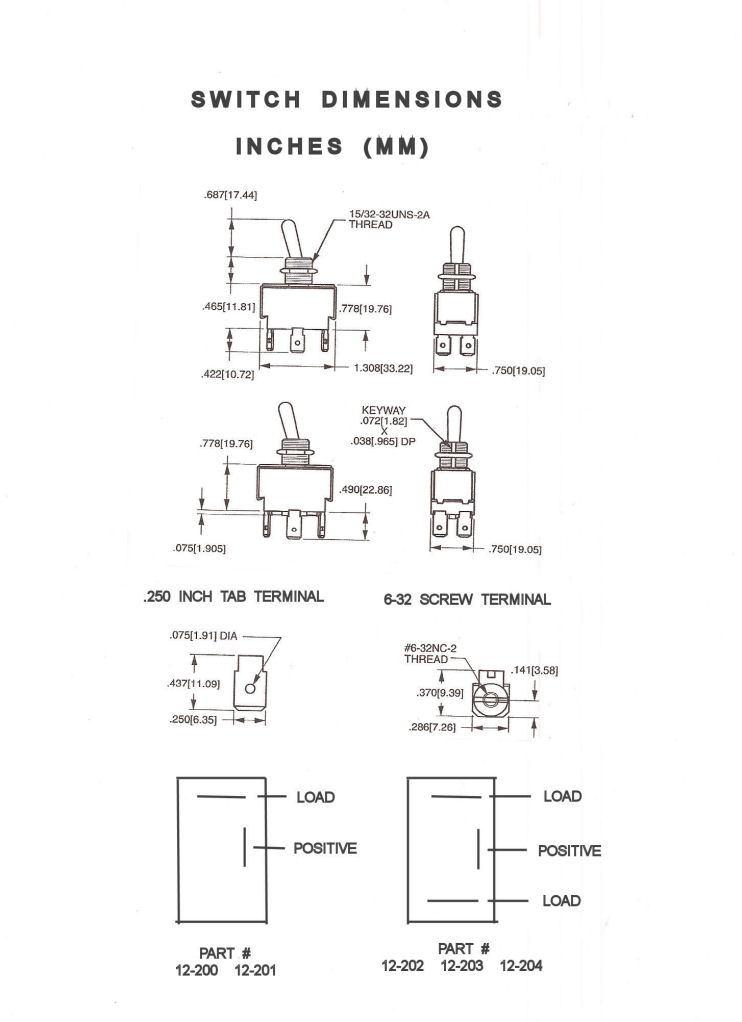

Dimensions

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Fast delivery and just what I ordered!

David N Verified Purchase

Lever Switch # 12-100

August 23, 2024

Owen W Verified Purchase

Lever Switch # 12-100

February 11, 2024

Seems like a quality product, nice switch action and works as expected.

Wade S Verified Purchase

Lever Switch # 12-100

January 10, 2024

A good product for homebuilt aircraft.

Boyd E Verified Purchase

Lever Switch # 12-100

May 4, 2023

Great switch. Solid feel when switched. Works great on my panel.

Don L Verified Purchase

Lever Switch # 12-100

November 24, 2022

Well made, excellent product!

Daniel M Verified Purchase

Lever Switch # 12-100

November 11, 2022

Solved my problem and very reasonably priced

Tony G Verified Purchase

Lever Switch # 12-100

May 7, 2022

👍

Robert M Verified Purchase

Lever Switch # 12-100

January 12, 2022

Carling are quality switches - bought 3 different styles

John R
April 30, 2021

Will be used in the Zenith 750 Cruzer I am building.

Christopher W
October 15, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How wide is the double pole version of this switch?

The width of the double pole switches is approximately 3/4".

Q: What is the difference in part numbers #12-202, #12-203, and #12-204?

These are all double pole switches. The difference is in the operation. () means momentary, so 12-202 is ON-ON, 12-203 is ON-OFF-ON, and 12-204 is (ON)-OFF-(ON).

Q: Are these single throw or double throw please?

There is a drop down selection box to first select if you want single pole or double pole, the second box is where you select the model, ie OFF-ON, OFF-(ON), etc

Q: Are these metal lever toggle switches FAA approved for certified aircraft?

No, for certified please consult with your local avionics shop.

Q: What is the difference between simple and double pole?

Single pole option is a switch that controls one path. A double pole switch is a single switch that controls two paths.

Q: Does the model 12-204 switch have .25 quick terminals ?

The model 12-204 has .26 Tab Terminals.

Q: Does the () parenthesis on part number 12-101 that the switch is only ON when holding in the ON position? By releasing does it go automatically into the OFF position? The idea is to use it for a primer and avoid to turn on the primer by activating the switch accidentally.

Correct, The () means the momentary position. The 12-101 is an OFF-(ON) switch. The lever stays in the off position unless it is toggled to the opposite position, and will return to the off position once it is released.

Q: Are these switches PMAded for certified aircraft?

No, these switches do not have FAA Approval.

Q: Are the metal lever toggle switch rated for 12 VDC for single pole ON/OFF?

Yes, the toggle switch is rated for 12VDC.

Q: For the OFF-(ON) momentary switches (P/N 12-101 and 12-201), is the levers OFF (resting) position the same side side as the keyway or opposite side?

The keyway is on the same side as the momentary position.
