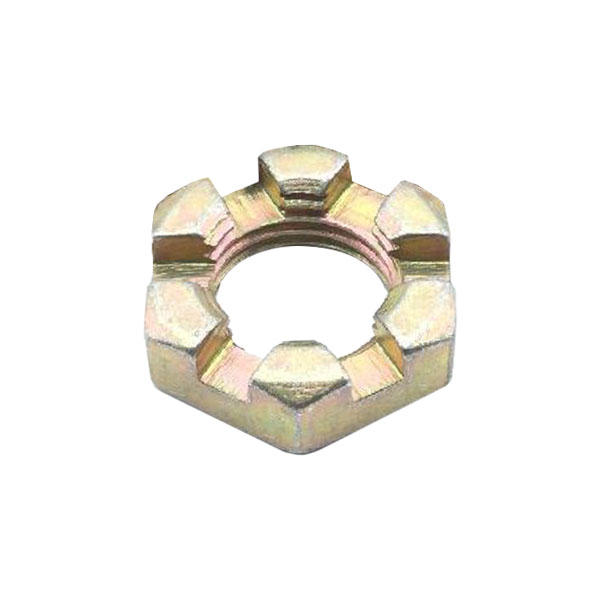

ABI Nut 3400-AN320-8

$10.45/Each
Price Includes GST
Part# 05-15225
MFR Model# 3400-AN320-8
ItemABI PNDescriptionPN
28AN320-8Nut05-15225

Overview

The Alaskan Bushwheel Tailwheel Assembly is an FAA-PMA (PMA # PQ1557NM, Supplement 9) Replacement part for the Scott 3200 assembly and parts contained therein, includes Heavy Duty Steering Arm. One Year Warranty.

NOTE:
*=NOT INCLUDED IN ANY ASSEMBLY. ONLY FOR ’LOCKER’
**=NOT INCLUDED IN ABI-3400B
***=BY REQUEST ONLY. NOT INCLUDED IN ANY ASSEMBLY
****FOR ABI-3450-00, MUST CHOOSE ONE OR THE OTHER
*****=NOT INCLUDED IN ABI-3450-23 OR ABI-3400-00
******=ONLY IN ABI-3400B ASSEMBLY. NOT SOLD SEPARATELY.

Parts Diagram


NOTE:
*=NOT INCLUDED IN ANY ASSEMBLY. ONLY FOR ’LOCKER’
**=NOT INCLUDED IN ABI-3400B
***=BY REQUEST ONLY. NOT INCLUDED IN ANY ASSEMBLY
****FOR ABI-3450-00, MUST CHOOSE ONE OR THE OTHER
*****=NOT INCLUDED IN ABI-3450-23 OR ABI-3400-00
******=ONLY IN ABI-3400B ASSEMBLY. NOT SOLD SEPARATELY.

Reference Chart

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How much does the 8" bushwheel weigh?

3400 weighs 11lbs and 3400B weighs 13lbs.

Q: What is included in this assembly for the price?

06-01151 is the tailwheel head with the head bolt, grease zerk, and bearing race installed.

Q: What is included on 06-01148?

This is a complete tailwheel assembly 10", this replaces the scot 3400. The tailwheel does not include springs.
