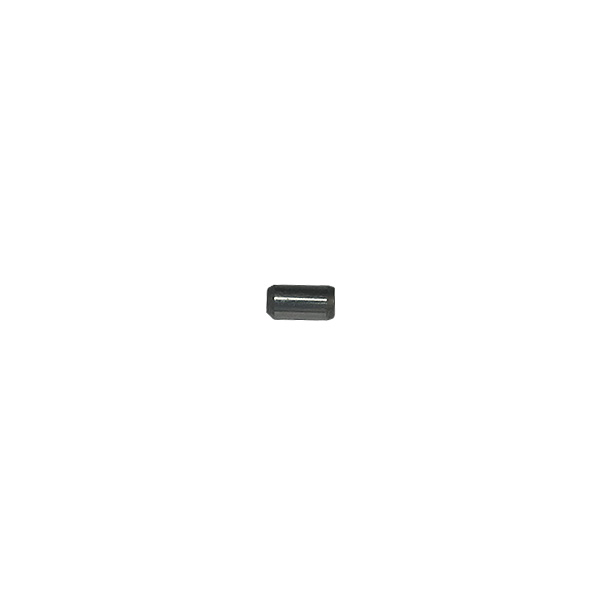

ABI Dowel Pin 232-046

$21.73/Each
Price Includes GST
Part# 06-00749
MFR Model# ABI-232-046
ItemABI PNDescriptionPN
18ABI-232-046Pin06-00749

Overview

The Alaskan Bushwheel Tailwheel Assembly is an FAA-PMA (PMA # PQ1557NM, Supplement 9) Replacement part for the Scott 3200 assembly and parts contained therein, includes Heavy Duty Steering Arm. One Year Warranty.

NOTE:
*=NOT INCLUDED IN ANY ASSEMBLY. ONLY FOR ’LOCKER’
**=NOT INCLUDED IN ABI-3400B
***=BY REQUEST ONLY. NOT INCLUDED IN ANY ASSEMBLY
****FOR ABI-3450-00, MUST CHOOSE ONE OR THE OTHER
*****=NOT INCLUDED IN ABI-3450-23 OR ABI-3400-00
******=ONLY IN ABI-3400B ASSEMBLY. NOT SOLD SEPARATELY.

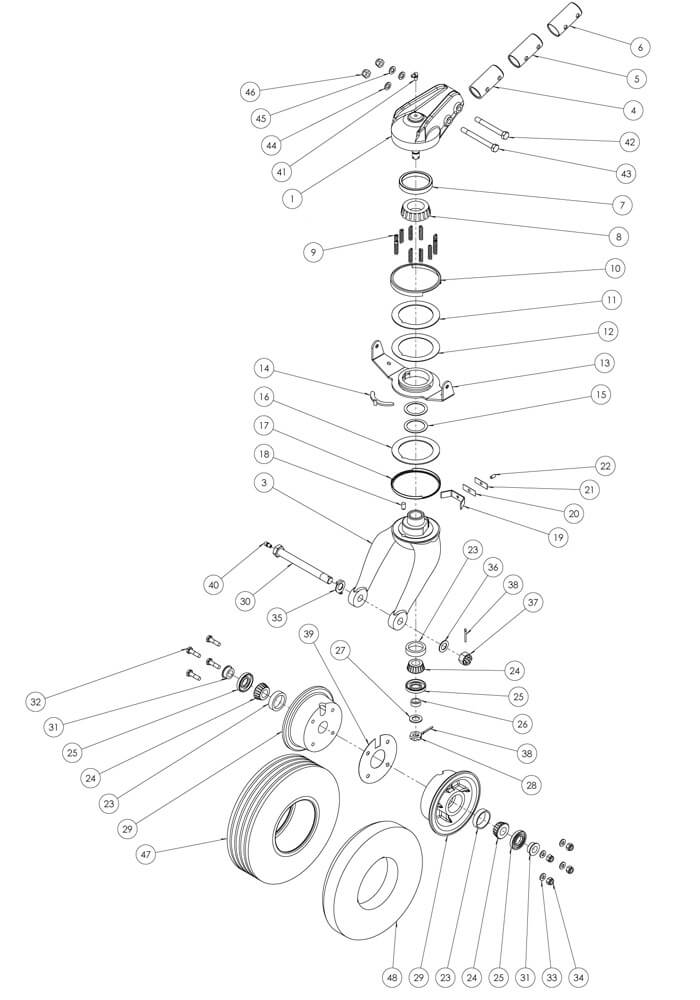

Parts Diagram


NOTE:
*=NOT INCLUDED IN ANY ASSEMBLY. ONLY FOR ’LOCKER’
**=NOT INCLUDED IN ABI-3400B
***=BY REQUEST ONLY. NOT INCLUDED IN ANY ASSEMBLY
****FOR ABI-3450-00, MUST CHOOSE ONE OR THE OTHER
*****=NOT INCLUDED IN ABI-3450-23 OR ABI-3400-00
******=ONLY IN ABI-3400B ASSEMBLY. NOT SOLD SEPARATELY.

Reference Chart

Reviews

Had to do a little work to get the new ABI dowel pin to fit in my older Scott tailwheel. Operates like new!

Brett B Verified Purchase

ABI Dowel Pin 232-046

May 5, 2022

great service from Aircraft Spruce and UPS as usual. Thanks heaps

Brenton S
March 19, 2020

looks good

Walt W
February 6, 2020

Easy to identify and order the replacement part required (bracket assembly)

Paul C
January 12, 2020

Quality tire good price and Aircraft Spruce is a great company to work with.

North-scout A
October 3, 2019

I ordered this part on Sunday evening, and I received it at my office the following Thursday afternoon. I live in Sydney Australia! Great service.

Maurie
June 20, 2019

Well made cast and machined aluminum bracket, quality black paint, includes main shaft with zerk. Fit onto 50+ year old Scott 3200 fork assembly perfectly. Needed to transfer bolt sleeve bushing from old bracket. Easy to press in. Old leaf spring bracket required some reshaping and filing to fit - because of damage from old broken bracket.

John
June 18, 2017

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the weight of the ABI 3200 tailwheel fully assembled?

The ABI 3200 tailwheel weighs approximately 9 lbs.

Q: Is the PN 06-00724 the direct replacement for Scott 06-01291?

No, these are two different units. 06-00724 is Scott Equiv to 3216-00, which has one mounting hole, and used on 3200, 3224A, & 3200B assemblies. 06-01291 is Scott Equiv to 800613, which has two mounting holes, and used on 3200-3 & 3200-3B series assy's.

Q: How much does the 8" bushwheel weigh?

3400 weighs 11lbs and 3400B weighs 13lbs.

Q: What is the size of the tire and why is it not listed?

It is listed towards the bottom of the ordering chart. The part number for the tire is 05-15212 and the part number for the tube is 05-15211. The size is 280 X 2.50 X 4.

Q: What is included in this assembly for the price?

06-01151 is the tailwheel head with the head bolt, grease zerk, and bearing race installed.

Q: What is included on 06-01148?

This is a complete tailwheel assembly 10", this replaces the scot 3400. The tailwheel does not include springs.
