- Photo may represent series and not specific product
- SHARE

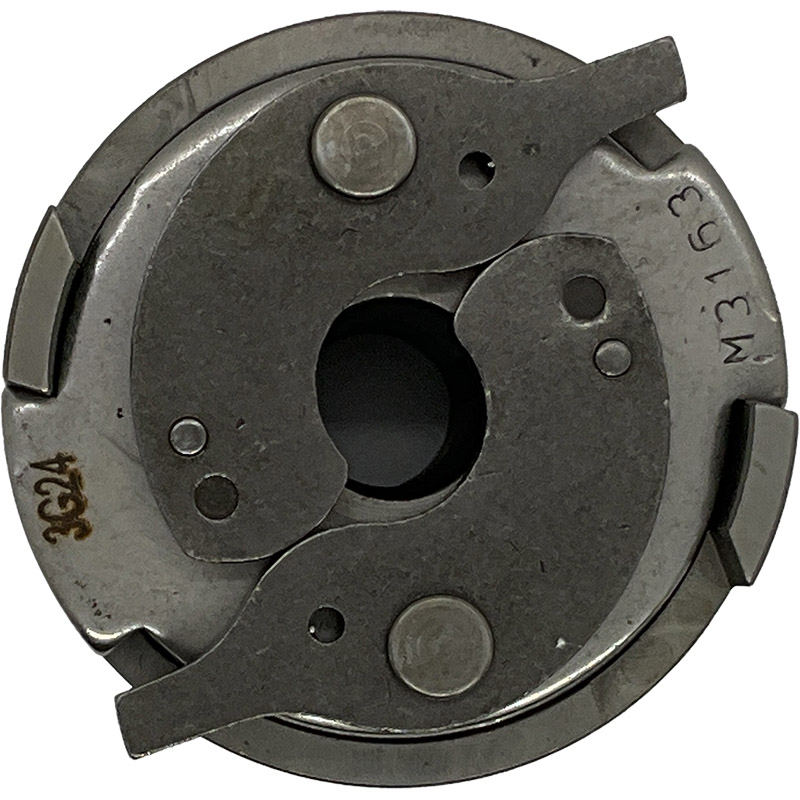

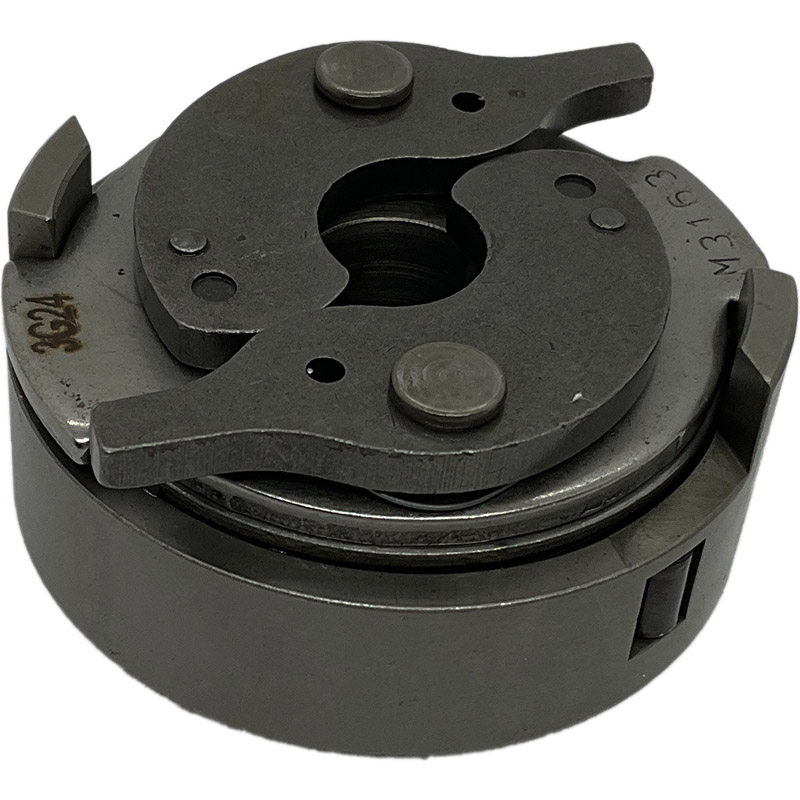

Slick Impulse Coupling M3163
$1001.00/Each
Price Includes GST
Part# 07-26944
MFR Model# M3163SP
MFR Model# M3163SP
Overview
| To order parts: Locate part number for your application in the table below, then scroll down to the bottom of the page and click on the corresponding order button. |
Reference Chart
| Description | 4301 | 4302 | 4303 | 4316 | 4330 | 4331 | Qty |
| Cotter pin | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | 1 |
| Nut | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | 1 |
| Washer | M3172 | M3172 | M3172 | M3172 | M3172 | M3172 | 1 |
| Impulse Coupling Assembly | M3007 | - | - | M3076 | M3068 | - | 1 |
| Oil Seal | M3062 | M3062 | M3062 | M3062 | M3062 | M3062 | 1 |
| Air Vent | M1077 | M1077 | M1077 | M1077 | M1077 | M1077 | 1 |
| Frame | M3859 | M3900 | M3859 | M3888 | M3888 | M3900 | 1 |
| Rotor | M3073 | - | M3338 | M3047 | M3065 | M3065 | 1 |
| Bearing Kit | K3318-4 | K3318-4 | K3318-4 | K3318-4 | K3318-4 | K3318-4 | 1 |
| Ball Bearing | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | 1 |
| Bearing Cap Clamp | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | 2 |
| Screw | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | 2 |
| Contact Point Kit-Primary | M3081 | M3081 | M3081 | M3081 | M3081 | M3081 | 1 |
| Contact Point Kit-Secondary | - | - | - | - | - | - | 1 |
| Rotor Gear | M3827 | M3827 | M3827 | M3827 | M3827 | M3827 | 1 |
| Woodruff Key | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | 1 |
| Coil Wedge | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | 2 |
| Coil*(see below) | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | 1 |
| Screw | M2555 | M2555 | M2555 | M2555 | M2555 | M2555 | 1 |
| Air Vent w/Hood | M3084 | M3084 | M3084 | M3084 | M3084 | M3084 | 1 |
| Screw | M3015 | M3015 | M3015 | M3015 | M3015 | M3015 | 3 |
| Housing, Dist. | M3902 | M3902 | M3902 | M3902 | M3902 | M3902 | 1 |
| Condenser | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | 1 |
| Dist. Block & Gear Assembly | K3822 | K3822 | K3822 | K3822 | K3822 | K3822 | 1 |
| Carbon Brush | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | 1 |
| Washer | M2532 | M2532 | M2532 | M2532 | M2532 | M2532 | 1 |
| Screw | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | 2 |
| Spacer | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | 2 |
| 4300 SERVICE PARTS LIST cont... | |||||||
| Description | 4342 | 4344 | 4345 | 4347 | 4348 | 4353 | |
| Cotter pin | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | 1 |
| Nut | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | 1 |
| Washer | M3172 | M3172 | M3172 | M3172 | M3172 | M3172 | 1 |
| Impulse Coupling Assembly | - | - | - | - | - | - | |
| Oil Seal | M3062 | M3062 | M3062 | M3062 | M3062 | M3062 | 1 |
| Air Vent | M1077 | M1077 | M1077 | M1077 | M1077 | M1077 | 1 |
| Frame | M3900 | M3900 | M3900 | M3900 | M3900 | M3900 | 1 |
| Rotor | M3548 | M3513 | M3548 | M3548 | M3513 | M3548 | 1 |
| Bearing Kit | K3301 | K3301 | K3301 | K3301 | K3301 | K3301 | 1 |
| Ball Bearing | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | 1 |
| Bearing Cap Clamp | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | 2 |
| Screw | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | 2 |
| Contact Point Kit-Primary | M3637 | M3637 | M3637 | M3637 | M3637 | M3637 | 1 |
| Contact Point Kit-Secondary | M3740 | M3740 | M3637 | M3637 | M3637 | M3637 | 1 |
| Rotor Gear | M3827 | M3827 | M3827 | M3827 | M3827 | M3827 | 1 |
| Woodruff Key | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | 1 |
| Coil Wedge | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | 2 |
| Coil*(see below) | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | 1 |
| Screw | M2555 | M2555 | M2555 | M2555 | M2555 | M2555 | 1 |
| Air Vent w/Hood | M3084 | M3084 | M3084 | M3084 | M3084 | M3084 | 1 |
| Screw | M3015 | M3015 | M3015 | M3015 | M3015 | M3015 | 3 |
| Housing, Dist. | M3874 | M3874 | M3832 | M3832 | M3832 | M3832 | 1 |
| Condenser | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | 1 |
| Dist. Block & Gear Assembly | K3822 | K3822 | K3822 | K3822 | K3822 | K3822 | 1 |
| Carbon Brush | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | 1 |
| Washer | M2532 | M2532 | M2532 | M2532 | M2532 | M2532 | 1 |
| Screw | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | 2 |
| Spacer | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | 2 |
| 4300 SERVICE PARTS LIST cont... | ||||||||
| Description | 4354 | 4370 | 4371 | 4372 | 4373 | 4374 | 4381 | Qty Used |
| Cotter pin | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | M2556 | 1 |
| Nut | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | M3019 | 1 |
| Washer | M3172 | M3172 | M3172 | M3172 | M3172 | M3172 | M3172 | 1 |
| Impulse Coupling Assy. | M3529 | - | M3163 | M3100 | M3529 | M3689 | M3007 | 1 |
| Oil Seal | M3062 | M3062 | M3062 | M3062 | M3062 | M3062 | M3062 | 1 |
| Air Vent | M1077 | M1077 | M1077 | M1077 | M1077 | M1077 | M1077 | 1 |
| Frame | M3859 | M3900 | M3859 | M3859 | M3859 | M3888 | M3859 | 1 |
| Rotor | M3158 | M3548 | M3158 | M3158 | M3158 | M3065 | M3158 | 1 |
| Bearing Kit | K3301 | K3318-4 | K3318-4 | K3318-4 | K3318-4 | K3318-4 | K3318-4 | 1 |
| Ball Bearing | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | M3006 | 1 |
| Bearing Cap Clamp | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | M3018 | 2 |
| Screw | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | M3221 | 2 |
| Contact Point Kit- Primary | M3637 | M3081 | M3081 | M3081 | M3081 | M3081 | M3081 | 1 |
| Contact Point Kit- Secondary | M3637 | - | - | - | - | - | - | 1 |
| Rotor Gear | M3827 | M3827 | M3827 | M3827 | M3827 | M3827 | M3827 | 1 |
| Woodruff Key | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | M2536 | 1 |
| Coil Wedge | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | M3040 | 2 |
| Coil*(see below) | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | M3975 | 1 |
| Screw | M2555 | M2555 | M2555 | M2555 | M2555 | M2555 | M2555 | 1 |
| Air Vent w/Hood | M3084 | M3084 | M3084 | M3084 | M3084 | M3084 | M3084 | 1 |
| Screw | M3015 | M3015 | M3015 | M3015 | M3015 | M3015 | M3015 | 3 |
| Housing, Dist. | M3832 | M3902 | M3902 | M3902 | M3902 | M3902 | M3902 | 1 |
| Condenser | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | M3183 | 1 |
| Dist. Block & Gear Assembly | K3822 | K3822 | K3822 | K3822 | K3822 | K3822 | K3822 | 1 |
| Carbon Brush | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | M3215 | 1 |
| Washer | M2532 | M2532 | M2532 | M2532 | M2532 | M2532 | M2532 | 1 |
| Screw | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | M3021 | 2 |
| Spacer | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | M3826 | 2 |
Reviews
Prompt service, got what I wanted.
Sidney A
October 21, 2019
The points were awesome! They opened and closed.
Dave
June 8, 2019
Works as advertised for the schools aircraft.
Ed B
October 16, 2017
The prices for these Slick mag parts is getting absolutely absurd. Not criticizing the quality, but $88 for a set of contact points that should realistically cost about $15. I know ACS is only the reseller and not the manufacturer, but come on. This is death by 1000 cuts.
Don K
April 28, 2021
