Engine | Rapco PN | Model | Description | Part Number |
---|---|---|---|---|
Continental | RA632837 | Solid Stainless Steel | Short Sleeve Rapco Exhaust Gasket RA632837 | 08-05237 |
RAPCO manufactures FAA-PMA approved exhaust gasket replacements for Continental and Lycoming engines. High quality, economical stainless and copper beaded gaskets. Extra thick spiral woundstyle available “Blow Proof”
Download Rapco Exhaust Gaskets Application Chart Download Complete Rapco Catalog PDF |
INEXPENSIVE

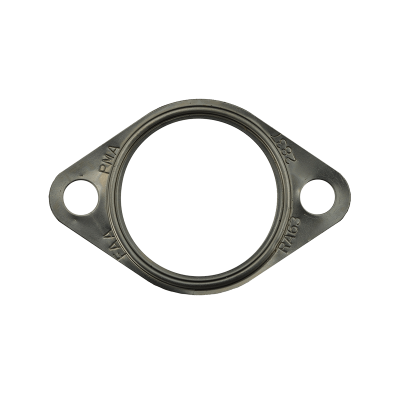

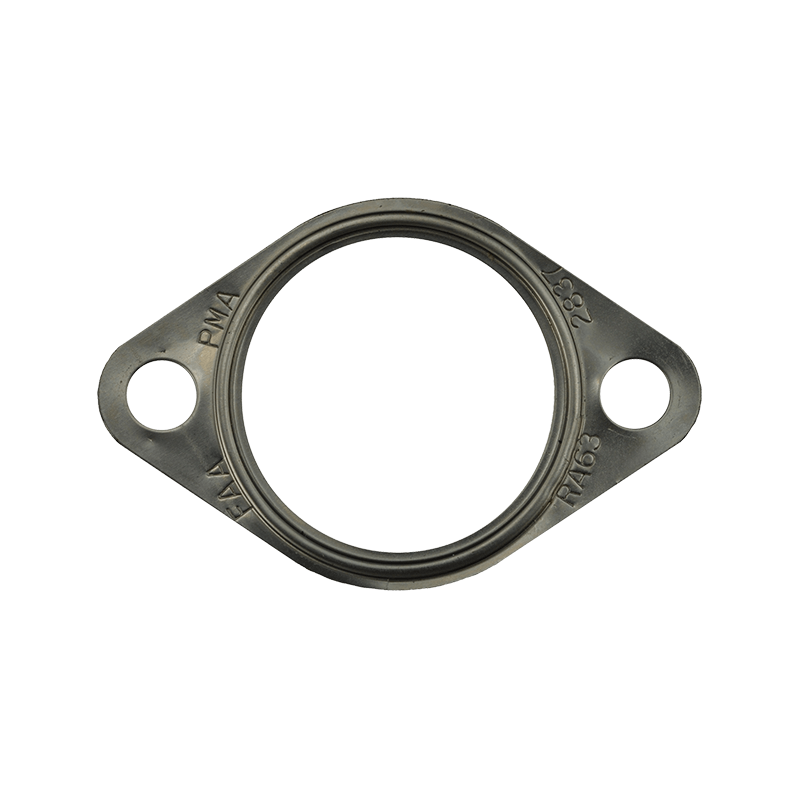

Short Sleeve Rapco Exhaust Gasket RA632837
2 stacked per flange
Short Sleeve Rapco Exhaust Gasket RA632837
These are stamped sheetmetal and youll want two for each cylinder. For best results, use them with the concave sides together with a wee bead of red RTV between them. then another wee bead of red RTV on each outer side of the sandwich, to ensure a very good seal between the head and the manifold.
Short Sleeve Rapco Exhaust Gasket RA632837
Working OK.
Short Sleeve Rapco Exhaust Gasket RA632837
Short Sleeve Rapco Exhaust Gasket RA632837
Works well.
Short Sleeve Rapco Exhaust Gasket RA632837
Good Quality from Rapco
Short Sleeve Rapco Exhaust Gasket RA632837
Good product, for the Continental GO 300 E are necessary 2 gaskets per exhaust, so 6 cilíndrese 12 gaskets.
Short Sleeve Rapco Exhaust Gasket RA632837
just the right part for my O300.
Short Sleeve Rapco Exhaust Gasket RA632837
It looks like the ones that came off the motor but I have not used at this time.
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Only one of the RA632837 gaskets are required per cylinder. The RA630365 have a raised bead that can be stacked if desired, but not required
This is used as one per cylinder.
Per Rapco: It is recommended that all exhaust gaskets, flat and spiral wound, are changed each time they are removed. They are designed to crush into place to block high temperature exhaust gases from eroding any uneven mating surfaces. If reused they may not seal properly.
Make sure cylinder and exhaust stack flanges are flat. Check aircraft maintenance manual for proper installation. In most cases solid gaskets should be installed in pairs with raised beads interlocked and facing away from the cylinder. Also check maintenance manual for exhaust nut torque spec. Re-torque after a hot run.
2.25" od, 1.765" id, .05 thick, 2.5" hole center to hole center.
