Engine | Rapco PN | Model | Description | Part Number |
---|---|---|---|---|
Continental | RA627429 | Spiral | Rapco Exhaust Gasket RA627429 | 08-05229 |
RAPCO manufactures FAA-PMA approved exhaust gasket replacements for Continental and Lycoming engines. High quality, economical stainless and copper beaded gaskets. Extra thick spiral woundstyle available “Blow Proof”
Download Rapco Exhaust Gaskets Application Chart Download Complete Rapco Catalog PDF |
Better than many ive used.

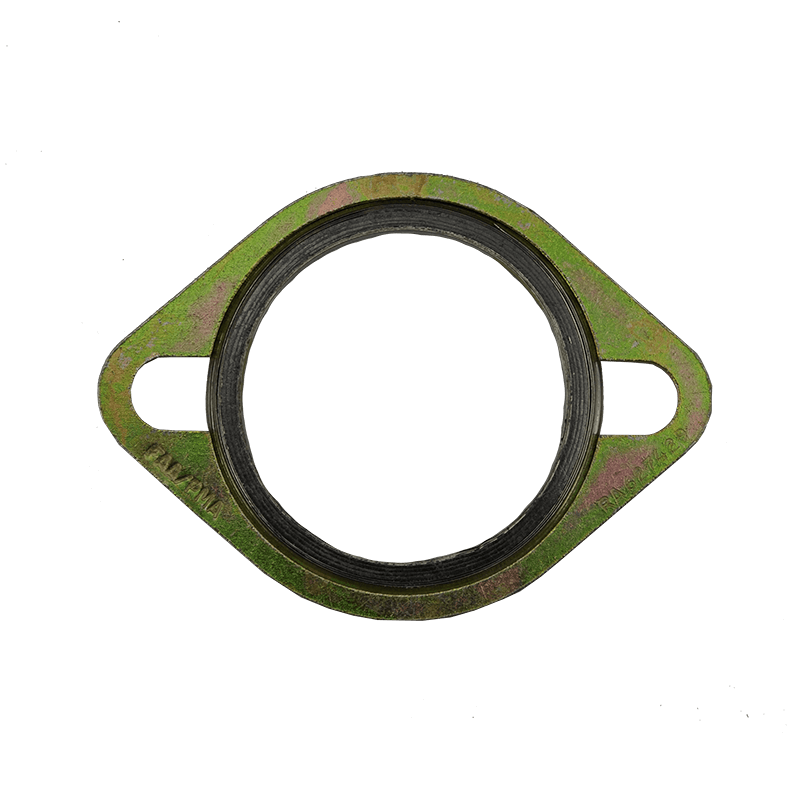

Rapco Exhaust Gasket RA627429
the best exhaust gasket
Rapco Exhaust Gasket RA627429
Rapco Exhaust Gasket RA627429
Great quality gasket. Installed no exhaust leak!
Rapco Exhaust Gasket RA627429
These appear to me higher quality than the originally seals.
Rapco Exhaust Gasket RA627429
Bought these and they are way thicker than the sheet metal ones that are supposed to crush. Mine were leaking before but probably because they were not doubled up like the instructions say. The center ring on these look like they should torque down nicely.
Rapco Exhaust Gasket RA627429
As Promised.
Rapco Exhaust Gasket RA627429
It looks like the ones that came off the motor but I have not used at this time.
excellent
just what needed to provide necessary clearance between intake and clamps on exhaust
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is used as one per cylinder.
Per Rapco: It is recommended that all exhaust gaskets, flat and spiral wound, are changed each time they are removed. They are designed to crush into place to block high temperature exhaust gases from eroding any uneven mating surfaces. If reused they may not seal properly.
2.25" od, 1.765" id, .05 thick, 2.5" hole center to hole center.
