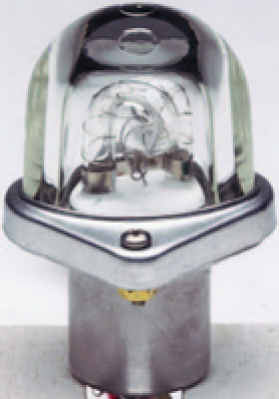

Whelen A625 Strobe Lgt Assembly Wh

$313.50/Each
Price Includes GST
Part# 11-03228
MFR Model# 01-0770058-03
MFG Model #DescriptionPart No.
A625Standard unit, clear lens
(FAA/PMA)
11-03228

Overview

A625 series has many different applications. It can be used for aircraft with tip-tanks with enclosed position lights (under a fairing), or as an add-on strobe on the wing or the tail. Available in a radio-shielded version.

Specifications

  • Drawing No: 70058
  • Weight: 0.2 lbs. (91gm) Exposed
  • Height: 1.7” (43mm)

Reviews

Ordered 4 items have gotten 3 one one back order, I received what I order and when AS said it would be there. You cannot ask for better service. Thanks and be safe. RH

Robert H
June 26, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the voltage of A625D Light (11-03569)?

Per the manufacturer, the voltage on this item depends on the power supply. If the power supply is 14 volts, then this light will produce 14 volts.

Q: Does the Whelen A625 series lightheads require a seperate power supply (other than + and - connection)? Overall dimensions? Is the bulb replaceable? thanks in advance

Yes, the A625 series does require a seperate power supply. Please see the Drawing and Additional Details sheet in the "Documents" tab of this web page for dimensional info as well as the replaceable flash tube assembly.

Q: Is it possible to connect the Whelen A625 directly to the battery or do you need an additional control unit to make it work?

The A625 would require a power supply. Please review the Whelen power supplies available to find the best one for your application.

Q: Is there a dedicated Whelen power or any power supply to connect 2 A625D wingtip strobe?

Whelen recommended our part number 11-02666.

Q: For the Whelen A625, do you have just bulb?

The flashtube assembly which would be the bulb for the A625 is our P/N# 11-03263.
