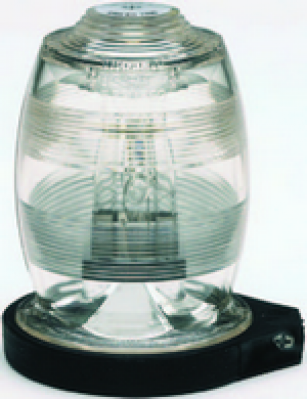

Whelen A470Ar Red Strb Head As
MFR Model# 01-0770019-18
| MFG Model # | Description | Part No. |
|---|---|---|
| A470AR | Standard assembly, red lens (FAA/PMA) | 11-03273 |
Overview
| A470A series remote strobe light assembly is compatible with all Whelen power supplies. It can be installed on the fuselage or the vertical fin. The unique polycarbonate optic lens and reflector design, re-directs stray light rays into the horizontal plane to provide the maximum 360º of uniform light coverage possible. Available in three different lens colors, aviation red, aviation white and split aviation red/white. Available in radio-shielded configurations. All assemblies require either the model H102 or H103 mounting adapter. |
Specifications
- Drawing Number: 70019
- Weight: 0.3 lbs. (136gm)
- Exposed Height: 3.75” (95mm)
- Diameter: 2.5” (64mm)
Reviews
Make sure you drill the hole in the bottom of the strobe if it is to be mounted on the bottom of aircraft. I made the mistake of not drilling and had to buy a new one due to water collecting in the unit.
Whelen lighting products are good quality but grossly overpriced. And in the last 2 or 3 years the prices of many of their things like LED beacons have increased 30% or more.
This item should come with a new connector for the wires, my did not
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The H102 adapter is used for flush mounting, and the H103 is used for mounting in a standard 3-3/4" rotating beacon hole.
Yes, this model A470A includes the curly bulb type. If you keyword search A470, the first result will be a parts breakdown which will show you the bulb you will receive.
Per the manufacturer, no, this unit is capable of running off of most power supplies. There is no one specific power supply for it. For example, WHELEN HDACF POWER SUPPLY (part # 11-16218) would work fine.
Yes, this is PMA approved.
It would require a power supply.
This part comes with the amp connector installed.
