Lonestar Sd Conv TSO 24-13.8Vd

$659.95/Each
Price Includes GST
Part# 11-04894
MFR Model# LS03-05003-(A)-138
Output VoltageOutput CurrentModel No.Part No.
13.8 VDC7.0C/7.5PALS03-05003-13811-04894

Overview

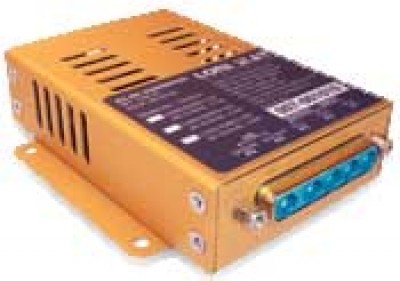

Ultra Small ( 2.5 x 3.5 inch) dc converter, the installer now has multiple mounting points. Its narrow body shape, mounting brackets, multiple voltages, and FAA-TSO make it the ideal candidate for aircraft and rotorcraft installs. With more demanding and sophisticated aircraft applications like EFB's systems, cell phone charging, computers, LCD, entertainment sub-systems this dc power supply is a real winner.

Features

  • Ultra Small size 2.5" x 3.5" x 1"
  • 93% Efficiency rating
  • Light Weight 100 grams / 0.220 lbs
  • Current Sharing up to 5 units
  • SMT Technology
  • Potentiometer for output adjustments
  • Universal Mounting (No Thermal concerns)
  • LED Status Indicators
  • Operating Temp: -55C to +70C
  • Circuit Protection: OV, UV, SC, SP, RP, OC
  • Regulation Load: 1.0%
  • Ripple: 18mVp-p
  • Transient response time .5 ms max at 13.8vdc
  • Easy installation
  • FAA TSO-C71 Approved

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these priced and sold individually or as a pair?

These converters are priced and sold individually.

Q: Does the Lonestar DC to DC converter come with the mating connector?

Yes, the mating connector is included.

Q: What is the input voltage for the 19vdc model Lonestar DC to DC converter?

22V-42V DC Input voltage range.
