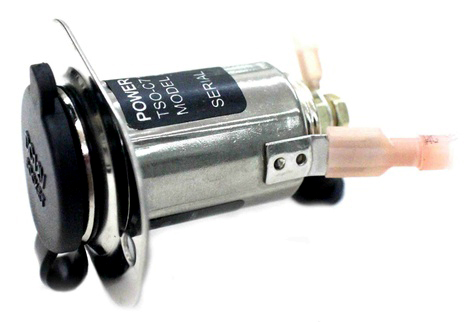

Lonestar 28V Cig Lighter Recp TSOD

3 Reviews 8 Answered Questions
$109.95/Each
Price Includes GST
Quantity
Add to Wishlist View More In This Series →
Part# 11-11133
MFR Model# LS03-05025 28V

Overview

Perfect for portable GPS systems, Cell Phone Chargers, Laptop Power Supplies, or anything you would plug into your car during a road trip. TSO'd Approved.

12V AIRCRAFT: If your aircraft runs on 12V you will not need any extra equipment to operate 12V equipment, and it comes with a rubber cap marked with DC12V.

24V AIRCRAFT: Please note, you will need a 28V to 12V converter to power most 12 volt consumer electronic devices.

Output Current: 8 Continous - 10 Peak Amps <

Documents

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Fits perfectly in the cigar lighter hole on the panel of my 1947 Cessna 140 and works well.

Michael T
April 12, 2021

Too d__n expensive but you have us between a rock and hard place.

Ted
March 15, 2021

Product delivered was high quality, and delivered on time.

Daryl R
March 30, 2017

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I have a 1973 C182P with a 14 v electrical system, 12 v Battery. Is this receptacle suitable for use in my aircraft?

Yes, this receptacle is FAA Approved for use in certified aircraft.

Q: Regarding the Lone Star TSO'd Cigarette Lighter Receptacle: What are the dimensions of the SS face plate? Width & Height? Screw center line dimension?

We have added the technical sheet to the 'Documents' tab of this web page. Please download and review them there.

Q: How are these FAA approved? What TSO was used or was there some other means?

Per the manuf. Certificate of Conformance, the parts meet FAA-PMA-TSO FACTORY NUMBER PQ0771SW-PT0771SW

Q: Does this have one or 2 usb outlets? Is it 2.1 or 2.5 amp power?

This is a receptacle and does not have USB ports. It is a cigarette port. The USB charger will need to be purchased separately.

Q: What gauge wire do you need for this being it's 10 amps on 12-14v aircraft?

16 gauge wire.

Q: Does the 24V model mean it accepts 24V and outputs 12V?

The operating voltage is between 10VDC - 32VDC, output is 13.8v.

Q: What makes this power receptacle different from the old school cigarette lighter? Does it have a different diameter and depth as compared to the traditional cigarette lighter Dimensions?

It is similar to most cigarette receptacles but this one has FAA approvals.

Q: Does this Lone Star require an STC to be installed in Certified aircraft?

No, this is a certified unit and the PMA approval can be downloaded for further information PQ0771SW/PT0771SW.
