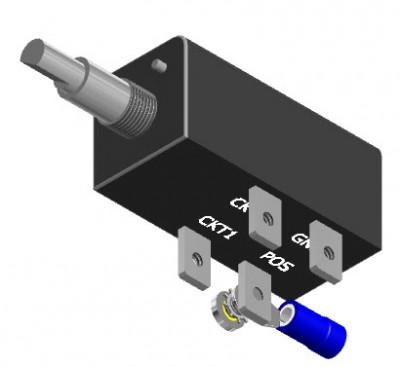

Microdim Dl Dmmr LED 6Mm
MFR Model# 9100-001-J LL6
Overview
|

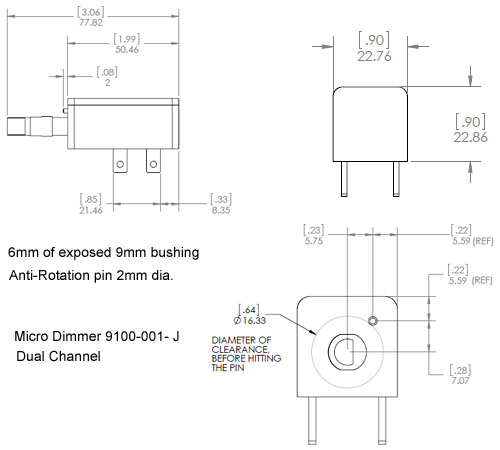

Microdim Dual Channel Dimmer - Dual Channel Unit 5 to 35 VDC, 0-7.5 A per channel, Control over 210 Watts In a .9" Inch square by 1.9” Package. Complete compact, light weight, powerful, solid state PWM dimmer. Sized for those tight panels with smaller dimensions and depth of 1.9". Bushing Selection: Please select the 6mm bushing for panel thickness of 2.2mm/.086" or less, and 11mm bushing for greater panel thicknesses. Lighting Selection: The Incandescent version will also control electroluminescence lighting. The LED/Incandescent version will control LED on one channel, and incandescent on the other. |
Documents
Specifications
- Voltage Range: 5VDC to 35VDC
Max Current: 7.5 A per channel
Dual channel device is the - “J”
Single channel device is the - “I”
Controlled Output: 5-35 VDC, 0-7.5 A per channel, Control over 210 Watts in a .9" Insh square by 1.9" Package
One or two channel units
- Capacity:
37.5 Watts @5 VDC each channel
90 Watts @12 VDC each channel
210 Watts @28 VDC each channel
262 Watts @35 VDC each channel
- Install with Standard Supplied solderless ring lug terminal
Potentiometer Rotation: 270° Rotational Life: 500K Turns
Internal temperature Protect: +85° C
Storage Temperature: -40° C to +100° C
Maximum Internal Temperature: @15A +15° C
Enclosure Material: Avantra 8731 polystyrene Meets UL 94
Flame Rating: Meets UL94V-0 (@ 0.062”/1.5 mm min.) rating
Conforms to RTCA/DO-160E SEC 21: RFE (EMI)
One Year limited warranty
Weight: 1.31 oz including knobs
Features
- Dual Channel control of aircraft Lighting - P/N 9100-001-J
- Aircraft instrument panel lighting
- Excellent control of Nulite instrument lighting
- LED PWM dimmer, low range enhanced
- RTCA/DO-160E SEC 21: RFE Qualified
- Instrument Panels
- Nulite dimmers
- UMA dimmer
- LED Glare shields, overheads
- Avion Glare shield dimmer
- LED lit panels
- Hundreds of DC Lighting Control applications
- Assembled in the USA
In The Box
- MaxDim Micro unit
- Installation instructions
- Color coded terminals
- Reference panel label

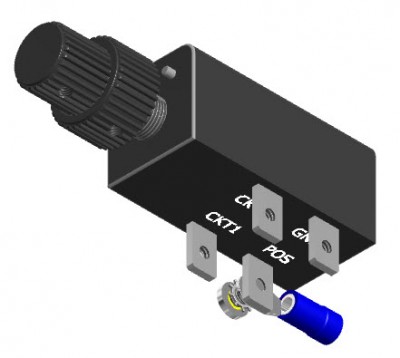

- Knob/s
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
No, these dimmers are NOT FAA Approved.
Per the manufacturer, if you turn the knob completely counterclockwise, the dimmer will turn to off.
