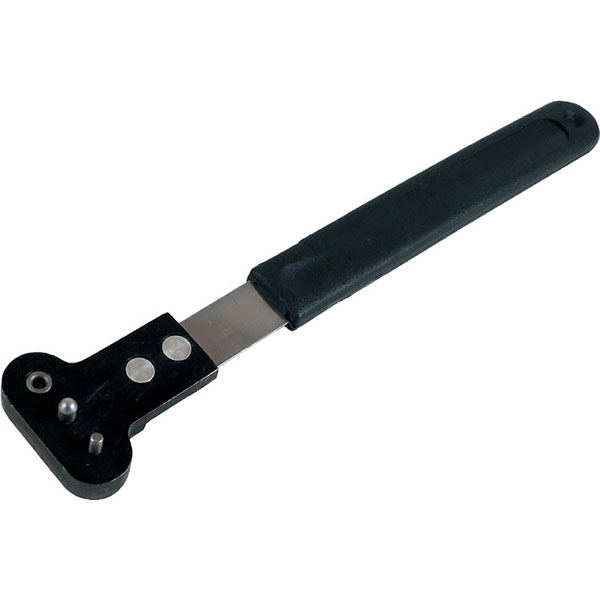

Two Lug Plate Nut Drill Jig 10-32
MFR Model# NPJ518C
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Mfr. PN | Nut Thread Reference | (C) Hole Spacing | (J) Hole Spacing | (P) Pilot Diameter | (K) Drill Size | Part Number |
|---|---|---|---|---|---|---|
| NPJ518C | 10-32 | 0.344 | 0.688 | 0.1910 | #40 | 12-04792 |
Overview
|
Two-Lug Double Wing Standard Nut Plate Jig (DWS). Two-lug double wing standard nut plate jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates), Omega Technologies' hand-held nut plate jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use. |
Reviews
Made & works well.
Verified Purchase
Two Lug Plate Nut Drill Jig 10-32
Worked perfectly,, will be saving many man hours on Zodiac build project
Verified Purchase
Two Lug Plate Nut Drill Jig 10-32
Works perfectly
Verified Purchase
Two Lug Plate Nut Drill Jig 10-32
The main pins were a bit tight so a little difficult to remove after drilling nutplate holes.
Good quality. Made the job easy.
Product description should mention that this tool is for only a certain style of nut plate. Thankfully did a test piece first. Rivet hole span is wider than the nut plates that came with the Zenith kit.
Verified Purchase
Two Lug Plate Nut Drill Jig 10-32
