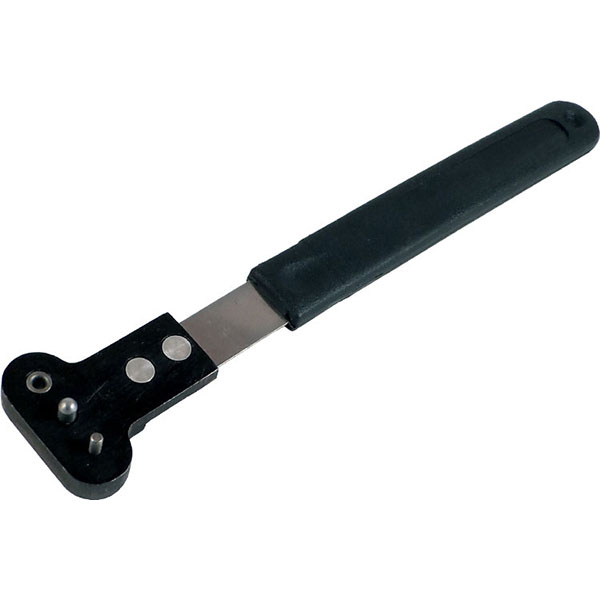

Two-Lug Plate Nut Drill Jig 1/4-28
MFR Model# NPJ518D
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| Mfr. PN | Nut Thread Reference | (C) Hole Spacing | (J) Hole Spacing | (P) Pilot Diameter | (K) Drill Size | Part Number |
|---|---|---|---|---|---|---|
| NPJ518D | 1/4-28 | 0.344 | 1.000 | 0.2480 | #40 | 12-04793 |
Overview
|
Two-Lug Double Wing Standard Nut Plate Jig (DWS). Two-lug double wing standard nut plate jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates), Omega Technologies' hand-held nut plate jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use. |
Reviews
made & works well , no issues
Verified Purchase
Two-Lug Plate Nut Drill Jig 1/4-28
Great price and MEGA fast shipping!
Verified Purchase
Two-Lug Plate Nut Drill Jig 1/4-28
The main pins were a bit tight so a little difficult to remove after drilling nutplate holes.
Good quality. Made the job easy.
