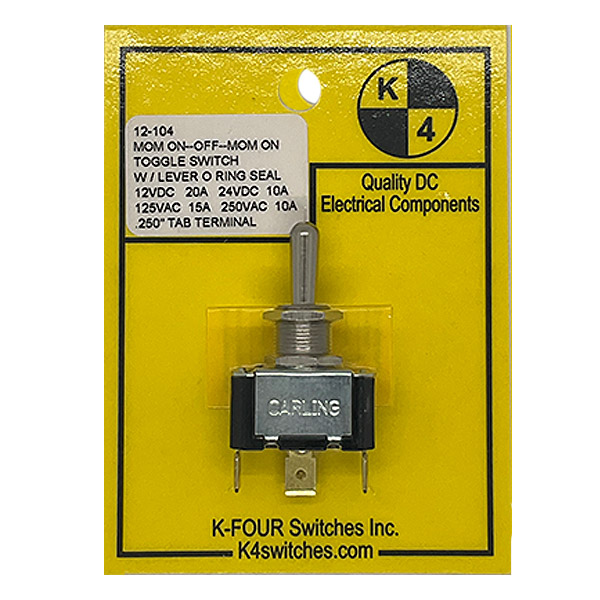

Lever Switch # 12-104
MFR Model# 12-104
Overview
SINGLE POLE--12 VOLT 21 AMPS--HEAVY DUTY HAS LEVER O' RING SEAL--SILVER CONTACTS .687 INCH LEVER LENGTH--.500 INCH MOUNTING HOLE .250 INCH TAB TERMINALS DOUBLE POLE--12 VOLT 21 AMPS--HEAVY DUTY HAS LEVER O' RING SEAL--SILVER CONTACTS .687 INCH LEVER LENGTH--.500 INCH MOUNTING HOLE .250 INCH TAB TERMINALS Note: ( ) Refers to Momentary |
Dimensions
Reviews
Excellent product and excellent service from A/C Spruce
Verified Purchase
Lever Switch # 12-104
Verified Purchase
Lever Switch # 12-104
Verified Purchase
Lever Switch # 12-104
👍
Verified Purchase
Lever Switch # 12-104
Carling are quality switches - bought 3 different styles
Will be used in the Zenith 750 Cruzer I am building.
Excellent switch.
Excellent switch.
How can you give anything but a 5 star rating to a $7.80 switch? So, I’ll use this opportunity to give Aircraft Spruce a 5 star rating in general. I have ordered many parts from them for my Cessna 150F (Plane Jane) and have always received the correct, quality part promptly. I have also appreciated being able to call them for assistance in choosing the correct product for my aircraft.
On. Off. It does both! Does this mean it’s a multifunction switch? No worries. I put it in over a year ago and it’s worked flawlessly.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The width of the double pole switches is approximately 3/4".
These are all double pole switches. The difference is in the operation. () means momentary, so 12-202 is ON-ON, 12-203 is ON-OFF-ON, and 12-204 is (ON)-OFF-(ON).
There is a drop down selection box to first select if you want single pole or double pole, the second box is where you select the model, ie OFF-ON, OFF-(ON), etc
No, for certified please consult with your local avionics shop.
Single pole option is a switch that controls one path. A double pole switch is a single switch that controls two paths.
The model 12-204 has .26 Tab Terminals.
Correct, The () means the momentary position. The 12-101 is an OFF-(ON) switch. The lever stays in the off position unless it is toggled to the opposite position, and will return to the off position once it is released.
No, these switches do not have FAA Approval.
Yes, the toggle switch is rated for 12VDC.
The keyway is on the same side as the momentary position.
