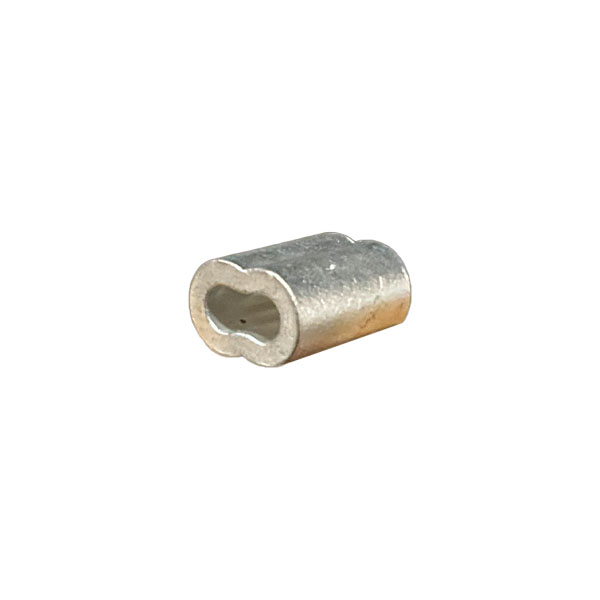

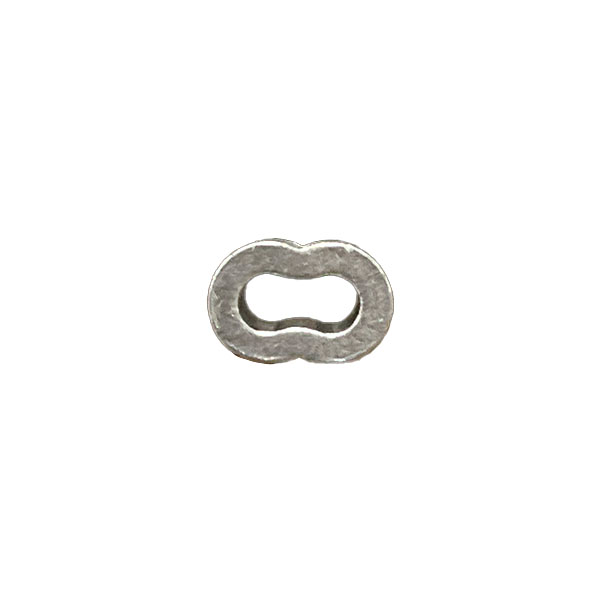

Tin Plated Cresent Sleeves 1/8 SL2-4Tp MS51844-84

$0.83/Piece
Price Includes GST
Part# 15-05075
MFR Model# SL2-4TP

Overview

Nicopress swages

Material: Tin

Reviews

Exactly what I needed, hassle free ordering and at a fair price!!!

Chris W
November 2, 2024

top quality

Gregoire P Verified Purchase

Tin Plated Cresent Sleeves 1/8 SL2-4Tp MS51844-84

October 5, 2021

Good product ,good service fast delivery

Edgardo G
January 25, 2021

Great!!!

Guest A
November 25, 2020

Great product.

Greg P
September 14, 2020

Worked very well.

James
April 20, 2020

Perfect! Perfect size and clean, ready to install.

Daniel F
April 19, 2020

Very nice product, speedy delivery

Robert A
March 22, 2020

Just what I needed

Kenneth T
March 5, 2020

Good pricing!

Thomas N
December 21, 2019

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Which nicropress sleeves are used for stainless steel control cable?

Tin coated sleeves are used with stainless steel cable.

Q: How long are these nicopress swages?

The 3/32 oval swage (15-05074) is 3/8" long and the 1/8 oval swage (15-05075) is 5/8" long

Q: Which tools are needed for fitting sleeves?

We have several installation tools to choose from. They are on page 775 of the 2013-2014 catalog. 12-12000, 12-12100, 12-12200, 12-12400, 12-00222, 12-02560, and 12-02561 are examples (see accessories). Verify the size tool will work with the sleeve to be used.

Q: What is the composition of these nicopress swages? Copper? And what is the coating? Zinc? Tin?, or something else?

These swages are copper sleeve with tin plating.

Q: Could you inform the procedure to installation the swaging sleeve MS51844-42 with the nicopress swaging tool 64-CGMP?

The proper cable sleeve swaging procedures are explained and illustrated in the FAA 43.13 acceptable, methods and practices publication.

Q: What is the part number for 1/4 inch diameter cable nicopress? You sell 1/4 inch cable, 1/4 inch thimbles, but I dont see the 1/4 inch nicopress...

See part # 04-01634

Q: what size for 6aw wire?

You will need P/N# 15-09446 for this gauge of wire.

Q: Will 3/32 sleeves work on 1/16 cable?

No, you would want to use the correct sized sleeves for the cable. We have 1/16" sleeves under part number 05-03288 in copper and 15-09444 for tin plated.

Q: What are zinc plated sleeves used for?

You would use zinc or tinned sleeves on stainless cables to avoid some corrosion issues.
