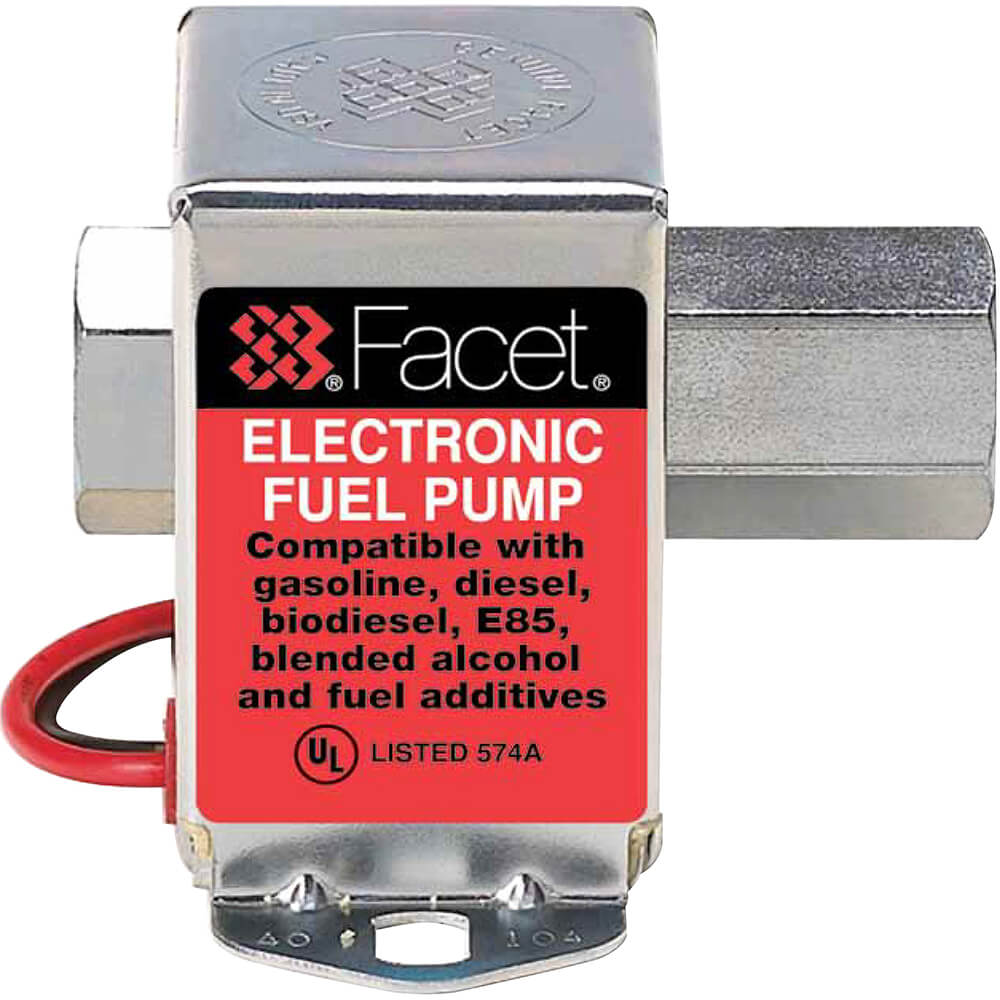

40106 Facet Solid State Fuel Pump

$78.93/Each
Price Includes GST
Part# 40106
MFR Model# 40106
Facet No.VoltsPSI Max-MinGPHFitting SizeLift Min. DryCheck ValvePositive Shut-Off
Valve
DescriptionPart No.
40106127.0-4.0321/8- 27 INT36"NNFacet Solid State40106

Overview

Note: Facet fuel pumps are not FAA approved and are not intended for aircraft use.

These pumps measure less than 3" in any direction and weigh only 18 oz. Fuel is supplied as soon as the ignition is turned on so the engine will start faster at colder temps. Built-in pressure relief prevents flooding and assures fast re-starts on hottest days. The all-steel plated case is water tight. Mounts with two bolts. For best results, mount the pump close to the fuel tank and below the liquid level.

The tank is self-priming to 12" to 36" Lift min dry. Standard 12 V models require only 1 amp at max. delivery. Many models are available, but these are the ones recommended by Rutan Aircraft Factory, Stoddard Hamilton and many other aircraft designers. All of the pumps shown feature the all nylon valve and plunger as specified by Rutan Aircraft in the Canard Pusher newsletter.

Features

  • 12 - 84 inches minimum dry lift
  • 6 - 50 GPH
  • 1 - 15 PSI
  • Transient Protection
  • State of the art Electronics
  • Sealed Electronics
  • Reverse Polarity protection
  • Built in check valve
  • ELV Compliant
  • 1.6 amp average
  • Self Priming and Self Regulating
  • 18 ounces and 3 inches

Benefits

Fuel Compatibility:
  • All models of the Facet® CUBE® Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.
Solid State Reliability:
  • Proven on thousands of original equipment applications. No electrical contacts. No bearings or diaphragms to wear out or fatigue. Lasts four to five times longer than many other electric fuel pumps.
Easy to Install:
  • Two-bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank and below the liquid level.
Eliminates Vapor Lock:
  • When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Reviews

facet fuel pump

Bob D Verified Purchase

40106 Facet Solid State Fuel Pump

June 3, 2024

Best back up pump ever for 912. Too bad they dont make it with AN fittings anymore.

Vortex A Verified Purchase

40106 Facet Solid State Fuel Pump

June 27, 2023

As ordered, couldnt be happier.

Joseph B Verified Purchase

40106 Facet Solid State Fuel Pump

November 5, 2021

Product worked as advertised and tanks much!

Jimmy P Verified Purchase

40106 Facet Solid State Fuel Pump

October 20, 2021

Product worked as advertised and tanks much!

Jimmy P Verified Purchase

40106 Facet Solid State Fuel Pump

October 20, 2021

Was what I ordered. New in box.

Randy G Verified Purchase

40106 Facet Solid State Fuel Pump

July 16, 2021

Appears to be very good quality and functions very well. Im using it as a priming pump and backup to the original mechanical pump on a 1939 Mercury V8 engine, regulated to ~2 psi output.

Glen E
June 30, 2021

Excellent low pressure back up pump on my Avid C with Rotax 582

William M
April 6, 2021

As advertised and quick delivery

Ian
March 15, 2021

Excellent product, shipping on time. 100% recommended

Jahrol
March 7, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Hi, Would these pumps work for fuels in gaseous forms as well? Thanks

Per the manufacturer, no, these are not recommended for fuels in the gaseous state.

Q: Does the 40108 pump have AN flair fittings at 37 degrees?

Yes, it has a 3/8" male flare fitting, AN-6, attached to the pump.

Q: How do you identify which model a pump is? There are various numbers on them (especially a lot of patent numbers), but I can't find any number that matches the numbers you show here in the online catalog.

The part number of the pump is always etched into the mounting flange on these Facet fuel pumps. For example, the 40105 has 40 105 etched into the mounting flange on one side, and on the other flange is 12V 14D.

Q: Regarding pump # 40108, can this pump be mounted in any position? .....vertical, upside down, etc.

It can be mounted vertically, but the manufacturer does not recommend it being mounted upside down.

Q: Hello- pump number 40241 is listed as having female flare fittings. Does that mean AN fittings or what? More info please! Thanks.

The unit has female SAE J512 threads, which have a 45* flare. AN fittings have a 37* flare, and can not be used with each other.

Q: I recently bought a fuel pump pn:40289 as a backup for my other fuel pump. It will be installed on a Challenger 2 with a rotax 503. My question is what fittings do I need so I can connect my Bing fuel lines directly to the pump?

The pump you ordered has 1/8" NPT threads, and the carbs use 1/4" fuel line. You'll want to use two brass nipples part number AN840-4, and whatever clamps you prefer.

Q: I have been looking at a low pressure pump with no check valve to use as a primer pump to my fuel injected engine. In many places on the internet I have found these pumps with a large warning saying not to use with fuel injected engines. Can these pumps be used in a fuel injected setup as a primer for the main pumps?

Yes, you can use these pumps as the priming or lift pump, however you should choose the pump with enough GPH for your engine.

Q: Is Facet model number 40178 rated for Avgas?

Yes, this should work just fine with Avgas.

Q: Does FEP-42SV include the fuel pump or is it just an installation kit?

This includes the pump as well.

Q: What is meant by positive shut off on a facet fuel pumps?

It means when the pump is shut off the fuel for the most part wont pass through the pump. So this would not be the pump you want if you have another fuel pump that is drawing through one with a positive shut off.
