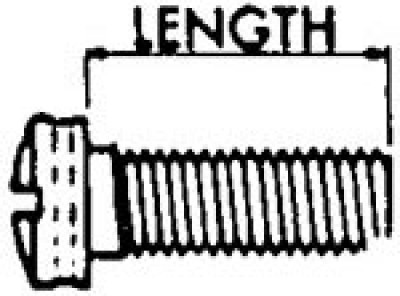

Part Number | Type | MS Dash # | Length (in.) | Thread Size |
---|---|---|---|---|
AN500-A8-8 | Coarse Thread | MS35265-45 | 1/2 | 8-32 |

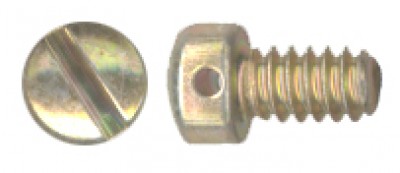

All part numbers will follow this format: AN###. To further distinguish between the part numbers, you'll notice that a dash ("-") has been added, followed by some specific variation of more numbers. If there is an "A" after the dash, the part is cadmium plated, Type II, Class 3, with a drilled head. If there is NOT an "A" after the dash, the part is Cadmium plated, Type I. AN500 (coarse thread) and AN501 (fine thread) slotted fillister head screws are fabricated from carbon steel. Tensile strength 55,000 PSI AN502 (fine thread) and AN503 (coarse thread) drilled head, slotted fillister head screws are fabricated from steel meeting specification MIL-S-6050. Tensile strength 125,000 PSI. Cadmium plated, Type II Class 3. |
Just as advertised.
My first order was to see if these were correct length(no grind down to fit) for SU Carburetors Suction Chamber screws,This is my 2nd order of these Fillister Head screws as they are better than stock head diameter and of course Safety Wire Drilled !! Wont use anything else on my Carb Rebuilds !!
1st order to make sure they were correct for my carb rebuilds !! And they are perfect for 60s era SU Carb resto race look !! Thanx
As described, fit well, functions fine. Its a flat piece of rubber with a bunch of holes, so not too much else to say.
Prefect length for C-85 lower center valve rocker cover when the standard 3/8 length has stripped..
Well, its a gasket, but it does fit perfectly and my brakes quit leaking, so its a win!
a screw is a screw....
Great quality and fast shipping.
Perfect fit and great finish coating. Pricing was very reasonable.
Its a filler plug gasket. These cylinders dont use a vent.
