Aerox High Duration Aviation Oxygen Systems
Overview
|
Note: All systems include flowmeters and cannulas and require refilling adapter unless, at an airport. Prior to the introduction of the Aerox system, wise pilots reserved the use of oxygen for situations where it was legally necessary, i.e. above 12,500 ft. This was often a practical decision based upon factors like Short duration of supply, uncomfortable masks, difficult & costly refills, heavyweight and large bulk. Aerox systems address these objections with advanced designs and materials that help make oxygen use easier, more comfortable, and less expensive than ever before. Add to your flying comfort by using oxygen at altitudes as low as 5000 feet. Aerox Oxygen Systems include lightweight aluminum cylinders, regulators, all hardware, flowmeter, and nasal cannulas (masks available as an option). Oxysaver oxygen saving cannulas and Aerox Flow Control Regulators increase the duration of oxygen supply about four times and prevent nasal irritation and dryness. The Emergency Oxygen Packs are lightweight aluminum, refillable, & have no life limit. Just put on the mask and open the valve; no adjustment is needed. Complete brochure available on request. Note: Comes with 500 series regulator. |
Whats Included
Specifications
| Cylinder Specifications | |||
|---|---|---|---|
| CALL OUT CODE | CYLINDER CAPACITY | CYLINDER SIZE | FEATURE |
| A | 6 cu. ft. (170 Liters) | 11.5" L X Ø3.25" | GAUGE |
| C | 9 cu. ft. (254 Liters) | 10.75" L x Ø4.38" | GAUGE |
| D | 14.6 cu. ft. (413 Liters) | 16.5" L x Ø4.38" | GAUGE |
| M | 22 cu. ft. (648 Liters) | 16.5" L x Ø5.25" | GAUGE |
| E | 24.1 cu. ft. (682 Liters) | 25.5" L x Ø4.38" | GAUGE |

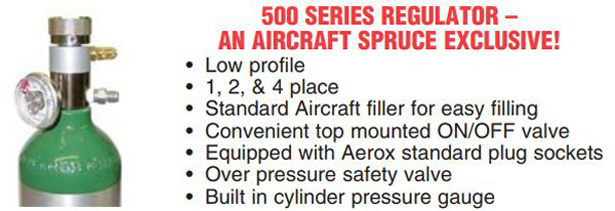

Benefits
- 1, 2, & 4 place
- Standard Aircraft filler for easy filling
- Convenient top-mounted ON/OFF valve
- Equipped with Aerox standard plug sockets
- Overpressure safety valve
- Built-in cylinder pressure gauge
Documents
Reviews
Verified Purchase
Aerox System 2E 22 Cu Ft.
The system has everything you need and work very well
Verified Purchase
Aerox System 2M 22 Cu Ft.
This is exactly what I wanted for travels in my RV7. I used to borrow a friends tank, but due to moving, I had to get my own. As I get older, I find my blood ox rate goes down much faster than when in my 20s and 30s. This O2 system is a great insurance package for when I need to get up higher due to turbulence or clouds. From past experience it really works.
Verified Purchase
Aerox Aviation Oxygen System 2C 2 User 9 Cu Ft Cylinder
Great product, works perfectly! Got me to Colorado safely.
Verified Purchase
Aerox System 2D 13 Cu Ft.
Fits nicely between seats in RV7.
Verified Purchase
Aerox Aviation Oxygen System 2C 2 User 9 Cu Ft Cylinder
Worked well. Zero issues.
Verified Purchase
Aerox Aviation Oxygen System 4M 22 Cu Ft 4 Place
Verified Purchase
Aerox System 2M 22 Cu Ft.
All orders came through in good shape, and delivered on time. Thank you Bill Bean
Great product come full and ready to use with accessory!
Works as advertised. Arrived serviced. Flow regulating knob could be slightly lager to facilitate adjustment.
Verified Purchase
Aerox System 2D 13 Cu Ft.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
In this situation, the oxygen would only be flowing to your mask, not to the unused outlet.
3-1/4" diam x appx 17" in length. There is no dial but it has a needle valve which is used to adjust the flow.
These systems include the Oxy-Saver Cannula and also comes with a Re-Breather mask.
Per the supplier: 9 cu. ft is 4-3/8" diameter X 13" length, 5.6lbs and 13 cu. ft is 4-3/8" diameter X 19" length, 7.6 lbs.
The difference is in the shape of the cylinder. You can see with the images on this web page that the "E" cylinder is tall and thin and the "M" is a little shorter and fatter. Both have 4 outlets.
Yes, Aerox high duration aviation oxygen system comes filled with oxygen. Please note that if this is shipped outside the United States, The tank is depressurized for shipping purposes.
Yes, these include the 500 series regulator. Per the supplier: Our D cylinder is 4-3/8" diameter and 19" in length.
These portable units are most commonly mounted with Aerox Padded Seatback Holders (See Accesories).
Per Vendor: If you have a standard 500 series regulator you would be ok. The fitting on the servicing port for the regulator is the same as the one on most aircraft. If the FBO can't fill a Cessna, they won't be able to fill this cylinder without the adapter.
Yes, this would come with 2 cannulas.
