Aeronav IFR Gulf Of Mexico West Chart

$18.15/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 13-08004
MFR Model# IFRGMW

Overview

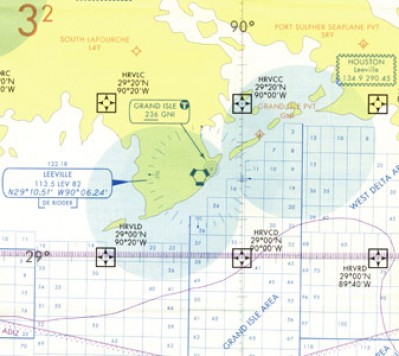

IFR Gulf of Mexico Chart is designed for helicopter operations. These 5-color charts depict an IFR GPS waypoint grid system that aids in the direct routing to oil platforms in the Gulf. NAVAIDs and airport data are shown on this chart along with special use airspace and oil lease block information.

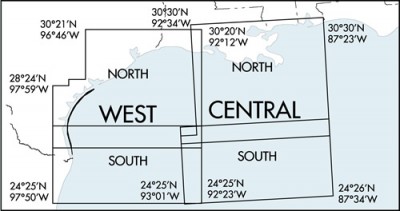

The IFR Gulf of Mexico West chart depicts the west side of the IFR Gulf of Mexico Vertical Flight Reference Chart with an additional 2½ degrees of coverage on the back.

Chart: Scale 1 inch = .86nm/1:500,000; 45 x 36 inches flat or 5 x 9 inches folded. Revised annually.
