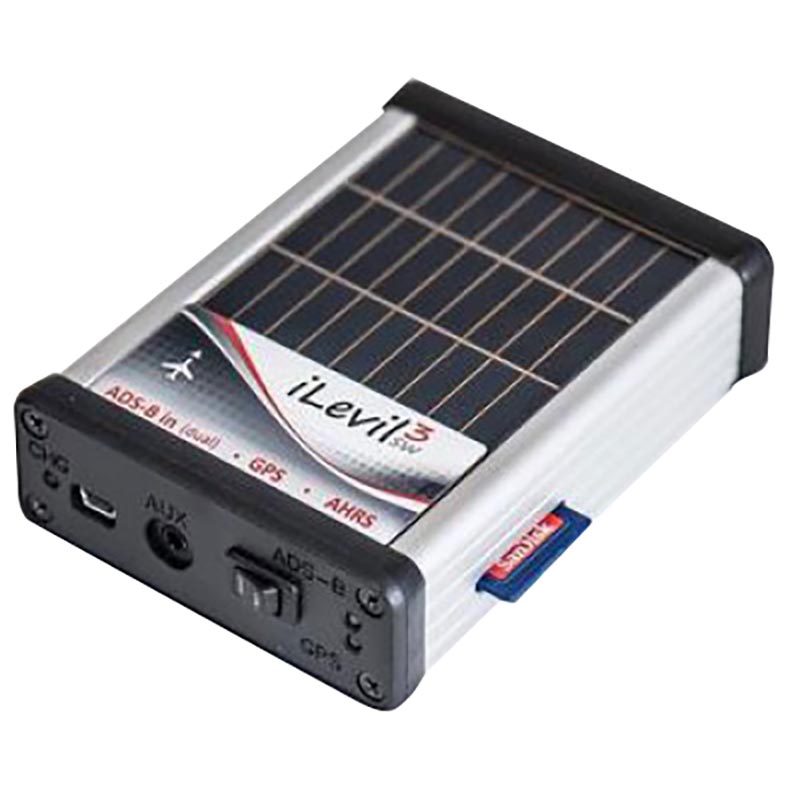

Levil Portable Attitude Indicator Ilevil 3 Sw

$1207.80/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-14492

Overview

The next generation of iLevil is here! and it brings exciting features and capabilities. This portable tool combines the latest in GPS, AHRS, ADS-B, and Data Recording technology to bring pilots an affordable backup solution that is both Android and iOS compatible. The internal GPS and AHRS provides all the navigation information you need to turn your tablet into a real glass panel. The embedded dual band ADS-B receiver allows you to monitor weather radar, METARS, etc in addition to traffic information all at your fingertips AND without any subscription. The iLevil3 SW adds the Data Recording feature which allows you to insert a SD Card and record all of your flight data (position, airspeed, altitude, attitude, etc.) and display the information on various platforms. You have to option to preset your desired file recording format, depending on how you wish to use the data (.gpx,.fdr, or .csv). The SW model also has a large solar panel, outstanding ADS-B reception, enhanced GPS sensitivity and compatibility with your favorite apps making it our most popular product for General Aviation...

Features

AHRS (Attitude and Heading Reference System)
  • No-drift technology: your iLevil is individually and meticulously calibrated for optimal performance to provide un-matched accuracy even during aerobatics.
  • Attitude is independent from GPS: provides peace of mind at all times
  • No-lag, No-tumble: the AHRS data is refreshed at 14 frames per second, and the maximum rate of turn is 500 deg/sec! Suitable for aerobatic flying
  • Drives Synthetic Vision: provides the best calculated pitch, roll and heading information wirelessly to your favorite SV Apps.
GPS:
  • Supports WAAS for better GPS triangulation
  • Reliable, accurate GPS signal eliminates GPS dropouts as opposed to tablet GPS
ADS-B receiver (978 MHz/1090 MHz):
  • Power efficient design: Maximizes reception while maintaining low power consumption, thus reducing operating temperatures and increasing battery life.
  • Super sensitive receiver: No need for remote antennas! Captures weather and traffic information even where the competition simply won’t reach.
  • Amazing situational awareness:
    • Free in-flight weather information (USA only)
    • Air-to-Air traffic from ADS-B out equipped aircraft
    • Ground to Air rebroadcast of traffic (USA only)
WiFi capability:
  • Build the panel of your dreams! No other device offers as much compatibility as the iLevil series! You can combine multiple devices simultaneously with your favorite App for redundancy, or different Apps for diversity
  • iOS/Android compatible. You are not limited by a specific platform. iLevil is even compatible with wearable technology such as smart watches and Augmented Reality Glasses
  • Simple and Elegant, wireless equipment saves you time, space and money by facilitating installation. Forget about the wiring diagrams and complicated harnesses, you can have a jet-like glass cockpit in a matter of minutes
Solar panel:
  • Charges battery extending run time for an extra hour during flight
Relay Technology:
  • The only WIAM that connects your tablet with your panel
  • Using iLevil’s integrated serial ports, data is relayed from panel mounted avionics to tablet and vice versa. This feature allows you to unleash the power of your tablet and gives you access to functionality that otherwise would not be possible with other WIAMs
  • These are some of the functionality currently available:
    • AutoPilot Flight Following using the latest TruTrak’s technology and Xavion’s Smart Guidance and Autopilot control App
    • Engine Information Display when using the Grand Rapid Technology’s EIS
    • GPS NMEA output required by ES transponders and ADS-B out equipment
    • FLARM and TCAS data relay
    • ADS-B weather and traffic display on panel mounted glass cockpits

Specifications

  • WAAS GPS (antenna inside)
  • Roll, Pitch, Magnetic Heading, Rate of Turn, Inclination, and G-meter data output
  • WiFi Access Point (enables +10 devices connected to the same iLevil)
  • 978/1090 MHz ADS-B receiver for free in-flight weather and traffic
  • Integrated solar panels recharge the batteries over time or extend the standard 5- hour battery to 6 hours on a bright sunny day
  • 3-axis gyros, accelerometers and magnetometers professionally calibrated for aviation-grade performance.
  • Micro-USB communication for remote firmware updates, data transfer and battery charging
  • Automatic ON/OFF operation through 3.5 mm audio jack using regulated 5V
  • IN/OUT serial communication (allows data transfer to/from other hardware inside the cockpit, i.e. Zaon traffic, panel mounted EFIS displays)
  • Operating temperature: -10° to 60° C (14°-140° F)
  • Everything integrated in a small package: 3.2"x4.2"x1.1"

In The Box

  • Wireless iLevil 3 SW
  • USB to Mini USB cable
  • ADS-B Antenna
  • Rubber stoppers or rubber pad
  • Protective bag
  • SD Card
  • User Manual

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the Levil 3 SW compatible with flyq?

Yes, the 3 SW is compatible with the flyQ EFB app.

Q: Is the Levil 3 SW compatible AirNavigation Pro?

Yes, AirNavigation Pro is as one of the compatible applications with the Levil 3 SW.

Q: Is the Levil 3 SW compatible with Garmin Pilot?

Per the Manufacturer, part # 11-14492 is not compatible with Garmin Pilot.

Q: Is Levil 3SW compatible in Europe?

No, this will not work in Europe.
