Rosen Sun Visor Systems

Price Includes GST
Quantity
Add to Wishlist

Overview

Attention: Products noted in "Application Guide" with an ( * ) are sold in pairs.

Don't fly blind! Give yourself and your passengers that extra margin of safety. These are transparent sun visors which rotate and extend to offer complete cockpit protection form the sun. The oversize, tinted lens filters out 95% of the ultraviolet rays, reduces glare by 94% and heat by 86%. Distortion free. Fully STC'd and PMA'd. The system, which includes pilot and co-pilot visors, installs in minutes

(exceptions: Cessna non-pressurized 210 requires 1-1/2 hours, Cessna 152 requires rivet nut installation by an A&P).

Rosen Third Axis Update Kit This update kit will fit any Rosen system that does not come standard with third axis option (Piper systems, for example, come with third axis standard) See Accessories

Application Guide & Specs

Beech

Description

Specifications
Part Number

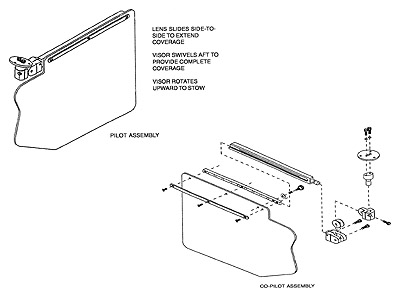

Bonanza/Baron, Standard

Click Image to enlarge
Approx. lens size: 10” x 13”,
Installation Instructions
,
Application Data
7568*
Bonanza/Baron,
Third Axis Option
7311*

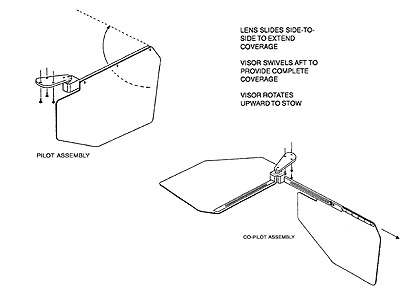

Duke

Click Image to enlarge
Approx. lens size: 11” x 13”,
Installation Instructions,
Application Data
7738*

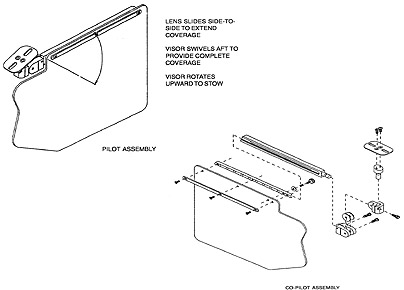

King Air

Click Image to enlarge
Installation Instructions,
Application Data
13-01927*

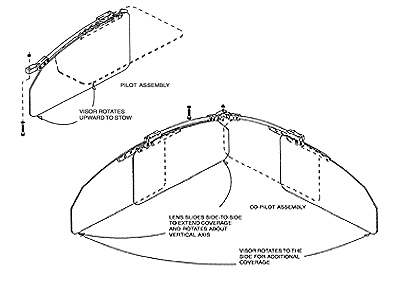

Mooney

Description

Specifications
Part No.
1968 and later models original visors mounted on right or left side (not on center post)

Click Image to enlarge
Approx. lens size: 13” x 7”
,
Installation Instructions,
Application Data
7762*
Piper

Description

Specifications
Part No.

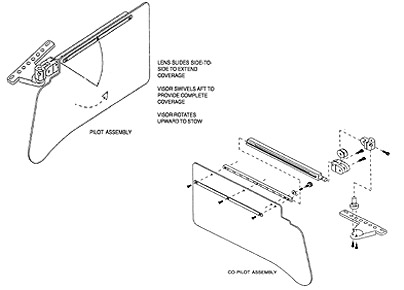

Comanche, All models, Standard

Click Image to enlarge
Approx. lens size: 9-1/2" x 13"

Installation Instructions,
Application Data
7809*
Comanche, Third Axis Option
7924*

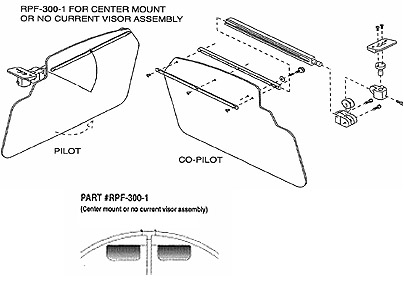

Cherokee, Center Mount

Please Note: If your Aircraft is 1995-96 or newer with overhead switch panel on overhead console, our visor lens will interfere and there is not a Rosen replacement sunvisor system available.

Click Image to enlarge
Approx. lens size: 9" x 14"

Installation Instructions,
Application Data
13-01315*

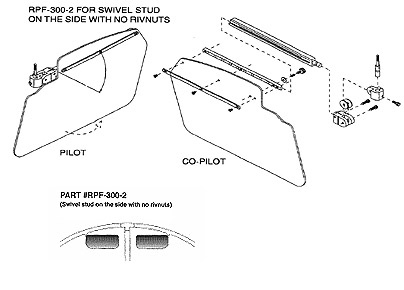

Cherokee, Swivel stud

Click Image to enlarge
Approx. lens size: 9" x 14"

Installation Instructions,
Application Data
13-01316*

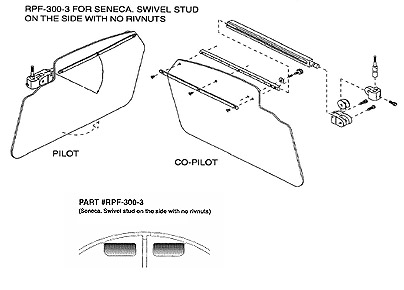

Seneca

Click Image to enlarge
Approx. lens size: 9" x 14"

Installation Instructions,
Application Data
13-01317*
Arapaho Comanche

Approx. lens size: 9" x 15"

Installation Instructions,
Application Data

13-07454*

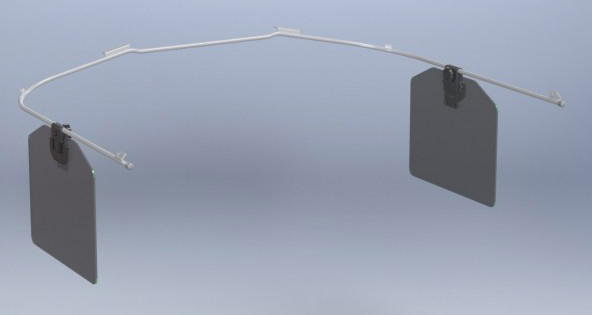

Aerostar Monorail

Approx. lens size: 9" x 15"

Installation Instructions,
Application Data

13-15027
Cheyenne with 3rd Axis Visor Assembly

Approx. lens size: 9" x 15"

Installation Instructions,
Application Data

13-15029

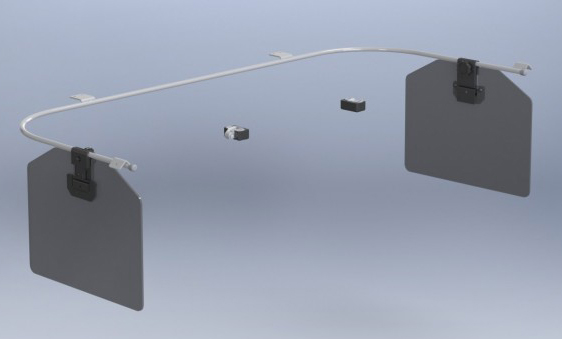

Cheyenne Monorail with Visors
13-15028

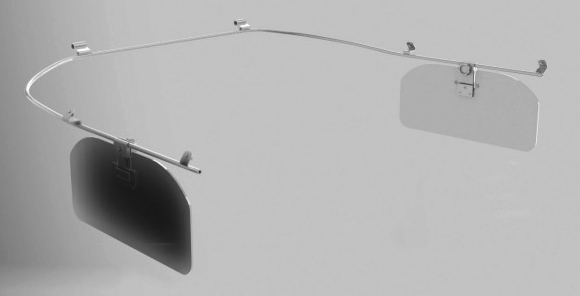

Malibu with lights above Windows

Approx. lens size: 9" x 15"

Installation Instructions,
Application Data

13-15030
Malibu Meridian (2008 and on,
center overhead light panels)

Approx. lens size: 9" x 15"

Installation Instructions,
Application Data

13-15031

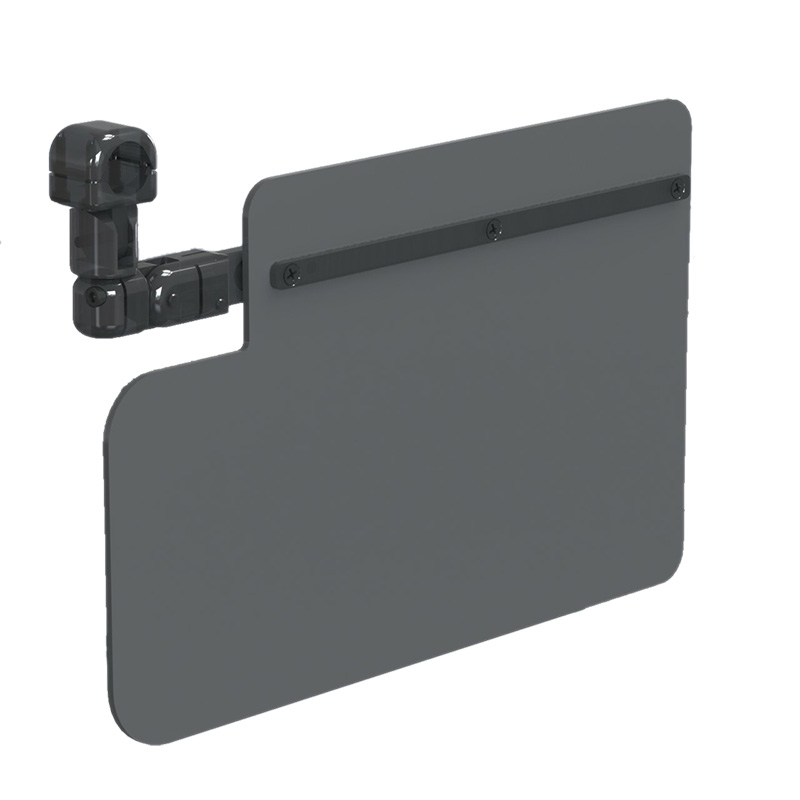

PA-12, PA-14, PA-18, Top Cub, CC11
S/N 00088 and later

STC and Installation Instructions
13-22984

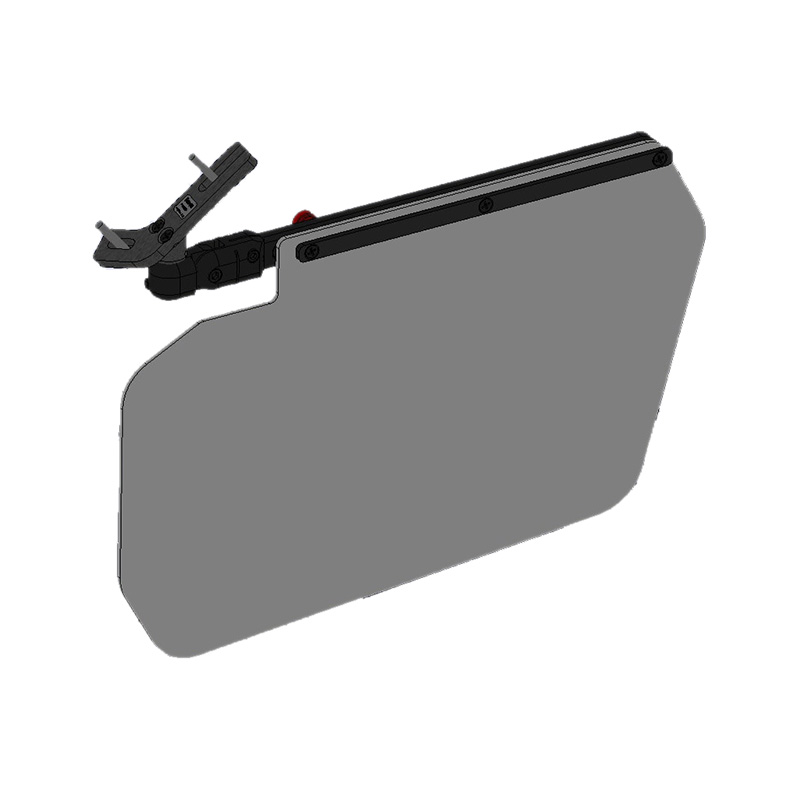

PA-31 Chieftain / Navajo

NORSEE Approval Document
13-24007
Cessna

Description

Specifications
Part No.

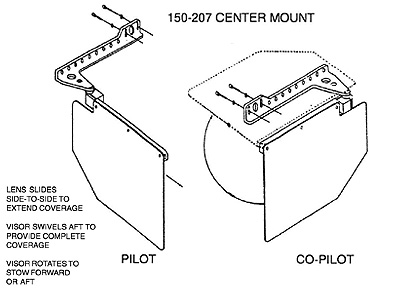

1980 and later - 170's to 206's (except 177's) Center Mount

Click Image to enlarge
Approx. lens size: 9" x 15"

Installation Instructions,
Application Data
7629*

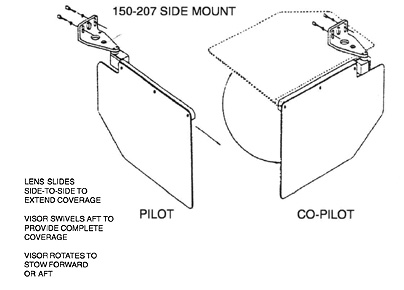

All 150's and 152's. Prior to 1980 - 170's - 206's (except 177's) Side Mount

Click Image to enlarge
Approx. lens size: 9" x 14"

Installation Instructions,
Application Data
7006*
Cessna 180 Third Axis (1981& Later)

Click Image to enlarge
Approx. lens size: 9" x 14"

Installation Instructions,
Application Data
13-03174*

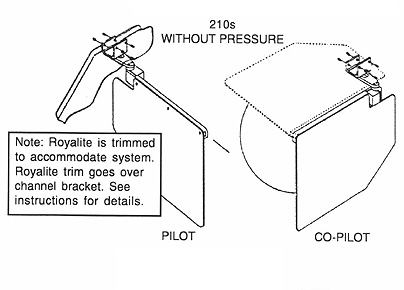

210's w/o Air Conditioning
Non-Pressurized

Click Image to enlarge
Approx. lens size: 12" x 10"

Installation Instructions,
Application Data

Pressurized

Click Image to enlarge
Approx. lens size: 12" x 10"

Installation Instructions,
Application Data
7152*

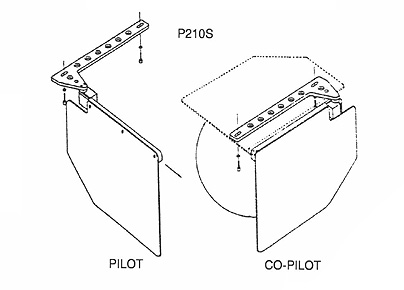

P210's and 210's with Air Conditioning
7426*

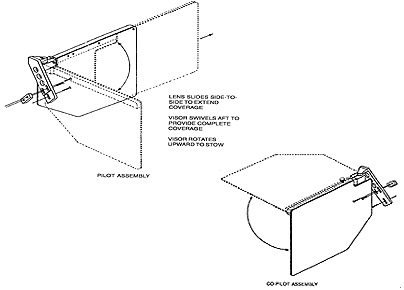

177's

Click Image to enlarge
Approx. lens size: 9" x 14"

Installation Instructions,
Application Data
7582*

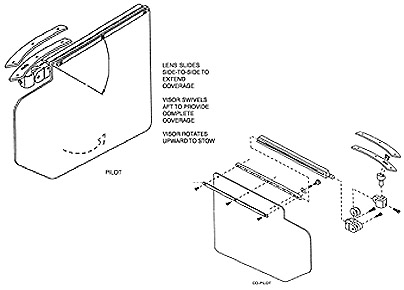

T303

Click Image to enlarge
Approx. lens size: 9" x 14"

Installation Instructions,
Application Data
13-01928*

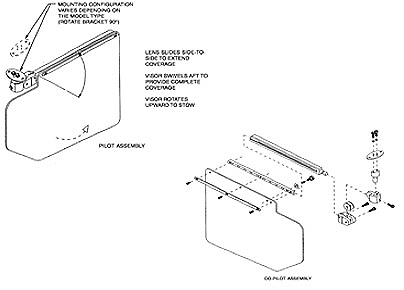

310's and 340s with "ball joint" style visors mounted with 2 screws.

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
7687*

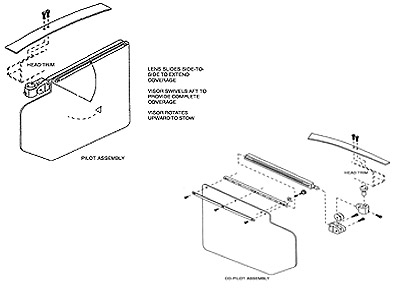

337's

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-01308*

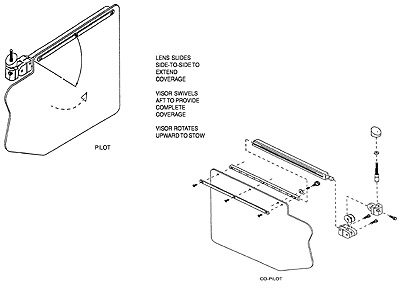

320's

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-01311*

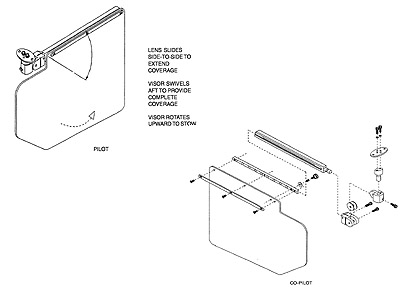

400's

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-01312*

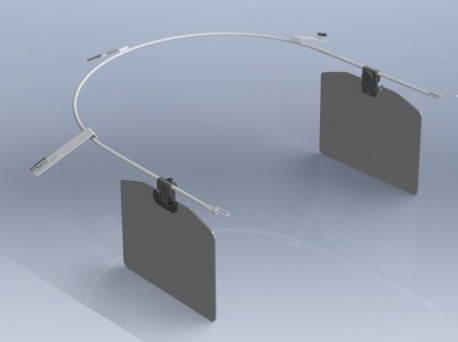

Citation I/ II/ V/ 500

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-14938
Citation 500's

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-14939

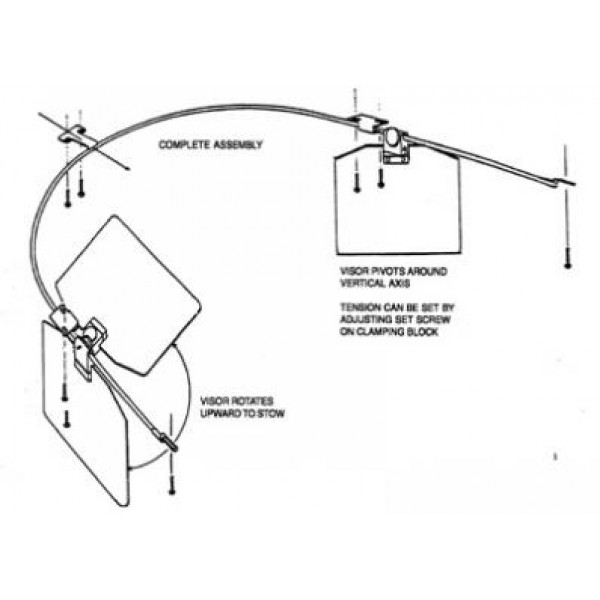

Citation III/ VI

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-14941

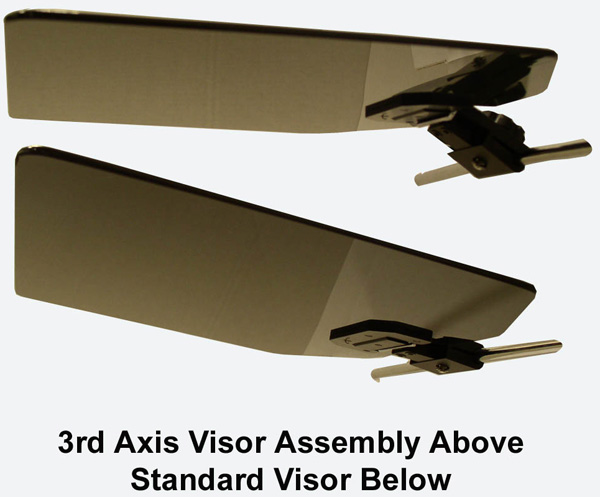

Citation 3rd Axis

Click Image to enlarge
Approx. lens size: 10” x 12”
13-14940
Mustang

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-14942

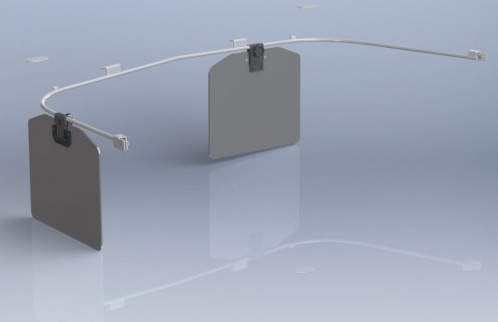

400 Series

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
13-14937
Mustang Visor Assembly 3rd Axis

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
13-15008
Commander

Description

Specifications
Part No.

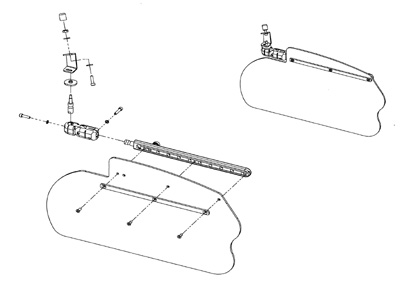

114

Click Image to enlarge
Approx. lens size: 9” x 15”,
Installation Instructions
,
Application Data
13-03328*

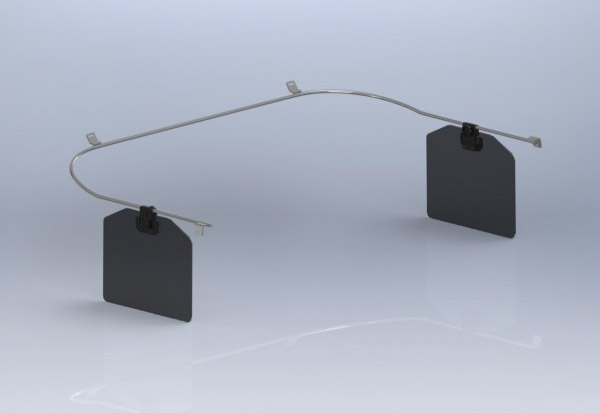

Monorail

Click Image to enlarge
Approx. lens size: 9" x 11",
Installation Instructions
,
Application Data
13-14850
Grumman

Description

Specifications
Part No.

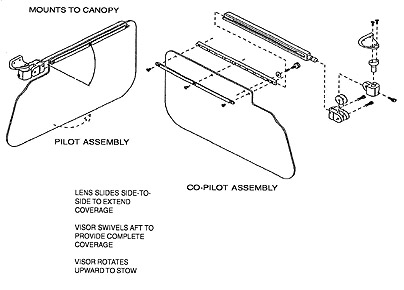

Cheetah

Click Image to enlarge
Approx. lens size: 8” x 14-1/2 ”,
Installation Instructions
,
Application Data
13-01313*
RV

Description

Specifications
Part No.

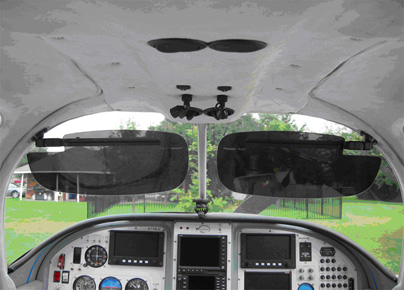

Rosen Sun Visor Set - RV-10

Click Image to enlarge
Approx. lens size: 8" x 15.5"

Installation Instructions
13-05695*
Rosen Sun Visor - Pilot Side 13-05696
Rosen Sun Visor Set - Copilot Side 13-05697
Maule

Description

Specifications
Part No.

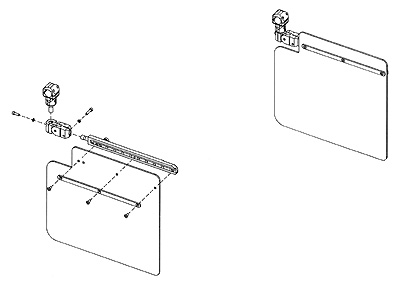

Maule

Click Image to enlarge
Approx. lens size: 11” x 12”,
Installation Instructions
,
Application Data
13-02471*
Rockwell

Description

Specifications
Part No.
Rockwell Commander 112 / 114

Click Image to enlarge
Approx. lens size: 9” x 15”,
Installation Instructions
,
Application Data
13-03328
Cirrus

Description

Specifications
Part No.

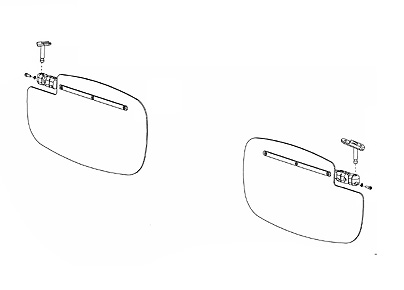

Cirrus

Click Image to enlarge
Approx. lens size: 8” x 15.5”,
Installation Instructions
,
Application Data
13-03258*
Lancair

Description

Specifications
Part No.

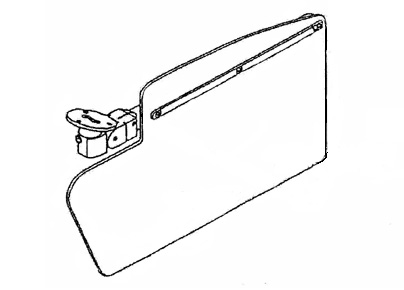

Lancair IV

Click Image to enlarge
Installation Instructions
,
13-01934*
Homebuilders

Description

Specifications
Part No.

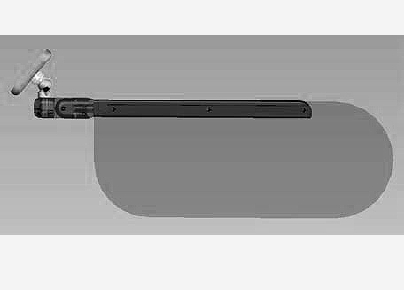

Homebuilders Universal Surface Mount

Click Image to enlarge
Installation Instructions
,
13-03175*
Homebuilders Universal Tube Mount

Click Image to enlarge
Installation Instructions
,
13-03176*
Bell

Description

Specifications
Part No.
Jet Ranger with Air

Click Image to enlarge
Installation Instructions
,
Application Data
13-14933

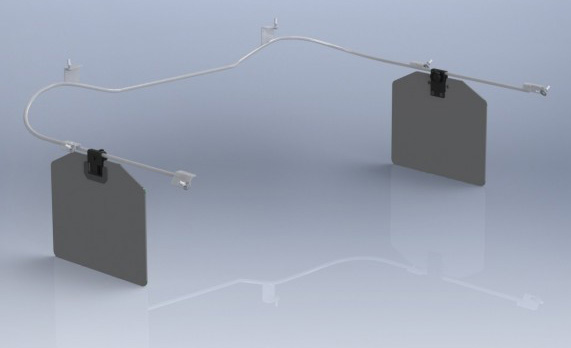

Jet Ranger without Air

Click Image to enlarge
I
nstallation Instructions,
Application Data
13-14931

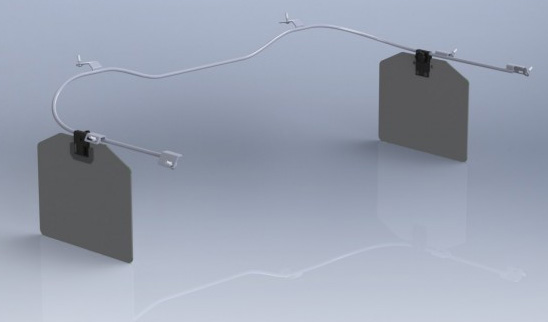

Long Ranger

Click Image to enlarge
Installation Instructions,
Application Data
13-14932

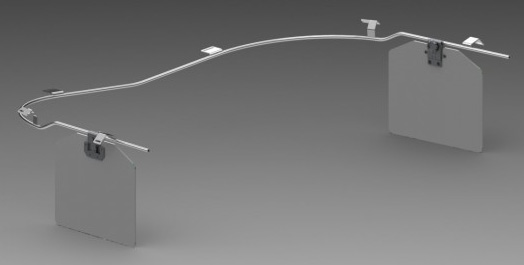

222

Click Image to enlarge
Installation Instructions,
Application Data
13-14934
BK

Description

Specifications
Part No.

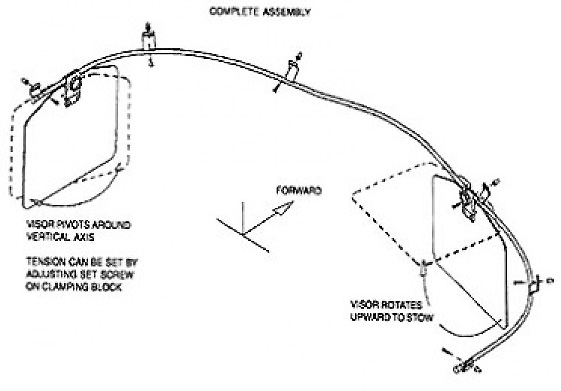

117

Click Image to enlarge
Installation Instructions,
Application Data
13-14935
BAC

Description

Specifications
Part No.

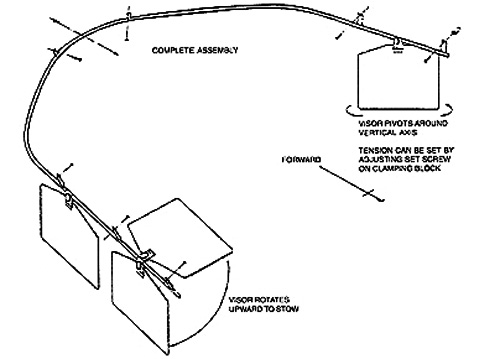

1/11

Click Image to enlarge
Installation Instructions
13-14936
Challenger

Description

Specifications
Part No.

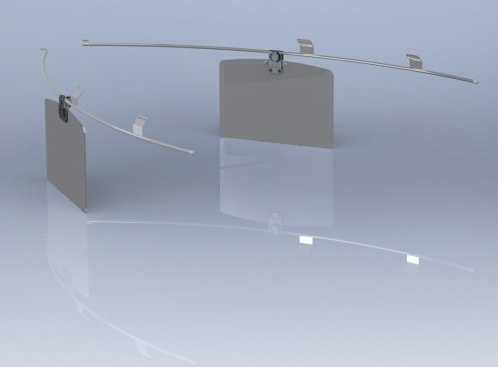

600 601 604

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15009

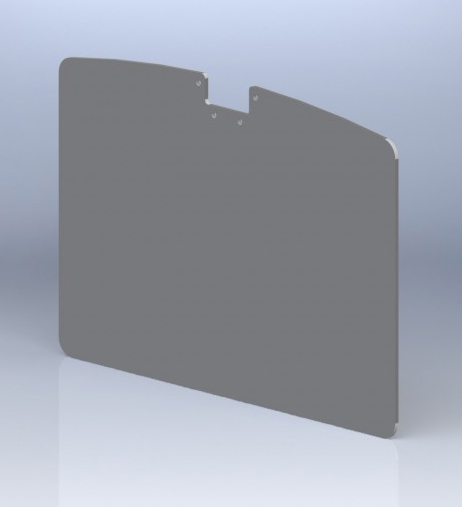

600 601 604 Replacement Lens

Click Image to enlarge
Approx. lens size: 10” x 12”,
13-15010
600 601 604 Visor Assembly Only
13-15011
Falcon

Description

Specifications
Part No.

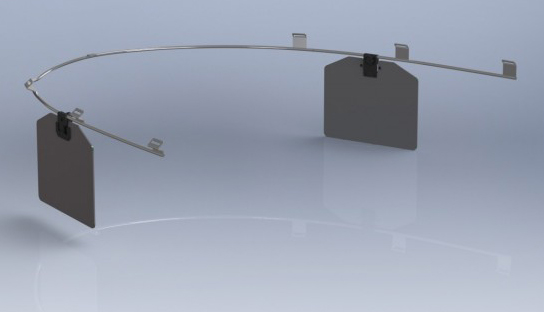

20 Monorail System with Visors

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15012

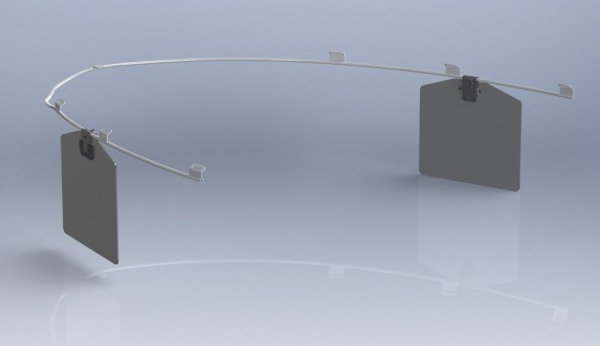

50 200 Monorail System with Visors

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15016
Gulfstream

Description

Specifications
Part No.

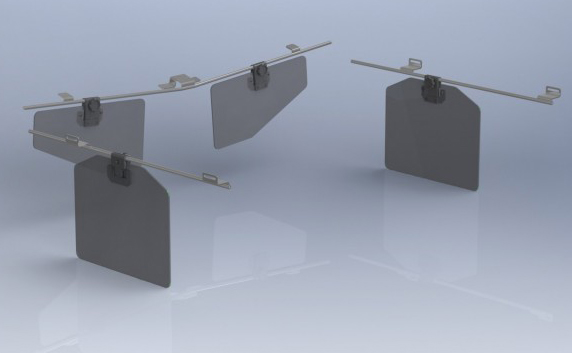

I/II Monorail System with Visors

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15017

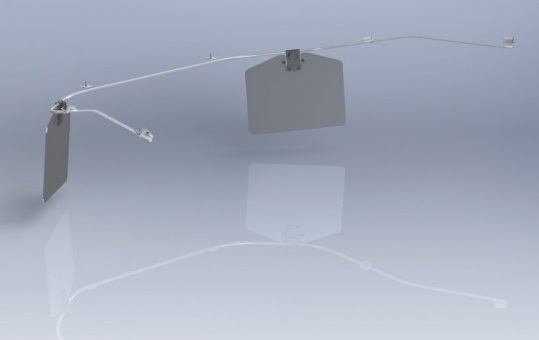

III Monorail System with Visors

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15018

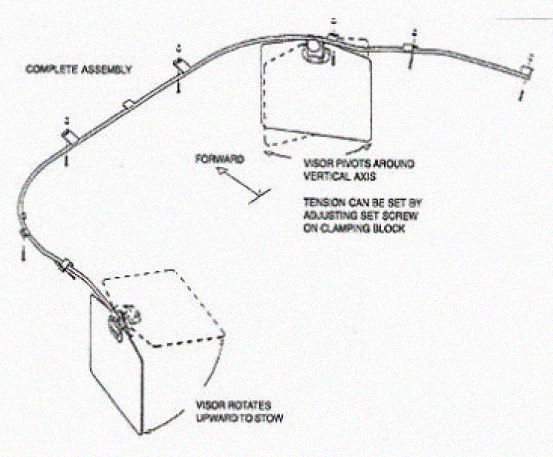

IV Long Beach Monorail System with Visors

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15019
IV Savannah Monorail System with Visors

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15020
IV Kansas City Monorail System with Visors

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15021

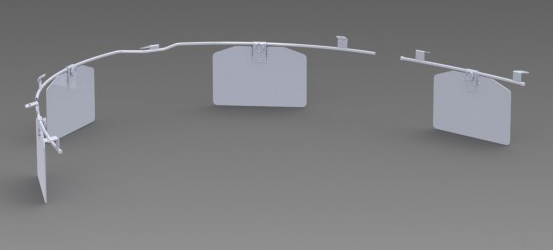

200 Galaxy Monorail System with Visors

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15022
Hawker Beechcraft

Description

Specifications
Part No.

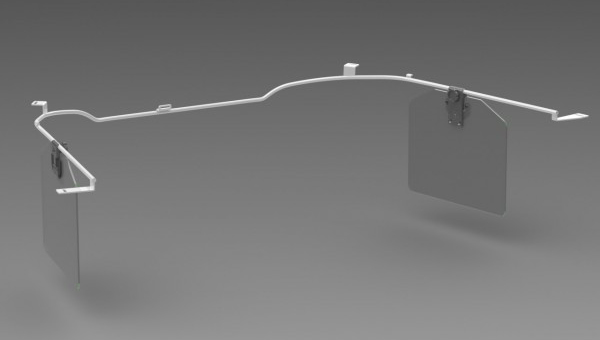

700 Monorail System with Visors

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15023

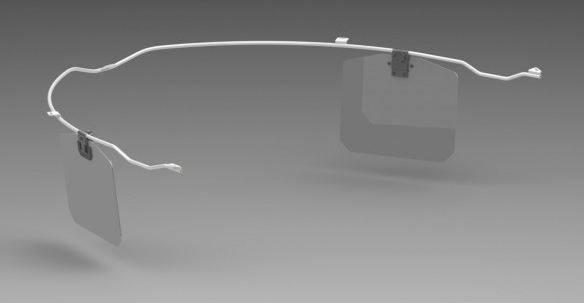

750 800 850 800XP 850XP 900XP 1000
Monorail System with Visors

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15024
Learjet

Description

Specifications
Part No.

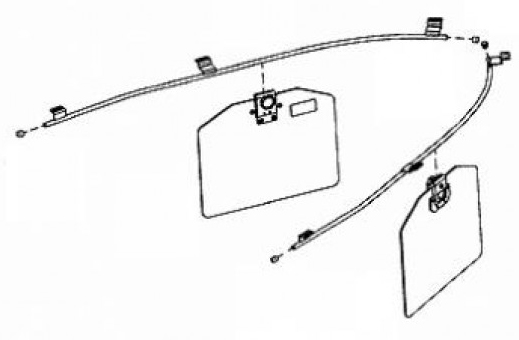

Monorail with Visors (Standard Size)

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15025
Monorail with Visors (Small Size)

Click Image to enlarge
Approx. lens size: 10” x 12”,
Installation Instructions
,
Application Data
13-15026
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Awesome upgrade to our Maule!

Michael C Verified Purchase

Rosen Sunvisor System - Maule

May 15, 2024

Replacing the OE original equipment, visors with a set of Rosen visors that give you twice the protection, and steal the ability to see through is absolutely worth every penny.

Dan D Verified Purchase

Rosen Cessna 150-207 Side Mnt

March 26, 2024

These are really nice and worked perfectly in my 1968 PA28-235. The kit comes with the 3rd axis articulation so you dont need the update kit.

David W Verified Purchase

Rosen Sunvisor Piper Cherokee Center Mount

March 23, 2024

Great product, and very happy with the organised shipping and delivery.

Wayne G Verified Purchase

Rosen King Air Visor Fixed Mnt

March 14, 2024

John T Verified Purchase

Rosen Beech With Third Axis

March 5, 2024

Great product, good value for the money, and easy install.

Anthony K Verified Purchase

Rosen Sunvisor Navajo Chieftain Nsa System

February 28, 2024

Great product, Easy fitting as per the instructions. As everything now. too expensive,

Peter F Verified Purchase

Rosen Cessna 150-207 Center Mt

February 17, 2024

Very high quality as you would expect from Rosen! Easy install and they look and work great! I highly recommend this product!

Marty L Verified Purchase

Rosen Sunvisor System RV-10

February 3, 2024

Hi quality. One of the set screws did not fit the thread hole. This might have been the aircraft not the equipment hardware. Perfect fit for my C-182.

Anthony S Verified Purchase

Rosen Cessna 150-207 Side Mnt

January 26, 2024

Wouldn’t have an airplane without Rosen’s

Michael R Verified Purchase

Rosen Sunvisor Piper Cherokee Center Mount

November 23, 2023

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the pilot's side only be purchased as a replacement? My customer has cracked the pilot's side.

Yes, per the manufacturer, replacement "lens" can be purchased alone. They are special order. Vendor requests customer verify that it is in fact a Rosen System (must say Rosen on the lens) before placing order. For current pricing and lead time, please call into 877-477-7823 or email info@aircraftspruce.com. Must have specific model info ready when requesting special order pricing and lead time.

Q: What is the weight of a pair of RCS300-2 visors, Part # 7629? Since a 337 is required for these it would be nice to have the weight provided.

This sun visor system weighs approximately 2.16 lbs (both visors combined).

Q: Are the Rosen Sun Visor Systems listed here for the visors only, or is it for the whole system with the rails included?

The systems include the visor and mounting brackets.

Q: Part 7687 is for a Cessna 310. When I order quantity 1, will there be supplied a kit of 2 visors?

Yes, these are priced and sold as a pair.

Q: Part 7687 says visors only. Is this with the mounting brackets (hardware) included? Or the visors with hardware only?

Per the installation instructions, part number 7687 will have the brackets, visors and four screws.

Q: For the 337, what is the weight of part number 13-01316?

Each visor weighs approximately 1.03 lbs. This part comes with two visors, pilot and co-pilot.

Q: Is a signed copy of the approved STC paperwork included when purchasing the visors?

Yes. A copy of the STC is included in the box.

Q: Cessna 172N 1979, will these work?

Yes, Part# 7006 should work great in that aircraft.

Q: Is there an attachment for ipad to rosen visor rail on an aircraft?

See Part# 13-20667

Q: Could you please advise which p/n will be applicable for Piper PA-30 Twin Comanche?

Part# 7809 looks to be the correct version for the PA30.

View in Catalog

View Image View in Catalog
