Home / Rotax Engines & Parts / Parts / Two Stroke Parts / Accessories / Liquid Radiator /Rotax 582 Ul 99/17 Engine 2-Piece Radiator Set For Inverted Engine Installation Parts
Main Image

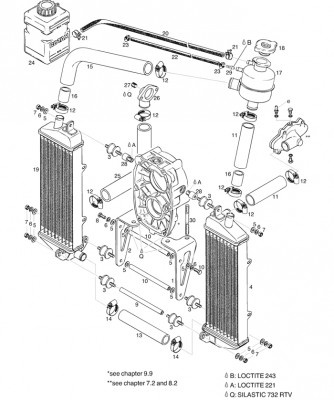

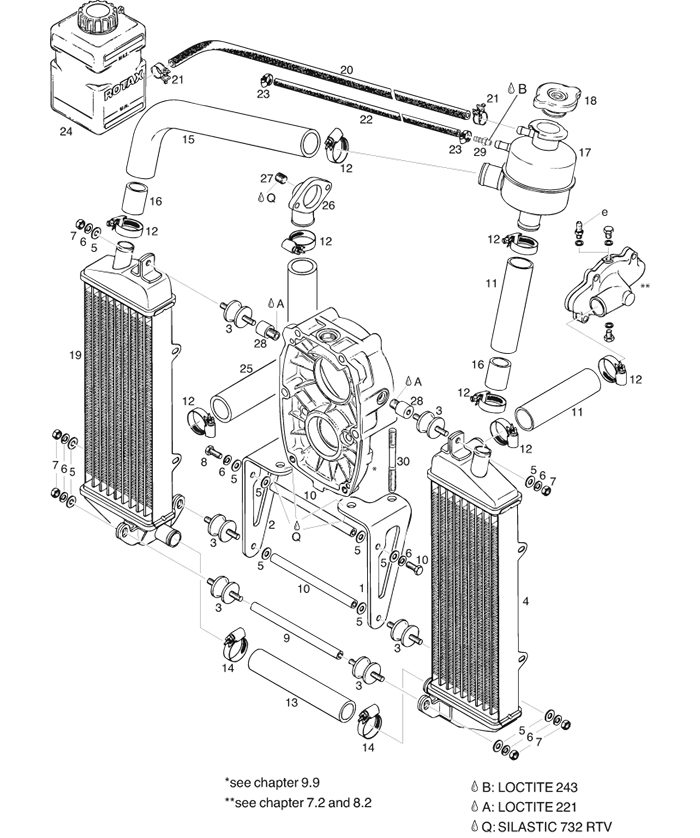

Rotax 582 Ul 99/17 Engine 2-Piece Radiator Set For Inverted Engine Installation Parts

0 Reviews 0 Answered Questions
From $0.31 to $37.79
Prices below incude GST
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty Req. PN Price Buy
8241-186 HEX.SCREW M6X161
15-00164
$0.34
Quantity
14951-870 CLAMP 16-251
15-03442
$4.30
Quantity
20956-260 LOW PRESSURE HOSE GC 8X12NBf
15-03520
$41.46
Quantity
22860-300 LOW PRESSURE HOSE GC 6X11NBf
15-01693
$41.57
Quantity
23951-898 CLAMP 7-112
15-03445
$6.23
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   cooling surface 3,2 dm2 (49,6 in2)
  • b   from engine S/N: 3,916.823
  • c   up to engine S/N: 4,916.822
  • d   for evacuation of air, at installation of engine with spark plugs down.
  • e   longer studs for 582 UL mod. 90 and 618 UL
  • f    in a roll.
  • g   no longer available


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
582
m90
582
m99
618
Price
19
RADIATOR WITHOUT FILLER CAP
1ag
1ag
1ag
NLA
20
RADIATOR HOSE 1000 MM
2
2
2
*
22
LOW PRESSURE HOSE 280 MM
2
2
2
*
