Home / Rotax Engines & Parts / Parts / Two Stroke Parts / 503UL /Rotax 503 Ul Engine Oil Pump | Oil Pump Drive Parts
Main Image

Rotax 503 Ul Engine Oil Pump | Oil Pump Drive Parts

0 Reviews 0 Answered Questions
From $0.13 to $264.15
Prices below incude GST

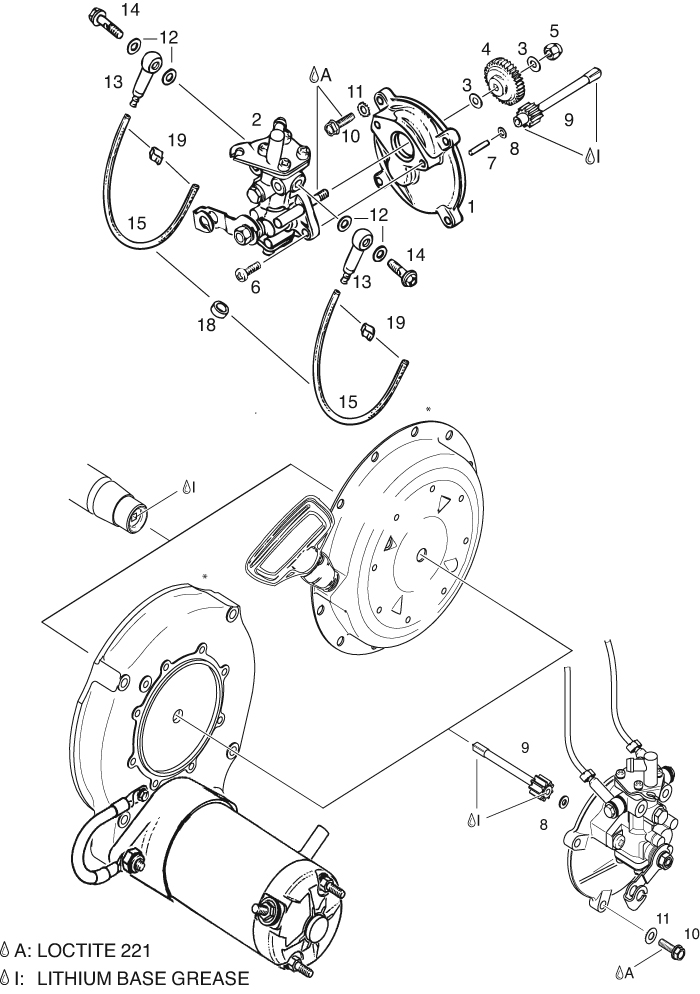

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty PN Price Buy
1910-160PUMP MOUNTING FLANGE1
15-02663
$75.45
Quantity
2886-096OIL PUMP ASSY.,1e
15-02290
$290.56
Quantity
3927-945WASHER 6, 2/12/12
15-02999
$1.04
Quantity
7832-260NEEDLE PIN B4X17, 81
15-00977
$1.21
Quantity
8244-073WASHER 4,31
15-00228
$0.14
Quantity
9935-970GEAR 9 T.1
15-03115
$13.18
Quantity
9935-972GEAR 9 T.1a
15-03116
$13.18
Quantity
10941-925TAPTITE SCREW M5X164
15-03287
$0.87
Quantity
14241-830BANJO BOLT M6X162
15-00191
$5.05
Quantity
18960-700RUBBER RING 7X1,5X52
15-03662
$1.17
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   For electric starter configuration magneto-side or pto side.
  • b   in a roll
  • c   for 1-carburetor version
  • d   for 2-carburetor version
  • e   retrofitable from engine S/N: 4,103.549


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

  • *960-040 SOLD IN 1 METER LENGTHS. FOR CORRECT LENGTHS NEEDED, SEE DESCRIPTION OF INDIVIDUAL PARTS BELOW.

  • No.
    Status
    Part No.
    		Descriptions
    Qty.
    15
    960-040
    		OIL LINE 335 MM
    ARbc
    16
    960-040
    		OIL LINE 380 MM
    ARbd
    17
    960-040
    		OIL LINE 380 MM
    ARbd
