Red Box 737 Rivet Gun Kit Includes Bucking Bars

Size:
2X Rivet Gun Kit3X Rivet Gun Kit 4X Rivet Gun Kit
Price Includes GST
Quantity
Add to Wishlist

Overview

This popular rivet gun set is used in aircraft manufacturing plants worldwide. The "X" series rivet gun has an incomparable teasing triggers, allowing you to slowly begin riveting without damaging the skin. It has a lightweight aluminum handle with powder coat finish for comfort. Also features a hardened and precision ground steel piston, cylinder and spool valve for long life. The brass regulator and air tool fitting are directly assembled to the rivet gun for your convenience.

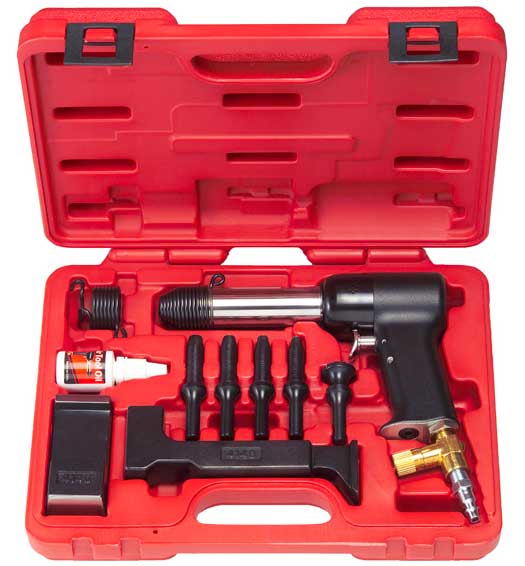

Includes:

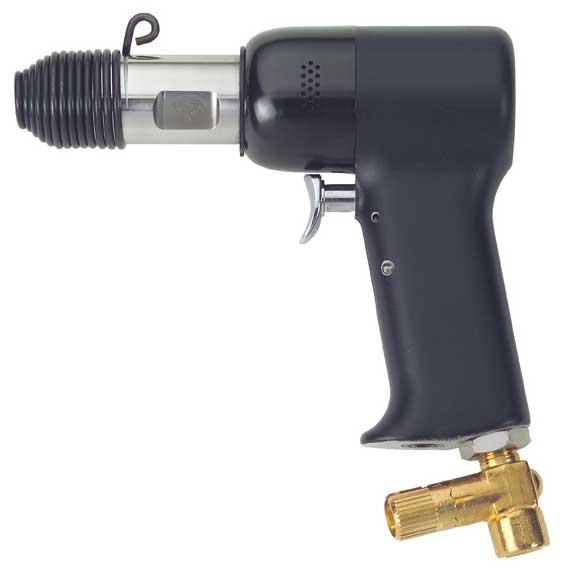

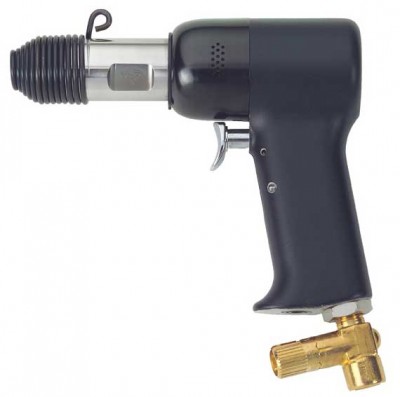

  • 1pc Rivet Gun (choose size 2X, 3X or 4X)

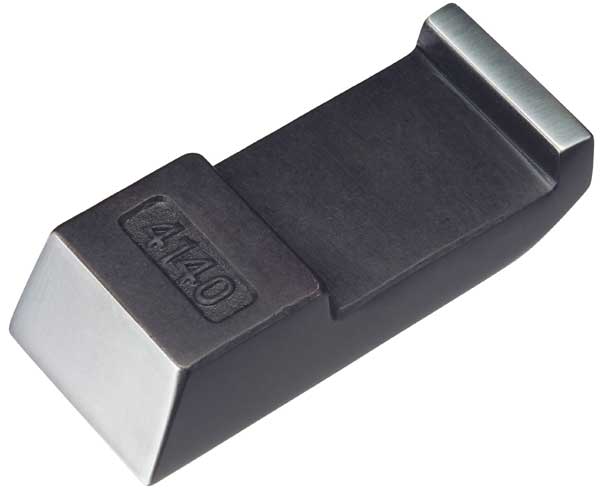

  • 1pc Type A -Bucking Bar

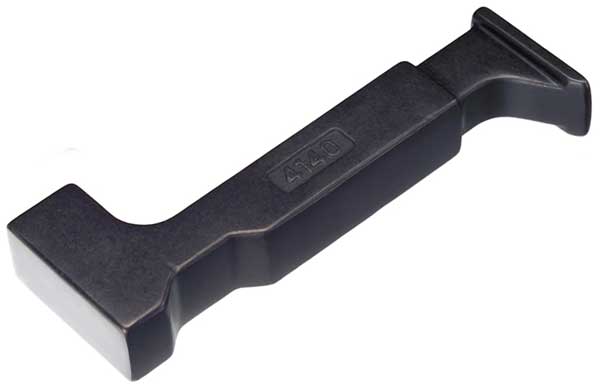

  • 1pc Type B -Bucking Bar
  • 1pc Brass Regulator
  • 1pc Air Tool Fitting
  • 4pcs 3.5" Straight Rivet Set (3/32", 1/8" 5/32", 3/16")
  • 1pc Standard Flush Set (Surface: 1", Length: 2.5")
  • 1pc Beehive Spring
  • 1pc Retainer Spring
  • 1pc Marvel Air Tool Oil (Made in USA)

Specifications

Rivet Gun Size Length BPM Capacity Bore Shank Stroke Weight
2X 6-11/16" 2580 1/8" 1/2" .401" 2-1/4" 3.1
3X 7-5/16" 2160 3/16" 1/2" .401" 2-7/8" 3.2
4X 8-1/2" 1740 1/4" 1/2" .401" 3-1/16" 3.4

Reviews

David I Verified Purchase

Red Box 737 4X Rivet Gun Kit

October 19, 2023

This is a really well made set, with good bucking bars and various tips. Happy with it.

John W Verified Purchase

Red Box 737 3X Rivet Gun Kit

March 1, 2022

Nice kit. Works great.

Edward B Verified Purchase

Red Box 737 2X Rivet Gun Kit

November 20, 2021

Sturdy and performs well a good kit for what we needed.

Dana H Verified Purchase

Red Box 737 2X Rivet Gun Kit

August 18, 2021

Even better than the Cleveland tool 3x. Love it

Dirk C Verified Purchase

Red Box 737 3X Rivet Gun Kit

August 4, 2021

I am very pleased with this rivetgun, its light but solid. The pushbutton is smooth and everything fits fine, hows its stands up time i have to see, i own it just for two weeks.

Anthony K
December 14, 2020

This kit is just what I wanted to rebuild my 1975 air stream. Tried the gun out and just was amazed on how simple it was in buck riveting back my aluminum panels. Thanks aircraftspruce.ca , I have just adopted your store , thanks again. Ross

Ross
December 9, 2020

Thank you for the quick shipping. I just love this kit.

Ross R
December 4, 2020

This is the same gun that I learned to set rivets with that I borrowed. It worked so nice I bought this one for myself!!

Edward H
November 21, 2020

Nice set. I am returning it because I need the 4x. Order screen defaults to the 2x and I must not have caught it.

George B
July 21, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What do the 2X, 3X, and 4X refer to in the drop down menu for these rivet gun kits?

That is in reference to the power of the gun, and recommended max diameter of the rivet that can be bucked. 2X is up to 1/8" diameter, 3X up to 3/16", and 4X up to 1/4". A regulator is commonly used to lower a larger powered gun to buck smaller diameter rivets.

Q: How big of an air compressor do I need? My tank is only a few gallons.

You should be find just using a few gallons worth in a tank. It doesn't take much to power this rivet gun.
