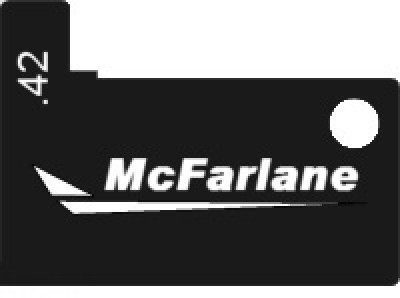

Seat Rail Wear Gauge For Cessna Aircraft

$63.53/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 05-04428
MFR Model# GAUGE SR1

Overview

For checking seat rail wear limits as per FAA Airworthiness Directive 2011-10-09, Effective 06/17/2011

The Seat Track Wear Gauge is designed to check for seat rail pin engagement hole wear on Cessna Aircraft, as required by FAA AD 2011-10-09. This gauge is designed to measure the actual radius wear near the seat stop holes and allows for the .020 upper surface wear permitted by the AD.


Download the Seat Track Gauge Instruction (PDF)

Reviews

Great tool. Works well.

Rick B Verified Purchase

Seat Rail Wear Gauge SR1

May 14, 2024

A great tool from McFarlane, as always.

Paul C Verified Purchase

Seat Rail Wear Gauge SR1

February 7, 2023

A great tool from McFarlane, as always.

Paul C Verified Purchase

Seat Rail Wear Gauge SR1

February 7, 2023

Once I figured out how to use this, it is simple and effective to use. Read the description of how to use this and understand the picture/drawing.

William B Verified Purchase

Seat Rail Wear Gauge SR1

July 11, 2022

The gauge is about the size of a quarter and could be lost when sorting through an order! The gauge works as advertised, but I found it easier to USA a camera so I didn’t have to be eye level with the rail.

Robert S Verified Purchase

Seat Rail Wear Gauge SR1

December 1, 2021

Stay away from this gauge. I maintain 13 C172s that operate over the lower 48 states, Ive received calls from several mechanics using this gauge saying that the seat rails fail the inspection. I ask them to go back and measure with calipers per the AD and then the rail passes. Spruce does sell a better product for this test Part# 12-02861.

Fly B
April 2, 2020

Instructions are not good. Waste of money.

Dutch A
January 17, 2019
