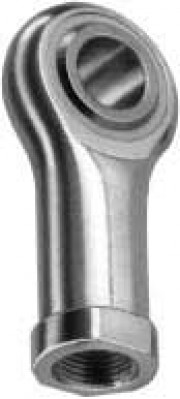

New Surplus Hf Female Threaded Rod End Bearing Hfl-3M

$54.84/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 04-03454
MFR Model# REFL-3M

Overview

  • Outer Member: Carbon Steel, with protective coating for corrosion resistance.
  • Ball: 52100 Alloy steel, heat treated, and chrome plated.
  • Inserts: Brass 16 size has a one piece carbon steel race.

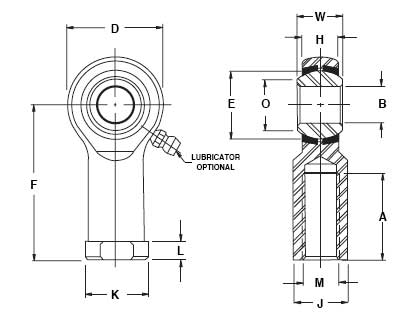

Specifications Drawing



PN B W H D F A M E O K L Max Radial Load Weight
HFL-3M .1900 .312 .250 .625 1.062 .562 .1900-32 .437 .306 .406 .187 1850 .03

Reference Chart

Reviews

This is not 10-32 thread.

John S Verified Purchase

ROD END BEARING HFL-3M NEW SURPLUS

July 18, 2024

Seems like a quality product, but the thread pitch is not the 32 tpi that I needed.

Ronald J Verified Purchase

ROD END BEARING HFL-3M NEW SURPLUS

August 3, 2023
