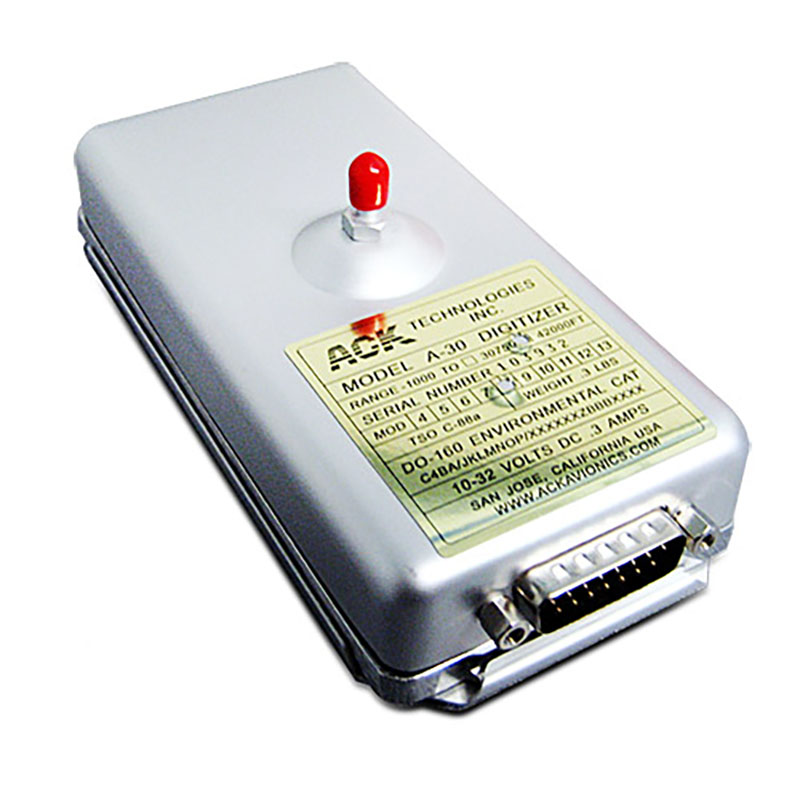

- Photo may represent series and not specific product
- SHARE
ACK A30.9 (Mod 9) Altitude Encoder FAA TSO
MFR Model# A-30.9
- JUMP TO
- Overview
- Warranty
- Reviews
- Q&A
- View in Catalog
Overview
| The ACK A30.9 (Mod 9) encoder is ideal for use with most GPS and TAWS systems, and works well with most of today's mode S transponders. Feature Gray code in 100ft. increments and RS-232 in 10 or 100 feet increments. Furnished with a 4 ft. harness, pre-wired jack, quick release mounting tray, fittings, static line, and installation manual. Reports altitude to 42,000 ft. Three Year Warranty. |
Warranty
- Avionics products manufactured by ACK Technologies, Inc. are warrantied against defects in materials and workmanship for a period of three years from their manufacture date. This warranty is limited exclusively to repair or replacement of the E-04 ELT and associated parts which were manufactured by ACK Technologies, Inc. the defective parts must be returned freight prepaid to our manufacturing facility. This warranty does not include repair or replacement of any part that has been improperly used, installed or physically damaged. This warranty does not cover any damage caused by chemical exposure. Discharge of the ELT lithium battery is not covered by this or any other warranty. Except as provided herein ACK Technologies, Inc. makes no express warranties, and any implemented warranty of merchantability of fitness for a particular purpose is limited in its duration to the duration of the written limited warranties set forth herein. ACK Technologies, Inc. shall not be liable for any direct, indirect, special or consequential damages arising from the use or misuse of this product. Except as provided herein no employee, agent, dealer, or other person is authorized to give any warranties of any nature on behalf of ACK Technologies, Inc. YOU MAY HAVE ADDITIONAL LEGAL RIGHTS WHICH VARY FROM STATE TO STATE
Reviews
love it great product
Verified Purchase
ACK A-30.9 Encoder RS232 42K
Excellent
Verified Purchase
ACK A-30.9 Encoder RS232 42K
Excellent
Verified Purchase
ACK A-30.9 Encoder RS232 42K
Excellent
Verified Purchase
ACK A-30.9 Encoder RS232 42K
Excellent
Verified Purchase
ACK A-30.9 Encoder RS232 42K
Excellent
Verified Purchase
ACK A-30.9 Encoder RS232 42K
Perfect.
Verified Purchase
ACK A-30.9 Encoder RS232 42K
Very simple replacement for my older / defective encoder. Calibration was spot on.
Verified Purchase
ACK A-30.9 Encoder RS232 42K
This was orders for a new ADS-B installation paired to a new Stratus ESG and replacing a -3 version of the same model. The -9, with the RS232 connection, made all the other wiring unnecessary. Installation was a piece of cake.
Verified Purchase
ACK A-30.9 Encoder RS232 42K
This newer mod of a classic encoder features RS232 output used for adsb-in, etc. nice to have to rewire everything to simply add RS232 to an existing ACK encoder installation
Verified Purchase
ACK A-30.9 Encoder RS232 42K
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The ACK A30.9 encoder is 6" long, 2.65" wide, and 1.3" high.
The ACK 30.9 encoder will work with any transponder. It is a blind encoder, that comes with a 4' harness. You will be required to crimp the corresponding pins on the other end of the harness to plug into your transponder. We do offer a custom harness for this connection, contact sales for a quote.
The connection in the center of the unit is for a static line connection.
The mod A30.9 provides Gray code and two separate RS 232 outputs at 10 foot resolution. Up to 3 devices can be connected to each RS 232 output.
No, a Manufacturer C of C must be requested at time of purchase. This option is given at the check out screen.
Yes, the Stratus ESG is capable of both RS-232 and gray scale encoding.
Yes. The GTX 327 will accept an RS232 input from this encoder.
14VDC 160mA | 28VDC 220mA. Operation current 160mA typical.
PER ACK: The mod 9 can replace the AK-350, but they recommend the customer checking their pin out function to be safe.
Per the manufacturer, The model A-30 encoder Mod levels 0 through 9 utilize the same mounting tray and the same 15 pin Sub D connector and are directly interchangeable between mod levels.
